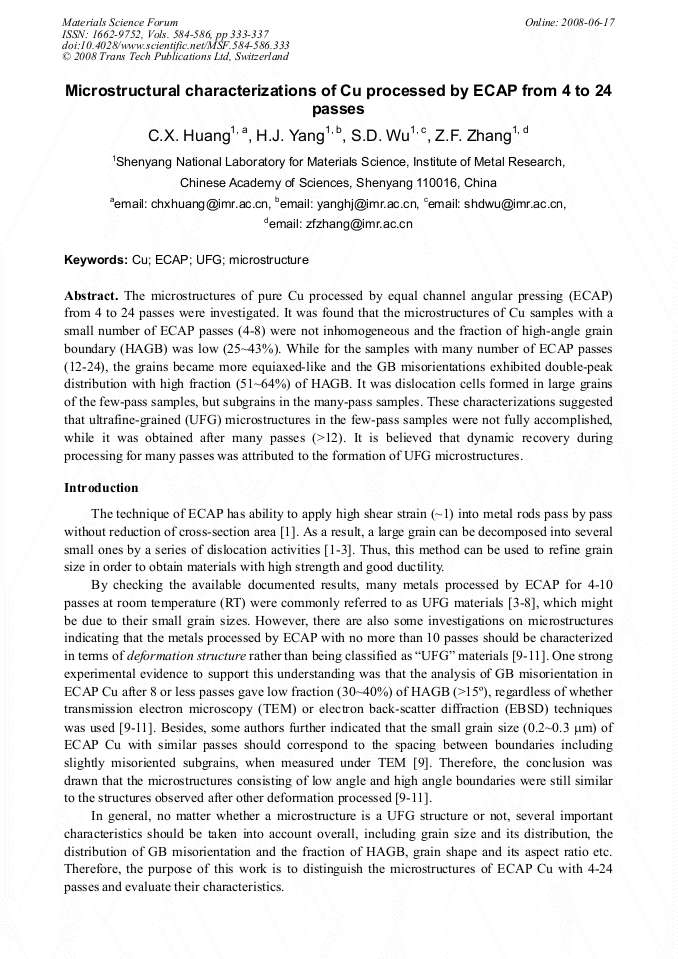

Microstructural Characterizations of Cu Processed by ECAP from 4 to 24 Passes
The microstructures of pure Cu processed by equal channel angular pressing (ECAP) from 4 to 24 passes were investigated. It was found that the microstructures of Cu samples with a small number of ECAP passes (4-8) were not inhomogeneous and the fraction of high-angle grain boundary (HAGB) was low (25~43%). While for the samples with many number of ECAP passes (12-24), the grains became more equiaxed-like and the GB misorientations exhibited double-peak distribution with high fraction (51~64%) of HAGB. It was dislocation cells formed in large grains of the few-pass samples, but subgrains in the many-pass samples. These characterizations suggested that ultrafine-grained (UFG) microstructures in the few-pass samples were not fully accomplished, while it was obtained after many passes (>12). It is believed that dynamic recovery during processing for many passes was attributed to the formation of UFG microstructures.
Yuri Estrin and Hans Jürgen Maier
C. X. Huang et al., "Microstructural Characterizations of Cu Processed by ECAP from 4 to 24 Passes", Materials Science Forum, Vols. 584-586, pp. 333-337, 2008
