A-TIG Welding of a Stainless Steel

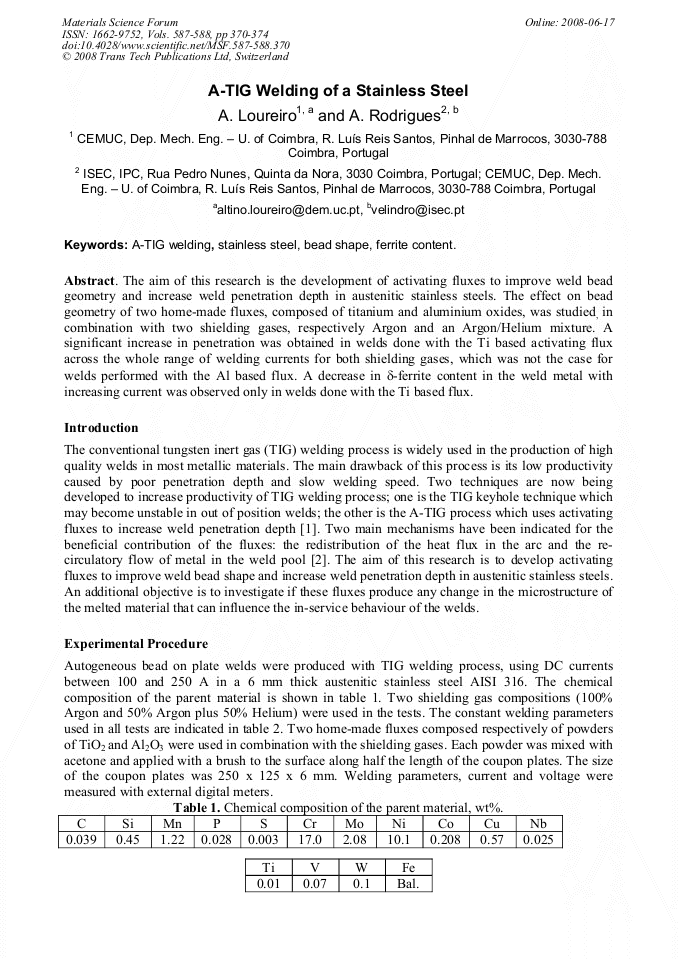

Article Preview

The aim of this research is the development of activating fluxes to improve weld bead geometry and increase weld penetration depth in austenitic stainless steels. The effect on bead geometry of two home-made fluxes, composed of titanium and aluminium oxides, was studied, in combination with two shielding gases, respectively Argon and an Argon/Helium mixture. A significant increase in penetration was obtained in welds done with the Ti based activating flux across the whole range of welding currents for both shielding gases, which was not the case for welds performed with the Al based flux. A decrease in δ-ferrite content in the weld metal with increasing current was observed only in welds done with the Ti based flux.



Materials Science Forum (Volumes 587-588)

Edited by:

António Torres Marques, António Fernando Silva, António Paulo Monteiro Baptista, Carlos Sá, Fernando Jorge Lino Alves, Luís Filipe Malheiros and Manuel Vieira






A. Loureiro and A. Rodrigues, "A-TIG Welding of a Stainless Steel", Materials Science Forum, Vols. 587-588, pp. 370-374, 2008

Online since:

June 2008




In order to see related information, you need to Login.

In order to see related information, you need to Login.
