Creep of Si3N4 Based Ceramics for Thermo-Mechanical Applications

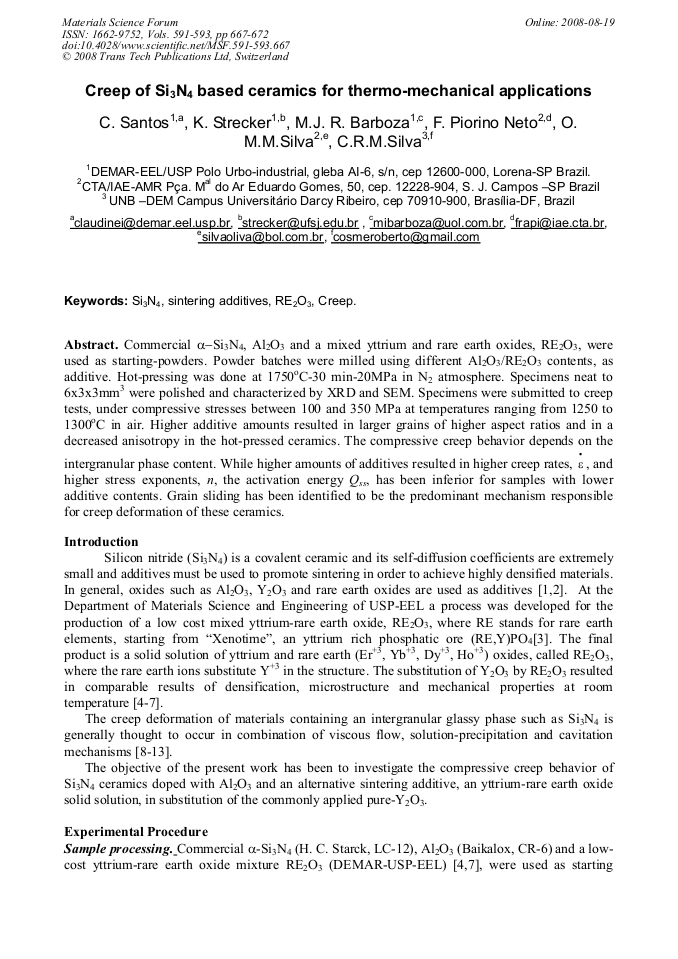

Article Preview

Commercial α−Si3N4, Al2O3 and a mixed yttrium and rare earth oxides, RE2O3, were used as starting-powders. Powder batches were milled using different Al2O3/RE2O3 contents, as additive. Hot-pressing was done at 1750oC-30 min-20MPa in N2 atmosphere. Specimens neat to 6x3x3mm3 were polished and characterized by XRD and SEM. Specimens were submitted to creep tests, under compressive stresses between 100 and 350 MPa at temperatures ranging from 1250 to 1300oC in air. Higher additive amounts resulted in larger grains of higher aspect ratios and in a decreased anisotropy in the hot-pressed ceramics. The compressive creep behavior depends on the intergranular phase content. While higher amounts of additives resulted in higher creep rates, • ε , and higher stress exponents, n, the activation energy Qss, has been inferior for samples with lower additive contents. Grain sliding has been identified to be the predominant mechanism responsible for creep deformation of these ceramics.



Materials Science Forum (Volumes 591-593)

Edited by:

Lucio Salgado and Francisco Ambrozio Filho




C. dos Santos et al., "Creep of Si3N4 Based Ceramics for Thermo-Mechanical Applications", Materials Science Forum, Vols. 591-593, pp. 667-672, 2008

Online since:

August 2008
