Opto-Mechatronics Integration for Metrology

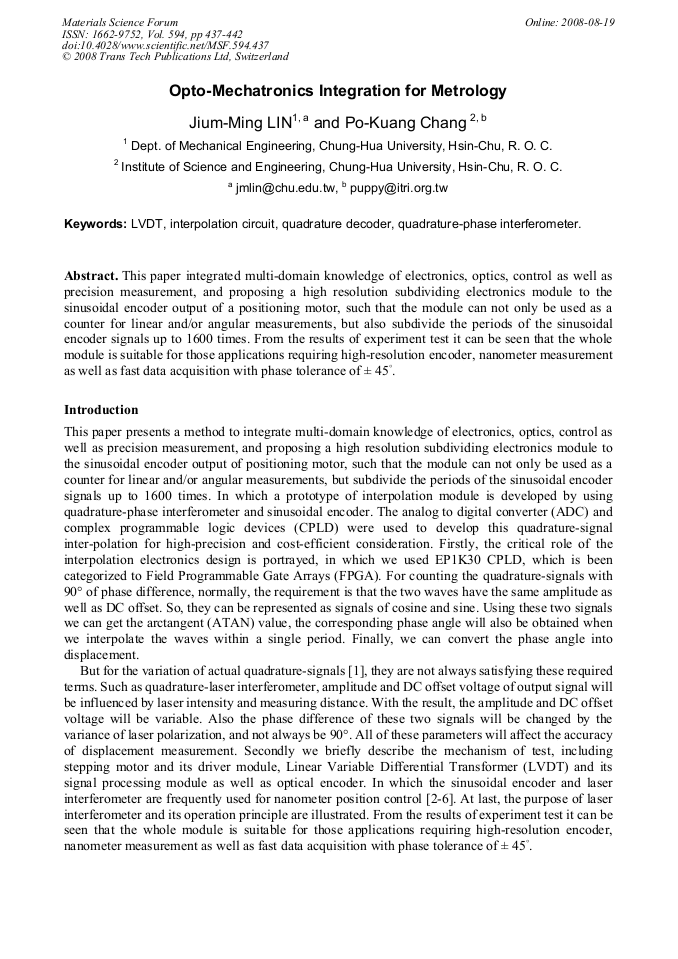

Article Preview

This paper integrated multi-domain knowledge of electronics, optics, control as well as precision measurement, and proposing a high resolution subdividing electronics module to the sinusoidal encoder output of a positioning motor, such that the module can not only be used as a counter for linear and/or angular measurements, but also subdivide the periods of the sinusoidal encoder signals up to 1600 times. From the results of experiment test it can be seen that the whole module is suitable for those applications requiring high-resolution encoder, nanometer measurement as well as fast data acquisition with phase tolerance of ± 45°.



Main Theme:

Edited by:

Sheng-Jye Hwang and Sen-Yung Lee




J. M. Lin and P. K. Chang, "Opto-Mechatronics Integration for Metrology", Materials Science Forum, Vol. 594, pp. 437-442, 2008

Online since:

August 2008




[1] E. Schwefel, and H. Johannes, Interpolation apparatus for digital electronic position measuring instrument, U. S. Patent 4, 225, 931. ( 1980).

[2] E. Schwefel, and H. Johannes, Method of interval, U. S. Patent 4, 462, 083. (1984).

[3] D. Garrett, Interpolation method and shaft angle encoder, U. S. Patent 5, 041, 829. (1991).

[4] Quadrature Decoder/Counter Interface ICs, Technical Data, Agilent Technologies.

[5] S.C. Huang and M.F. Lu, Proc. SPIE, Vol. 4401, (2001), p.91.

[6] S.C. Huang, H.C. Liou, K.M. Chang, K.W. Lui, and M.F. Lu, Proceedings of the Eighth Conference of the Chinese Metrology Society, Yunlin, Taiwan, (2001).
