Preparation of Ni-Al Intermetallics Bonded TiC Porous Cermets by SHS Method

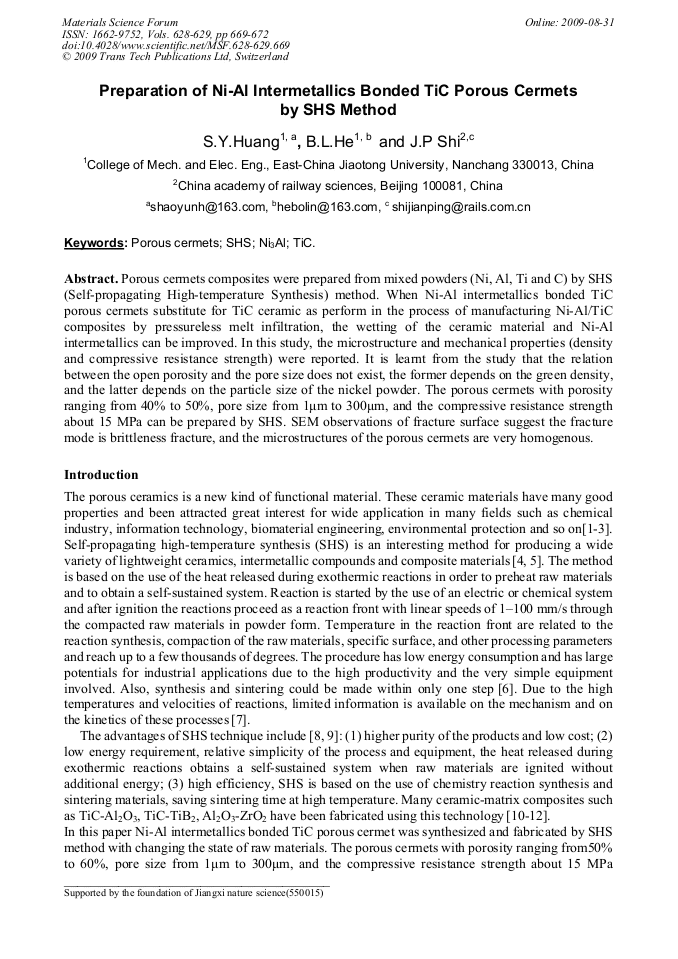

Article Preview

Porous cermets composites were prepared from mixed powders (Ni, Al, Ti and C) by SHS (Self-propagating High-temperature Synthesis) method. When Ni-Al intermetallics bonded TiC porous cermets substitute for TiC ceramic as perform in the process of manufacturing Ni-Al/TiC composites by pressureless melt infiltration, the wetting of the ceramic material and Ni-Al intermetallics can be improved. In this study, the microstructure and mechanical properties (density and compressive resistance strength) were reported. It is learnt from the study that the relation between the open porosity and the pore size does not exist, the former depends on the green density, and the latter depends on the particle size of the nickel powder. The porous cermets with porosity ranging from 40% to 50%, pore size from 1μm to 300μm, and the compressive resistance strength about 15 MPa can be prepared by SHS. SEM observations of fracture surface suggest the fracture mode is brittleness fracture, and the microstructures of the porous cermets are very homogenous.



Materials Science Forum (Volumes 628-629)

Edited by:

Dongming Guo, Jun Wang, Zhenyuan Jia, Renke Kang, Hang Gao, and Xuyue Wang




S. Y. Huang et al., "Preparation of Ni-Al Intermetallics Bonded TiC Porous Cermets by SHS Method", Materials Science Forum, Vols. 628-629, pp. 669-672, 2009

Online since:

August 2009





[1] Liu Fude, Chen Senfeng, Zhang Shuzheng: Materials Review, Vol. 14(2000), p.33(In Chinese).

[2] Wang Yaoming, Cai Weiqing: Jiang Su Ceramics, Vol. 36(2003), p.19(In Chinese).

[3] She J H, Ohji T: Mater Chem and Phy, Vol. 80(2003), p.610.

[4] J.D. Walton and N.E. Poulos: Am. Ceram. Soc., Vol. 42 (1959), p.40.

[5] Z.A. Munir and U. Anselmi-Tamburini: Materials Science Report, Vol. 3 (1989), p.277.

[6] S.D. Dunmead, Z.A. Munir, J.B. Holt, et al: Mater. Sci., Vol. 26 (1991), p.2410.

[7] C. Curfsa, I.G. Canob, G.B.M. Vaughana, et al: Journal of the European Ceramic Society Vol. 22 (2002), p.1039.

[8] Su Juan, Qian Donghao, Zhou Xiaoxin, et al: Powder Metallurgy Technology, Vol. 24 (2006), p.24(In Chinese).

[9] Chuncheng ZHU, Xinghong ZHANG, Xiaodong HE, et al: J. Mater. Sci. Technol. Vo1. 22(2006), p.78(In Chinese).

[10] Tao Lin, Shiju Guo, Sheng Yin, et al: Journal of University of Science and Technology Beijing, Vol. 9 (2002), p.221(In Chinese).

[11] Jinyong ZHANG, Zhengyi FU and Weimin WANG: J. Mater. Sci. Techno. Vo1. 21(2005), p.841(In Chinese).

[12] Guibo Yu, Weu Yau, Shuhai Wang, et al: Journal of University of Science and Technology Beijing, Vol. 13(2006), p.178(In Chinese).
