4.6 kV, 10.5 mOhm×cm2 Nickel Silicide Schottky Diodes on Commercial 4H-SiC Epitaxial Wafers

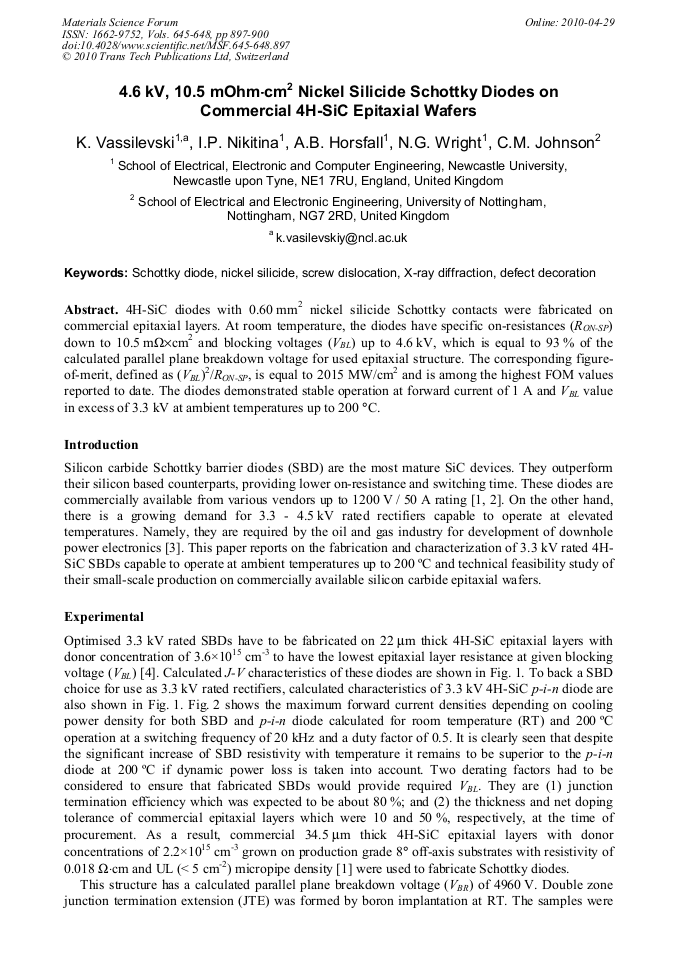

Article Preview

4H-SiC diodes with 0.60 mm2 nickel silicide Schottky contacts were fabricated on commercial epitaxial layers. At room temperature, the diodes have specific on-resistances (RON-SP) down to 10.5 mΩcm2 and blocking voltages (VBL) up to 4.6 kV, which is equal to 93 % of the calculated parallel plane breakdown voltage for used epitaxial structure. The corresponding figure-of-merit, defined as (VBL)2/RON-SP, is equal to 2015 MW/cm2 and is among the highest FOM values reported to date. The diodes demonstrated stable operation at forward current of 1 A and VBL value in excess of 3.3 kV at ambient temperatures up to 200 °C.



Materials Science Forum (Volumes 645-648)

Edited by:

Anton J. Bauer, Peter Friedrichs, Michael Krieger, Gerhard Pensl, Roland Rupp and Thomas Seyller




K. Vassilevski et al., "4.6 kV, 10.5 mOhm×cm2 Nickel Silicide Schottky Diodes on Commercial 4H-SiC Epitaxial Wafers ", Materials Science Forum, Vols. 645-648, pp. 897-900, 2010

Online since:

April 2010




[1] Cree Inc., information on http: /www. cree. com.

[2] Infineon Technologies AG, information on http: /www. infineon. com.

[3] Downhole Gas Compression - Game Changing Technology, OG-MRP IOR Views (2007), information on http: /ior. senergyltd. com/issue13/research-development/smes/corac.

[4] D. Peters, K. -O. Dohnke, C. Hecht, D. Stephani: Mater. Sci. Forum Vol. 353-356 (2001), p.675.

[5] K. Vassilevski, A. Horsfall, C.M. Johnson, N. Wright: Mater. Sci. Forum Vol. 457-460 (2004), p.989.

[6] I. Nikitina, K. Vassilevski, N. Wright, A. Horsfall, A.G. O'Neill, C.M. Johnson: J. Appl. Phys. Vol. 97 (2005), p.083709.

[7] I. Nikitina, K. Vassilevski, A. Horsfall, N. Wright, A.G. O'Neill, S.K. Ray, K. Zekentes, C.M. Johnson: Semiconductor Science and Technology Vol. 24 (2009), p.055006.

[8] B.J. Baliga: Journal of Applied Physics Vol. 53 (1982), p.1759.

[9] Q. Wahab, F. Ellison, A. Henry, E. Janzen, C. Hallin, J. Di Persio, R. Martinez: Appl. Phys. Lett. Vol. 76 (2000), p.2725.

[10] P.B. Hirsch: Mosaic structure, in Progress in Metal Physics, ed. B. Chalmers and R. King, Pergamon Press, New York (1956).
