Adiabatic Shear Banding in an Al-Mg-Si Alloy Processed by Equal Channel Angular Pressing

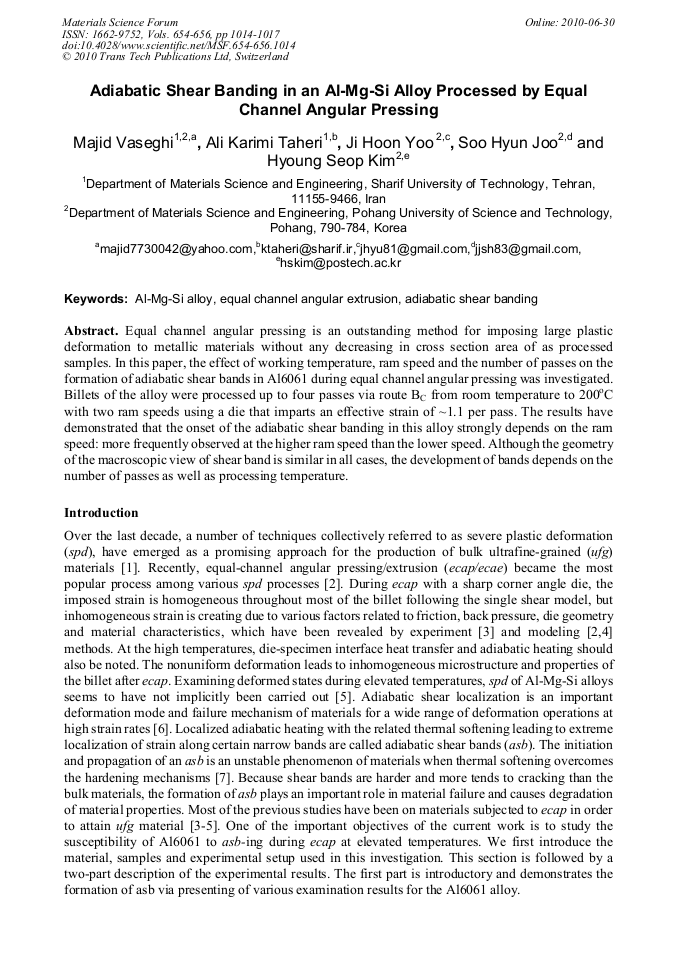

Article Preview

Equal channel angular pressing is an outstanding method for imposing large plastic deformation to metallic materials without any decreasing in cross section area of as processed samples. In this paper, the effect of working temperature, ram speed and the number of passes on the formation of adiabatic shear bands in Al6061 during equal channel angular pressing was investigated. Billets of the alloy were processed up to four passes via route BC from room temperature to 200oC with two ram speeds using a die that imparts an effective strain of ~1.1 per pass. The results have demonstrated that the onset of the adiabatic shear banding in this alloy strongly depends on the ram speed: more frequently observed at the higher ram speed than the lower speed. Although the geometry of the macroscopic view of shear band is similar in all cases, the development of bands depends on the number of passes as well as processing temperature.



Materials Science Forum (Volumes 654-656)

Main Theme:

Edited by:

Jian-Feng Nie and Allan Morton




M. Vaseghi et al., "Adiabatic Shear Banding in an Al-Mg-Si Alloy Processed by Equal Channel Angular Pressing", Materials Science Forum, Vols. 654-656, pp. 1014-1017, 2010

Online since:

June 2010




[1] P. Quang, A. Krishnaiah, S.I. Hong and H.S. Kim: Mater. Trans. Vol. 50 (2009), p.40.

[2] S.C. Yoon, A.V. Nagasekhar, J.H. Yoo, M.I. Abd El Aal, M. Vaseghi and H.S. Kim: Mater. Trans. Vol. 51 (2010), p.46.

[3] C. Xu, M. Furukawa, Z. Horita and T.G. Langdon: Mater. Sci. Eng. Vol. A398 (2005), p.66.

[4] A.V. Nagasekhar, S.C. Yoon, Y. Tick-Hon and H.S. Kim: Comput. Mater. Sci. Vol. 46 (2009), p.347.

[5] M. Cai and G.J. Cheng: JOM (2007), p.58.

[6] F. Martinez, L.E. Murr, A. Ramirez, M.I. Lopez and S.M. Gaytan: Mater. Sci. Eng. A454 (2007), p.581.

[7] G.M. Owolabi, A.G. Odeshi , M.N.K. Singh, and M.N. Bassim: Mater. Sci. Eng. A457 (2007), p.114.

[8] M. Vaseghi, A. Karimi Taheri and H.S. Kim: submitted to J. Mater. Design (2010).

[9] S.L. Semiatin, D.P. Lelo and E.B. Shell: Acta Mater. Vol. 48 (2000), p.1841.

[10] B. Talebanpour, R. Ebrahimi and K. Janghorban: Mater. Sci. Eng. A527 (2009), p.141.

[11] L. Jinxu, L. Shukui, Z. Xiaoqing, Z. Zhaohui, Z. Haiyun and W. Yingchun: Scripta Mater. Vol. 59 (2008), p.1271.

[12] M. Vaseghi, A. Karimi Taheri and H.S. Kim: Met. Mater. Int. (2010), in press.

[13] R. Nakkalil, J.R. Hornaday Jr. and M.N. Bassim: Mater. Sci. Eng. A141 (1991), p.247.

[14] Q. Xue, X.Z. Liao, Y.T. Zhu and G.T. Gray III: Mater. Sci. Eng. A410-411 (2005), p.252.

[15] K. M. Cho, S. Lee, S.R. Nutt and J. Duffy: Acta Metall. Mater. Vol. 41 (1993), 923-932.
