Ag Powders Consolidated by Reciprocating Extrusion (CEC)


Article Preview

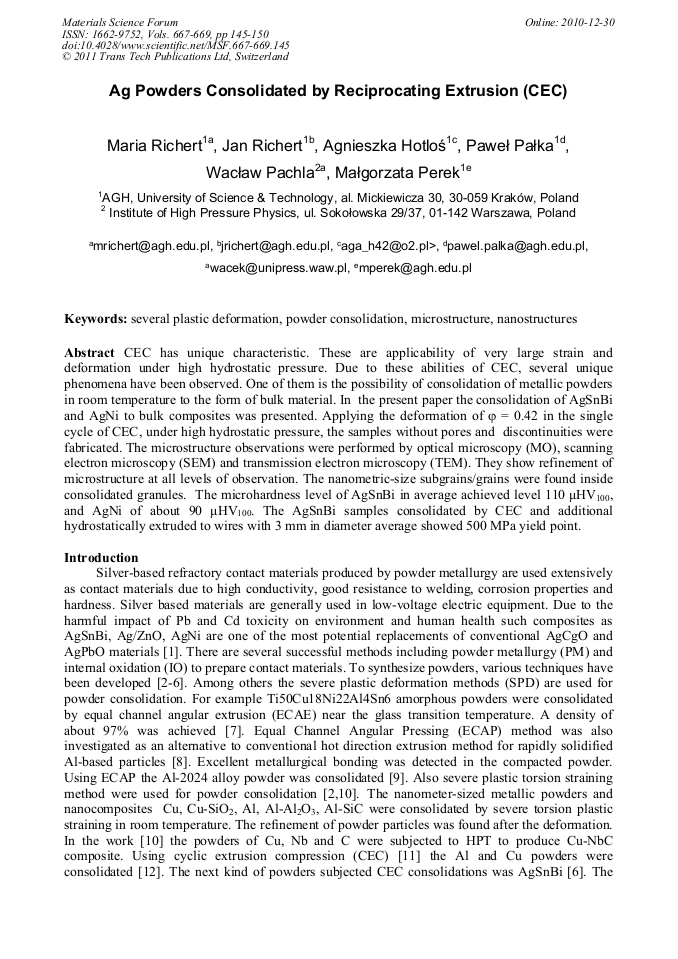

CEC has unique characteristic. These are applicability of very large strain and deformation under high hydrostatic pressure. Due to these abilities of CEC, several unique phenomena have been observed. One of them is the possibility of consolidation of metallic powders in room temperature to the form of bulk material. In the present paper the consolidation of AgSnBi and AgNi to bulk composites was presented. Applying the deformation of  = 0.42 in the single cycle of CEC, under high hydrostatic pressure, the samples without pores and discontinuities were fabricated. The microstructure observations were performed by optical microscopy (MO), scanning electron microscopy (SEM) and transmission electron microscopy (TEM). They show refinement of microstructure at all levels of observation. The nanometric-size subgrains/grains were found inside consolidated granules. The microhardness level of AgSnBi in average achieved level 110 μHV100, and AgNi of about 90 μHV100. The AgSnBi samples consolidated by CEC and additional hydrostatically extruded to wires with 3 mm in diameter average showed 500 MPa yield point.



Materials Science Forum (Volumes 667-669)

Edited by:

Jing Tao Wang, Roberto B. Figueiredo and Terence G. Langdon




M. W. Richert et al., "Ag Powders Consolidated by Reciprocating Extrusion (CEC)", Materials Science Forum, Vols. 667-669, pp. 145-150, 2011

Online since:

December 2010




[1] Księżarek St., Besztak B.: Wires used in the production of electric contacts, Wire Journal International, 40, (2000) 208-213.

[2] I.V. Alexandrov, Y.T. Zhu, T.C. Lowe, R.K. Islamgaliev, R.Z. Valiev, Consolidation of nanometer sized powders using severe plastic torsional straining, NanoStructured Materials, Vol. 10, No 1 (1998) 45-54.


[3] L.C.Z. Zhang, J. Xu, E. Ma, Consolidation and properties of ball-milled Ti50Cu18Ni22Al4Sn6 glassy alloy by equal channel angular extrusion, Materials Science and Engineering, A 434 (2006) 280-288.


[4] O.N. Senkov, S.V. Senkova, J.M. Scott, D.B. Miracle, Compaction of amorphous aluminum alloy powder by direct extrusion and equal channel angular extrusion, Materials Science and Engineerimg, A393 (2005) 12-21.


[5] M. Galanty, P. Kazanowski, P. Kansuwan, W.Z. Misiołek, Consolidation of metal powders during the extrusion process, Journal of Materials Processing Technology, 125-126 (2002) 491-496.


[6] M. Richert, Nanomaterials produced by the methods of severe plastic deformations (SPD), Archives of Materials Science, 26, 4 (2005) 235-261.

[7] L.C. Zhang, J. Xua, E. Ma, Consolidation and properties of ball-milled Ti50Cu18Ni22Al4Sn6 glassy alloy by equal channel angular extrusion, Materials Science and Engineering A 434 (2006) 280–288.


[8] J. Nagy, M. Balog, F. Simancik, K. Izdinsky, D. Janickovic, P. Svec, Consolidation of Rapidly Solidified Al-Based Particles Using Equal Channel Abgular Pressing (ECAP), Rev. Adv. Mater. Sci. 18 (2008) 608-615.

[9] R.Z. Valiev, T.G. Langdon, Principles of equal-channel angular pressing as a processing tool for grain refinement, Progress in Materials Science 51 (2006) 881-981.


[10] M. Umem oto, B.D. Long, Y. Todaka, K. Tsuchiya, Work-softening, High Pressure Phase Formation and Powder Consolidation by HPT, Mat. Sci. Forum, vol. 654-656 (2010) pp.1205-1210.


[11] J. Richert, M. Richert; A New Method for Unlimited Deformation of Metals and Alloys, Aluminium, Vol. 62, 8 (1986) 604-607.

[12] M. Richert, J. Richert, Application of cyclic extrusion compression (CEC) method to the production of materials with unconventional properties, part  II, Inżynieria Materiałowa, No 2 (121), (2001) 73-79 (in polish).

Fetching data from Crossref.
This may take some time to load.
