The Intermetallic Phases in Sand Casting Magnesium Alloys for Elevated Temperature

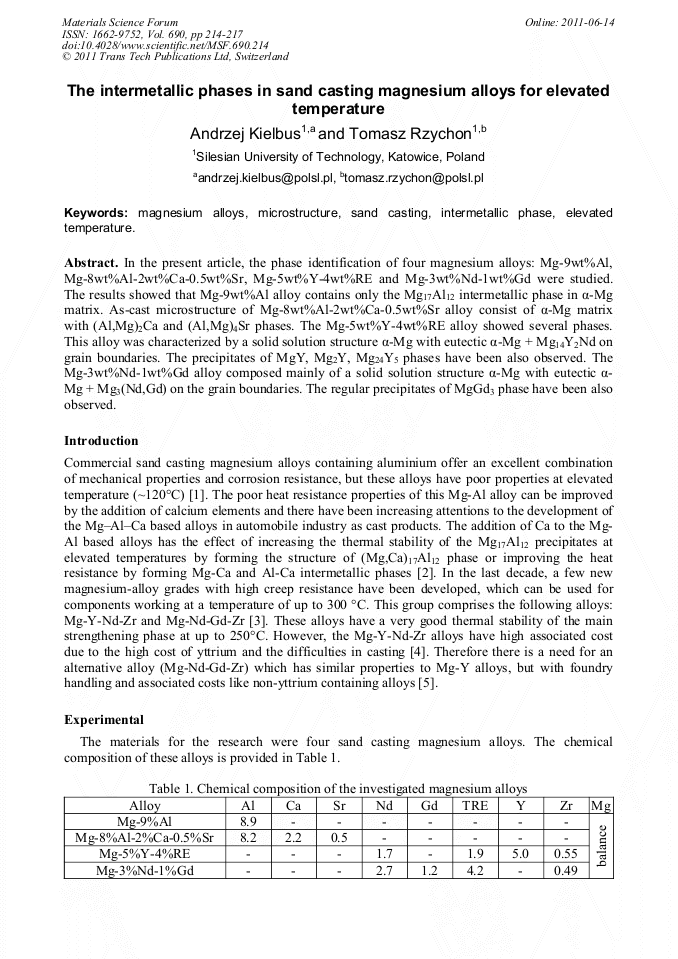

Article Preview

In the present article, the phase identification of four magnesium alloys: Mg-9wt%Al, Mg-8wt%Al-2wt%Ca-0.5wt%Sr, Mg-5wt%Y-4wt%RE and Mg-3wt%Nd-1wt%Gd were studied. The results showed that Mg-9wt%Al alloy contains only the Mg17Al12 intermetallic phase in α-Mg matrix. As-cast microstructure of Mg-8wt%Al-2wt%Ca-0.5wt%Sr alloy consist of α-Mg matrix with (Al,Mg)2Ca and (Al,Mg)4Sr phases. The Mg-5wt%Y-4wt%RE alloy showed several phases. This alloy was characterized by a solid solution structure α-Mg with eutectic α-Mg + Mg14Y2Nd on grain boundaries. The precipitates of MgY, Mg2Y, Mg24Y5 phases have been also observed. The Mg-3wt%Nd-1wt%Gd alloy composed mainly of a solid solution structure α-Mg with eutectic α-Mg + Mg3(Nd,Gd) on the grain boundaries. The regular precipitates of MgGd3 phase have been also observed.



Edited by:

Hajo Dieringa, Norbert Hort and Karl Ulrich Kainer




A. Kiełbus and T. Rzychoń, "The Intermetallic Phases in Sand Casting Magnesium Alloys for Elevated Temperature", Materials Science Forum, Vol. 690, pp. 214-217, 2011

Online since:

June 2011




[1] L. Han, H. Hu, D. O. Northwood, N. Li, Mat. Sci. and Eng. A Vol. 473 (2008) p.16.

[2] D.W. Zhou, J.S. Liu, P. Peng, L. Chen, Y.J. Hu, Mat. Let. Vol. 62 (2008) p.206.

[3] G. Pettersen, H. Westengen, R. Hoier, O. Lohne, Mater. Sci. Eng. Vol. A207 (1996) p.115.

[4] P. Lyon, I. Syed, T. Wilks: Magnesium Technology (2005) p.303.

[5] G. Lorimer, P. Apps, H. Karimzadech, J. King, Mat. Sci. For. Vols. 419-422 (2003) p.279.

[6] L. Kutsenko, D. Fuks, A. Kiv, M. Talianker, L. Burlaka, O. Monteiro, I. Brown, Comp. Modell. and New Techn. Vol. 10, No. 4 (2006) p.29.

[7] D. Zhou, J. Liu, J. Zhang, P. Peng, Trans. Nonferrous Met. Soc. China Vol. 17 (2007) p.250.

[8] M. Yang, F. Pan, R. Cheng, A. Tang, Trans. Nonferrous Met. Soc. China Vol. 18 (2008) p.52.

[9] C. Antion, P. Donnadieu, F. Perrard, A. Deschamps, C. Tassin, A. Pisch, Acta Mater. Vol. 51 (2003) p.5335.


[10] A. Kielbus, J. of Achieve. in Mat. and Manuf. Eng. Vol. 23 (2007) p.27.

[11] A. Kielbus in: Magnesium, Proceedings of the 7th International Conference on Magnesium Alloys and Their Application, edited by K.U. Kainer, Willey-VCH Verlag GmbH&Co. Weinheim, Germany (2007), p.492.

[12] P. Manfrinetti, K.A. Gschneidner, J. of the Less-comm. Met. Vol. 123 (1986) p.267.

[13] A. Kielbus, T. Rzychon, L. Litynska-Dobrzynska, G. Dercz, Solid State Phenom. Vol. 163 (2010) p.106.
