4H-SiC PIN Diode as High Temperature Multifunction Sensor

Abstract:

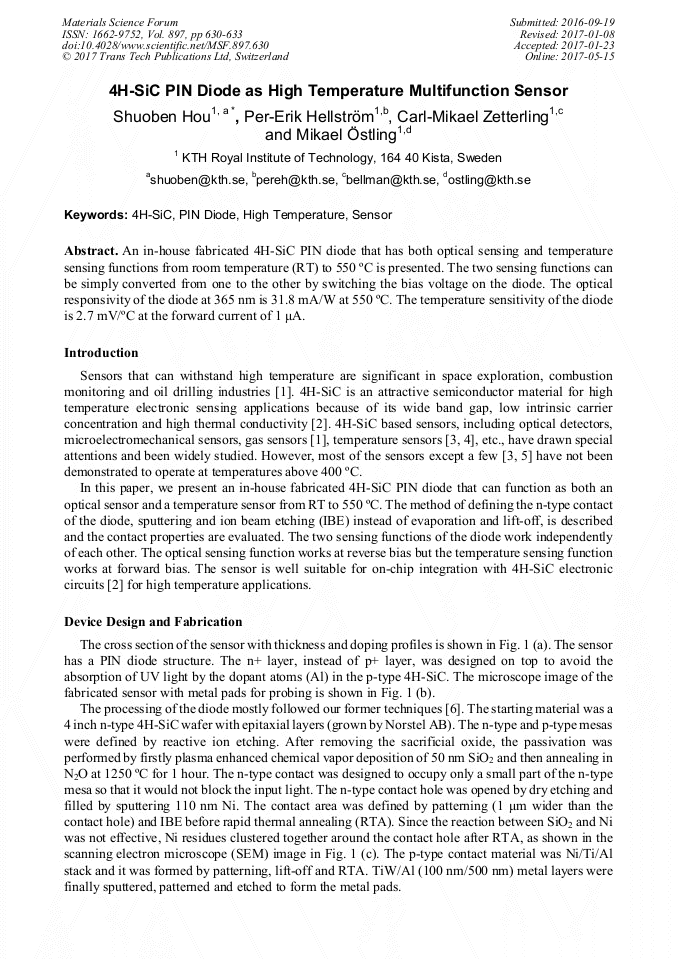

Article Preview

An in-house fabricated 4H-SiC PIN diode that has both optical sensing and temperature sensing functions from room temperature (RT) to 550 °C is presented. The two sensing functions can be simply converted from one to the other by switching the bias voltage on the diode. The optical responsivity of the diode at 365 nm is 31.8 mA/W at 550 °C. The temperature sensitivity of the diode is 2.7 mV/°C at the forward current of 1 μA.

Info:

Periodical:

Edited by:

Konstantinos Zekentes, Konstantin V. Vasilevskiy and Nikolaos Frangis

Pages:

630-633

Citation:

S. Hou et al., "4H-SiC PIN Diode as High Temperature Multifunction Sensor", Materials Science Forum, Vol. 897, pp. 630-633, 2017

Online since:

May 2017

Export:

Price:

$38.00

* - Corresponding Author

[1] N. G. Wright, A. B. Horsfall, SiC sensors: a review, Journal of Physics D: Applied Physics. vol. 40, no. 20 (2007) 6345-6354.

[2] C. -M. Zetterling, L. Lanni, R. Ghandi, B. G. Malm, and M. Östling, Future high temperature applications for SiC integrated circuits, Physica Status Solidi C. 9 (2012) 1647-1650.

DOI: https://doi.org/10.1002/pssc.201100689

[3] N. Zhang, C. -M. Lin, D. G. Senesky, A. P. Pisano, Temperature sensor based on 4H-silicon carbide pn diode operational from 20 °C to 600 °C, Applied Physics Letters. 104 (2014) 073504.

DOI: https://doi.org/10.1063/1.4865372

[4] S. Rao, G. Pangallo and F. G. Della Corte, Highly Linear Temperature Sensor Based on 4H-Silicon Carbide p-i-n Diodes, IEEE Electron Device Letters, vol. 36, no. 11 (2015) 1205-1208.

DOI: https://doi.org/10.1109/led.2015.2481721

[5] S. Hou, P. E. Hellström, C. M. Zetterling and M. Östling, 550 °C 4H-SiC p-i-n Photodiode Array With Two-Layer Metallization, IEEE Electron Device Letters, vol. 37, no. 12 (2016) 1594-1596.

DOI: https://doi.org/10.1109/led.2016.2618122

[6] L. Lanni, B. G. Malm, M. Östling and C. M. Zetterling, 500 ºC Bipolar Integrated OR/NOR Gate in 4H-SiC, IEEE Electron Device Letters. vol. 34, no. 9 (2013) 1091-1093.

DOI: https://doi.org/10.1109/led.2013.2272649

[7] K. Smedfors, L. Lanni, M. Östling, C. M. Zetterling, Characterization of Ohmic Ni/Ti/Al and Ni Contacts to 4H-SiC from -40°C to 500°C, Materials Science Forum, vols. 778-780 (2014) 681-684.

DOI: https://doi.org/10.4028/www.scientific.net/msf.778-780.681
