Double Annealing Processes of Ti-5Al-5Mo-5V-1Cr-1Fe Titanium Alloy

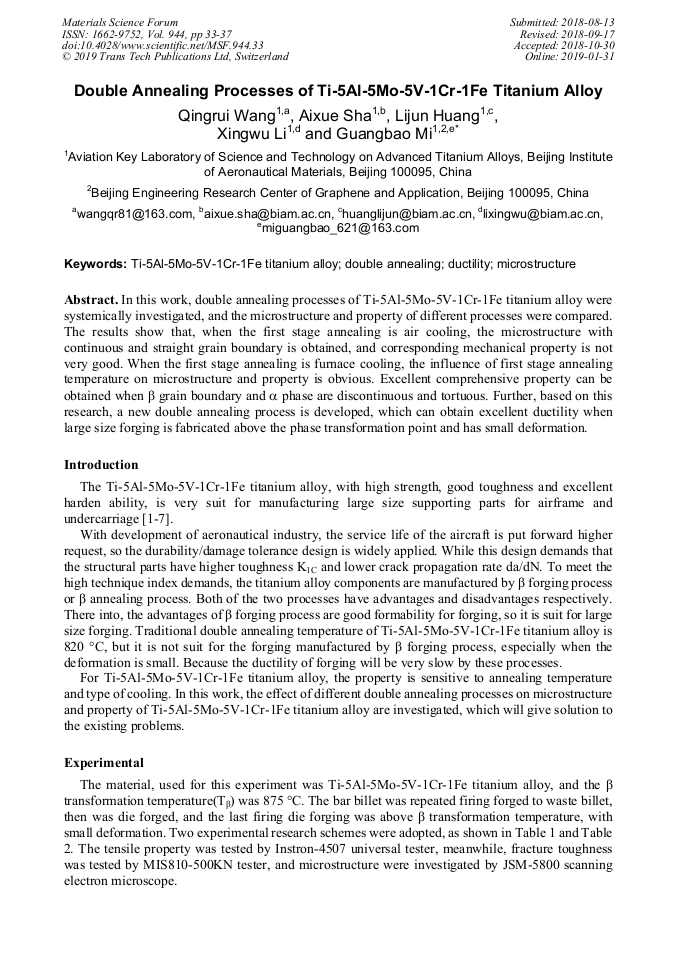

Article Preview

In this work, double annealing processes of Ti-5Al-5Mo-5V-1Cr-1Fe titanium alloy were systemically investigated, and the microstructure and property of different processes were compared. The results show that, when the first stage annealing is air cooling, the microstructure with continuous and straight grain boundary is obtained, and corresponding mechanical property is not very good; When the first stage annealing is furnace cooling, the influence of first stage annealing temperature on microstructure and property is obvious. Excellent comprehensive property can be obtained when β grain boundary and a phase are discontinuous and tortuous. Further, based on this research, a new double annealing process is developed, which can obtain excellent ductility when large size forging is fabricated above the phase transformation point and has small deformation.



Edited by:

Prof. Yafang Han




Q. R. Wang et al., "Double Annealing Processes of Ti-5Al-5Mo-5V-1Cr-1Fe Titanium Alloy", Materials Science Forum, Vol. 944, pp. 33-37, 2019

Online since:

January 2019




* - Corresponding Author

[1] A.X. Sha, X.W. Li, Q.R. Wang, Influence of hot deformation temperature on microstructure and property of TC18 titanium alloy. Chinese Journal of Nonferrous Metals, 15(8) (2005) 1167-1172.

[2] J.Y. Wang, Z.M. Ge, Y.B. Zhou, Titanium for Aviation. Shanghai: Shanghai science and technology press, (1985) 161-163.

[3] S. Polkin, V.L. Rodionov, A.N. Stroshkov, et al. Structure and mechanical properties of VT22 (a+b) high strength titanium alloys semiproducts // Froes I H, Caplan I. Tianium'92: Science and Technology, San Diego: TMS, (1992) 1569-1572.

[4] H.F. Liu, S.Y. Wei, J.F. Liu, Influence of microstructure on mechanical property of TC18 titanium alloy, Symposium on material science and alloy processing of the 12th China nonferrous metal society, Beijing: (2007).

[5] M.D. Jame, M.N. Paul, Tech spotlight air-fame and landing gear alloy, Advanced Materials and Processes. 17(3) (1999) 23-25.

[6] R.M. Hemphill, A high strength toughness alloy for tooling and forging, Forging Steels, 5 (1995) 191-191.

[7] C.G. Kang, J.W. Bae, Numerical simulation of mold filling and deformation behavior in rheology forming process, Mechanical Sciences, 50 (2008) 944-955.
