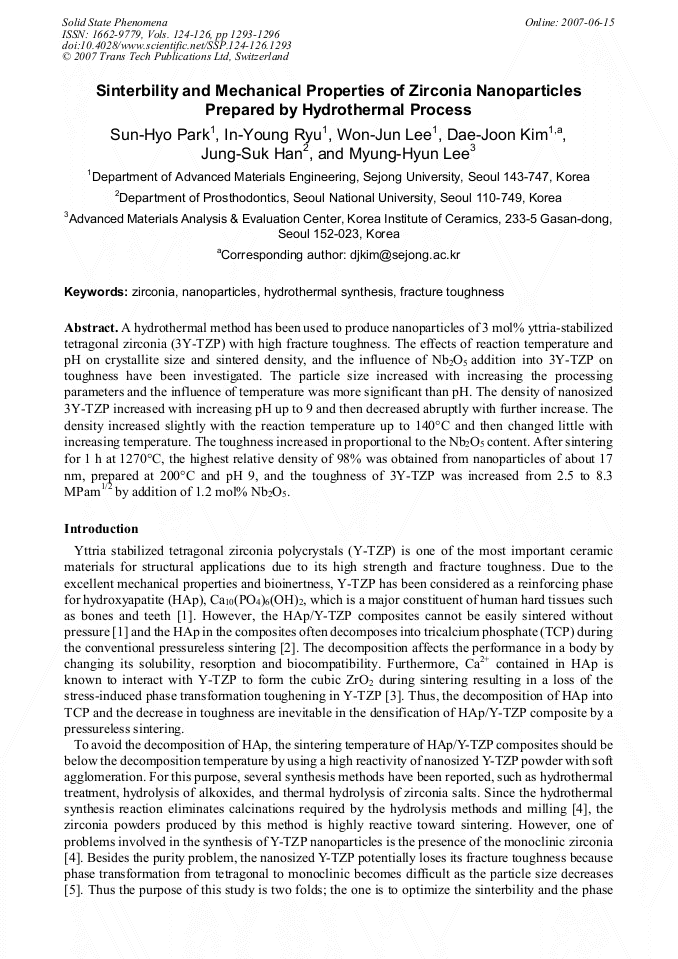

Sinterbility and Mechanical Properties of Zirconia Nanoparticles Prepared by Hydrothermal Process

Abstract:

A hydrothermal method has been used to produce nanoparticles of 3 mol% yttria-stabilized tetragonal zirconia (3Y-TZP) with high fracture toughness. The effects of reaction temperature and pH on crystallite size and sintered density, and the influence of Nb2O5 addition into 3Y-TZP on toughness have been investigated. The particle size increased with increasing the processing parameters and the influence of temperature was more significant than pH. The density of nanosized 3Y-TZP increased with increasing pH up to 9 and then decreased abruptly with further increase. The density increased slightly with the reaction temperature up to 140°C and then changed little with increasing temperature. The toughness increased in proportional to the Nb2O5 content. After sintering for 1 h at 1270°C, the highest relative density of 98% was obtained from nanoparticles of about 17 nm, prepared at 200°C and pH 9, and the toughness of 3Y-TZP was increased from 2.5 to 8.3 MPam1/2 by addition of 1.2 mol% Nb2O5.

Info:

Periodical:

Solid State Phenomena (Volumes 124-126)

Main Theme:

Advances in Nanomaterials and Processing

Edited by:

Byung Tae Ahn, Hyeongtag Jeon, Bo Young Hur, Kibae Kim and Jong Wan Park

Pages:

1293-1296

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.124-126.1293

Citation:

S. H. Park et al., "Sinterbility and Mechanical Properties of Zirconia Nanoparticles Prepared by Hydrothermal Process", Solid State Phenomena, Vols. 124-126, pp. 1293-1296, 2007

Online since:

June 2007

Authors:

Sun Hyo Park, In Young Ryu, Won Jun Lee, Dae Joon Kim, Jung Suk Han, Myung Hyun Lee

Keywords:

Fracture Toughness, Hydrothermal Synthesis, Nanoparticle, Zirconia

Export:

RIS, BibTeX

Price:

$38.00

Permissions:

Request Permissions

Add to Cart

References

[1] J. Li, H. Liao, and L. Hermanson, Biomaterials Vol. 17 (1996), p.1790.

[2] J.M. Wu and T.S. Yeh, J. Mater. Sci. Vol. 23 (1988), p.3771.

[3] K. Ioku, S. Somiya, and M. Yoshimura, J. Ceram. Soc. Jpn., Int. Ed. Vol. 99 (1991), p.191.

[4] W.J. Dawson, Ceram. Bull Vol. 67 (1988), p.1673.

[5] P.F. Becher, A.B. Alexander, A. Bleier, S.B. Ewaters, and W.H. Warwick, J. Am. Ceram. Soc. Vol. 76 (1993), p.657.

[6] G.R. Antis, P. Chantikul, B.R. Lawn, and D.B. Marshall, J. Am. Ceram. Soc. Vol. 64 (1981), p.533.

[7] D.B. Marshall, N. Tatsuo, and A.G. Evans, J. Am. Ceram. Soc. Vol. 65 (1982), p. C-175.

[8] Y. Zhang, G. Xu, Z. Yan, Y. Yang, C. Liao, and C. Yan, J. Mater. Chem. Vol. 12 (2002) p.970.

[9] M.M.R. Boutz, R.J.M. Olde Scholtenhuis, A.J.A. Winnubst, and A.J. Burggraaf, Mat. Res. Bull. Vol. 29 (1994) p.31.

[10] T. Tsukada, S. Venigalla, A. Morrone, and J.H. Adair, J. Am. Ceram. Soc. Vol. 82 (1999), pp.1169-0. 0 0. 4 0. 8 1. 2 0 2 4 6 8 10 Fracture Toughness (MPa • • • • m 1/2) Nb2O5 mol.
