Characteristics of Al-Doped ZnO Transparent Conductive Oxide Films for Solar Cell Applications

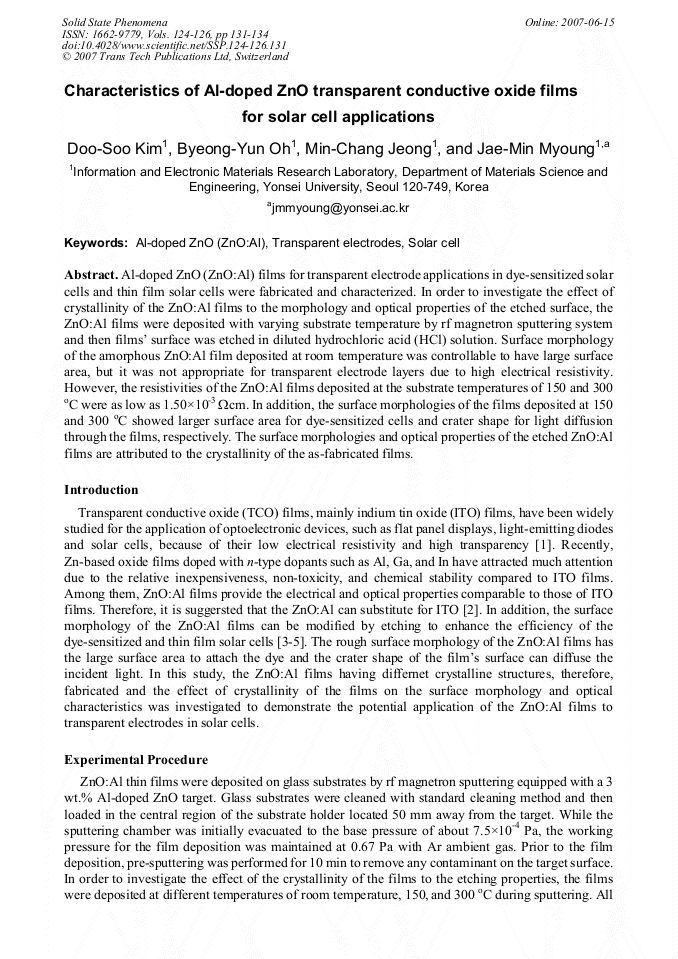

Article Preview

Al-doped ZnO (ZnO:Al) films for transparent electrode applications in dye-sensitized solar cells and thin film solar cells were fabricated and characterized. In order to investigate the effect of crystallinity of the ZnO:Al films to the morphology and optical properties of the etched surface, the ZnO:Al films were deposited with varying substrate temperature by rf magnetron sputtering system and then films’ surface was etched in diluted hydrochloric acid (HCl) solution. Surface morphology of the amorphous ZnO:Al film deposited at room temperature was controllable to have large surface area, but it was not appropriate for transparent electrode layers due to high electrical resistivity. However, the resistivities of the ZnO:Al films deposited at the substrate temperatures of 150 and 300 oC were as low as 1.50×10-3 cm. In addition, the surface morphologies of the films deposited at 150 and 300 oC showed larger surface area for dye-sensitized cells and crater shape for light diffusion through the films, respectively. The surface morphologies and optical properties of the etched ZnO:Al films are attributed to the crystallinity of the as-fabricated films.



Solid State Phenomena (Volumes 124-126)

Edited by:

Byung Tae Ahn, Hyeongtag Jeon, Bo Young Hur, Kibae Kim and Jong Wan Park






D. S. Kim et al., "Characteristics of Al-Doped ZnO Transparent Conductive Oxide Films for Solar Cell Applications", Solid State Phenomena, Vols. 124-126, pp. 131-134, 2007

Online since:

June 2007




[1] C.C. Wu, C.I. Wu, J.C. Sturm and A. Kahn: Appl. Phys. Lett. Vol. 70 (1997), p.1348.

[2] J. Müller, B. Rech, J. Springer and M. Vanecek: Sol. Energy Vol. 77 (2004), p.917.

[3] K. Keis, E. Magnusson, H. Lindström, S. -E. Lindquist and A. Hagfeldt: Sol. Energy Mater. Sol. Cells Vol. 73 (2002), p.51.

[4] O. Kluth, B. Rech, L. Houben, S. Wieder, G. Schöpe, C. Beneking, H. Wagner, A. Löffl and H.W. Schock: Thin Solid Films Vol. 351 (1999), p.247.

DOI: 10.1016/s0040-6090(99)00085-1

[5] J. Krč, M. Zeman, O. Kluth, F. Smole, M. Topič: Thin Solid Films Vol. 426 (2003), p.296.

[6] S. -S. Lin, J. -L. Huang and P. Šajgalik: Surf. Coat. Technol. Vol. 190 (2005), p.39.
