Effect of Current Ratio on Plasma Electrolytic Oxide Coatings on Mg-Al Alloy

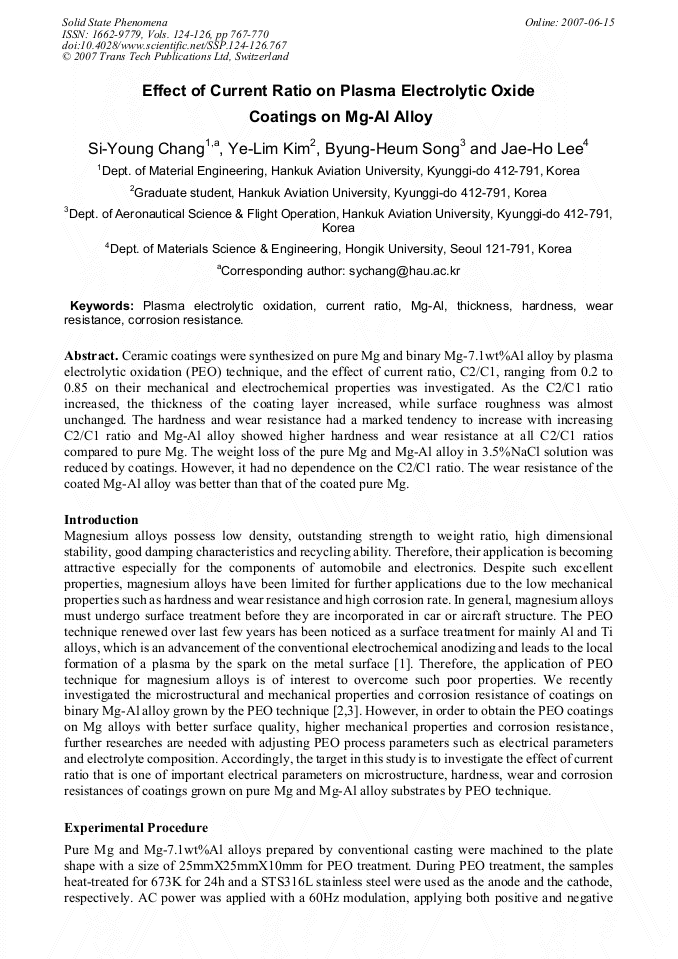

Article Preview

Ceramic coatings were synthesized on pure Mg and binary Mg-7.1wt%Al alloy by plasma electrolytic oxidation (PEO) technique, and the effect of current ratio, C2/C1, ranging from 0.2 to 0.85 on their mechanical and electrochemical properties was investigated. As the C2/C1 ratio increased, the thickness of the coating layer increased, while surface roughness was almost unchanged. The hardness and wear resistance had a marked tendency to increase with increasing C2/C1 ratio and Mg-Al alloy showed higher hardness and wear resistance at all C2/C1 ratios compared to pure Mg. The weight loss of the pure Mg and Mg-Al alloy in 3.5%NaCl solution was reduced by coatings. However, it had no dependence on the C2/C1 ratio. The wear resistance of the coated Mg-Al alloy was better than that of the coated pure Mg.



Solid State Phenomena (Volumes 124-126)

Edited by:

Byung Tae Ahn, Hyeongtag Jeon, Bo Young Hur, Kibae Kim and Jong Wan Park




S. Y. Chang et al., "Effect of Current Ratio on Plasma Electrolytic Oxide Coatings on Mg-Al Alloy", Solid State Phenomena, Vols. 124-126, pp. 767-770, 2007

Online since:

June 2007




[1] A.L. Yeroklin, X. Nie, A. Leyland, A. Matthews, S.J. Dowey: Surf. Coat. Tech. Vol. 122 (1999), p.73.

[2] B. G. Yu, Y. Kim, K. M. Kang and S.Y. Chang: Materials Science Forum. Vol. 510-511 (2006), p.298.

[3] B. G. Yu, Y. Kim, K. S. Lee and S.Y. Chang: Proceedings of the 1 st Asian Symposium on Mg alloys (Jeju, 2005), p.321.

[4] Japan Inst. of Magnesium: Handbook of Advanced Magnesium Technology (Kallos Publishing Co., Tokyo 2000).

[5] E. Ghali: Uhlig's Corrosion Handbook, 2nd Ed. (John Wiley and Sons, Inc., 2000).
