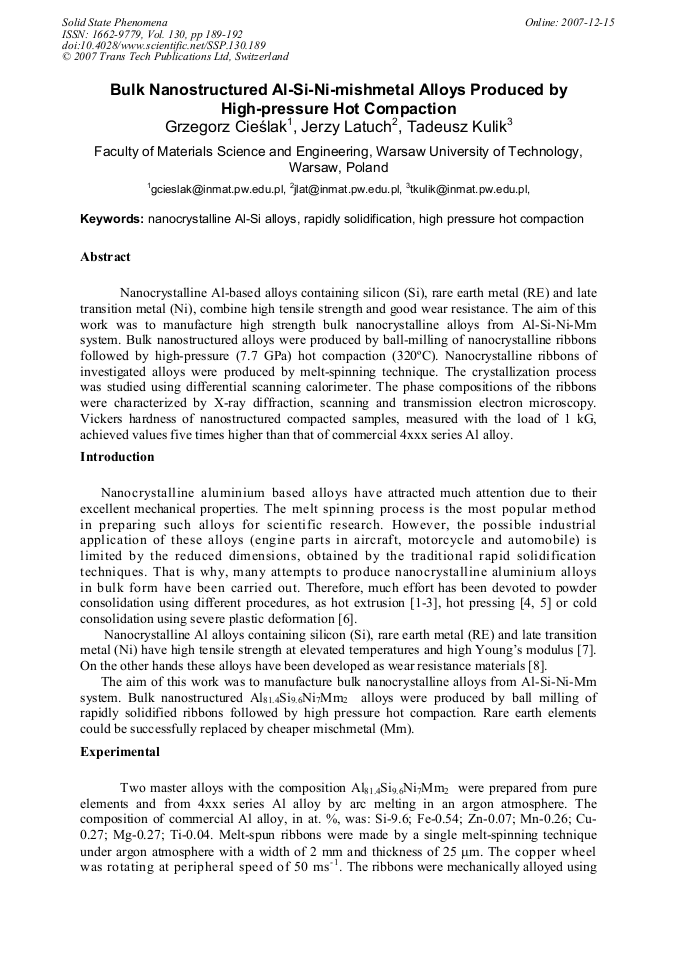

Bulk Nanostructured Al-Si-Ni-Mishmetal Alloys Produced by High-Pressure Hot Compaction


Article Preview

Nanocrystalline Al-based alloys containing silicon (Si), rare earth metal (RE) and late transition metal (Ni), combine high tensile strength and good wear resistance. The aim of this work was to manufacture high strength bulk nanocrystalline alloys from Al-Si-Ni-Mm system. Bulk nanostructured alloys were produced by ball-milling of nanocrystalline ribbons followed by high-pressure (7.7 GPa) hot compaction (320°C). Nanocrystalline ribbons of investigated alloys were produced by melt-spinning technique. The crystallization process was studied using differential scanning calorimeter. The phase compositions of the ribbons were characterized by X-ray diffraction, scanning and transmission electron microscopy. Vickers hardness of nanostructured compacted samples, measured with the load of 1 kG, achieved values five times higher than that of commercial 4xxx series Al alloy.



Solid State Phenomena (Volume 130)

Edited by:

Danuta Stróż & Małgorzata Karolus




G. Cieślak et al., "Bulk Nanostructured Al-Si-Ni-Mishmetal Alloys Produced by High-Pressure Hot Compaction", Solid State Phenomena, Vol. 130, pp. 189-192, 2007

Online since:

December 2007




[1] J.Q. Guo, K. Kita, N.S. Kazama, J. Nagahora, K. Ohtera, Mat. Sci. Eng. A 203 (1995)420.

[2] K.I. Moon, K.S. Lee. J. All. Comp. 291 (1999) 312.

[3] S.J. Hong, B.S. Chun. Mat. Sci. Eng. A348 (2003) 262.

[4] Y. Kawamura, H. Mano, A. Inoue, Scripta Mater. 44 (2001) 1599.

[5] I. Börner, J. Eckert, Scripta Mater. 45 (2001) 237.

[6] A.R. Yavari, W.J. Botta Filho, C. Rodrigues, C. Cardoso, R.Z. Valiev. Scripta Mater. 46 (2002) 711.

[7] Y. Kawamura, A. Inoue, K. Sasamori, T. Masumoto, Scripta Metall. 29 (1993) 275.

[8] T.H. Lee, Y. Kawamura, A. Inoue, S.S. Cho, T. Masumoto, Scripta Metall. 36 (1997) 475 Alloy a [nm] d [nm] HV Tn [o C] Bulk alloy A 0, 4029 10-20 320 270 Bulk alloy B 0, 4056 15-30 330 270 4xxx series Al alloy - - 60.
