Calculation of Spectrum Characteristics for Braking Modes of Linear Induction Motors

Abstract:

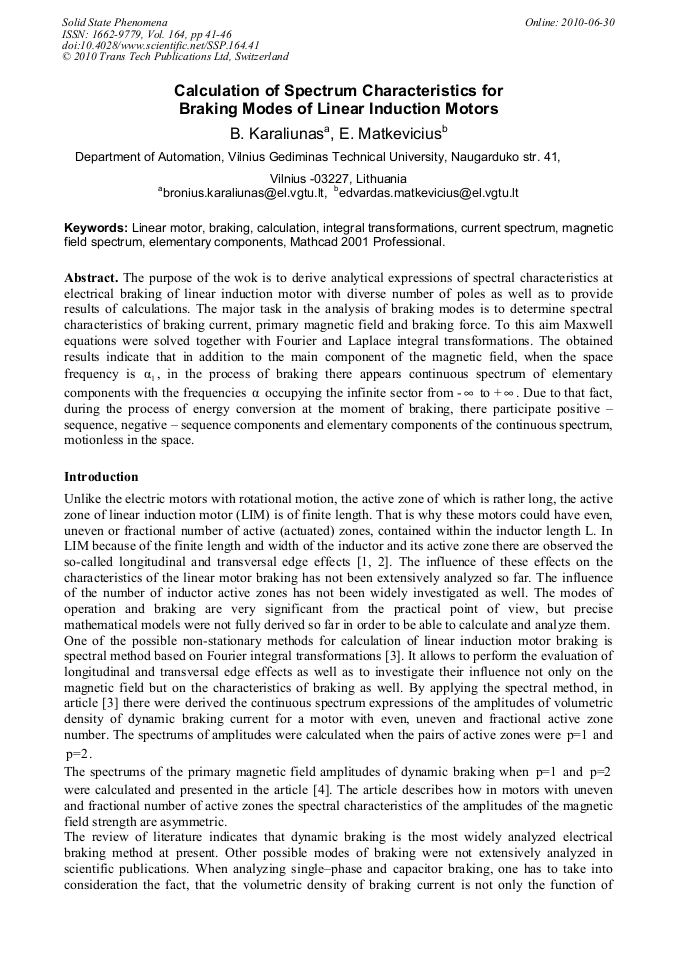

Article Preview

The purpose of the wok is to derive analytical expressions of spectral characteristics at electrical braking of linear induction motor with diverse number of poles as well as to provide results of calculations. The major task in the analysis of braking modes is to determine spectral characteristics of braking current, primary magnetic field and braking force. To this aim Maxwell equations were solved together with Fourier and Laplace integral transformations. The obtained results indicate that in addition to the main component of the magnetic field, when the space frequency is , in the process of braking there appears continuous spectrum of elementary components with the frequencies occupying the infinite sector from - to + . Due to that fact, during the process of energy conversion at the moment of braking, there participate positive – sequence, negative – sequence components and elementary components of the continuous spectrum, motionless in the space.

Info:

Periodical:

Solid State Phenomena (Volume 164)

Edited by:

Andrejus H. Marcinkevičius and Algirdas V.Valiulis

Pages:

41-46

DOI:

10.4028/www.scientific.net/SSP.164.41

Citation:

B. Karaliunas and E. Matkevicius, "Calculation of Spectrum Characteristics for Braking Modes of Linear Induction Motors", Solid State Phenomena, Vol. 164, pp. 41-46, 2010

Online since:

June 2010

Export:

Price:

$35.00

[1] I. Boldea: Linear Electric Actuators and their Control: a Review. Proc. of the 10th Int. Conf. Europen Power and Drives, Assoc. PEMC2002, Dubrovnik, Croatia (2002), pp.12-19.

[2] P. K. Budig: The Application of Linear Motors. Proc. of 9-th Int. Conf. on Power Electronics and Motion Control, Kosice, Slovak Republik (2000), pp.1336-1341.

[3] B. Karaliunas, E. Matkevicius: Investigation of Linear Induction Motor Braking Modes by Spectral Method. Electronics and Electrical Engineering, Kaunas, Technologija No. 3(75) (2007), pp.37-40.

[4] B. Karaliunas, E. Matkevicius: Calculation Spectral Characteristics of Magnetic Field of the Linear Induction Motor at the Braking Modes. Trans Tech Publications, Switzerland (2009).

DOI: 10.4028/www.scientific.net/ssp.144.136

[5] B. Karaliunas: $on Stationary Processes in the Electric Machine Converters of Energy. Proc. of Electrotechnical Institute, Warszawa Vol. 200/99 (1999), pp.99-112.

[6] O. Daruliene, B. Karaliunas: Mathematical Model of $on - Stationary Braking Processes of Electromechanical Power Converters. Proc. of 11th Int. Conf. on Power Electronics and Motion Control, EPE - PEMC 2004, Riga, Latvia Vol. 3 (2004), pp.3-419.

DOI: 10.1080/09398368.2004.11463554
