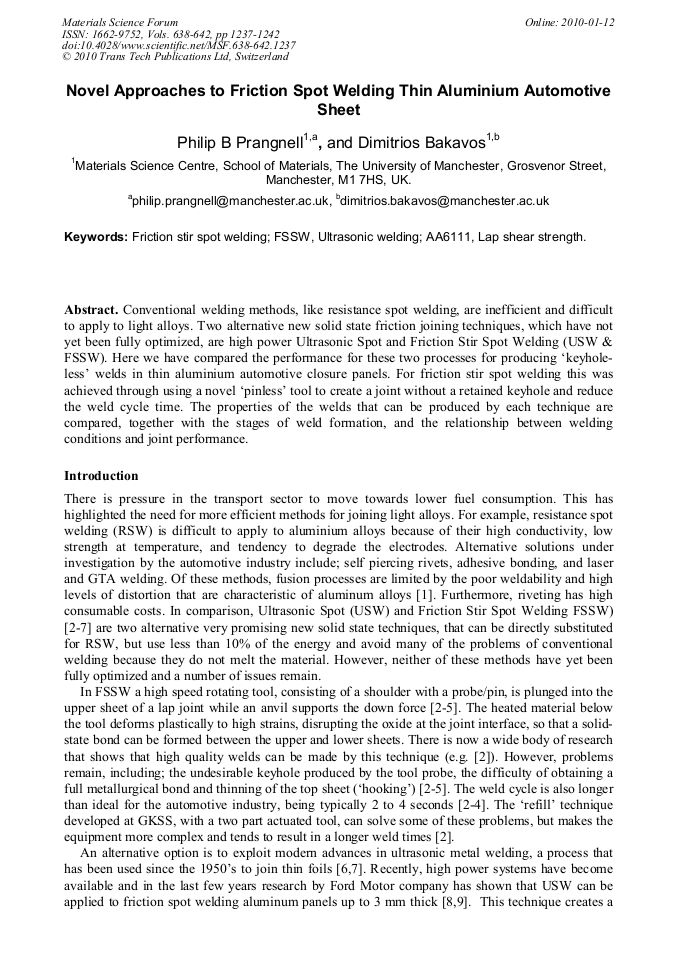

Novel Approaches to Friction Spot Welding Thin Aluminium Automotive Sheet

Abstract:

Conventional welding methods, like resistance spot welding, are inefficient and difficult to apply to light alloys. Two alternative new solid state friction joining techniques, which have not yet been fully optimized, are high power Ultrasonic Spot and Friction Stir Spot Welding (USW & FSSW). Here we have compared the performance for these two processes for producing ‘keyhole-less’ welds in thin aluminium automotive closure panels. For friction stir spot welding this was achieved through using a novel ‘pinless’ tool to create a joint without a retained keyhole and reduce the weld cycle time. The properties of the welds that can be produced by each technique are compared, together with the stages of weld formation, and the relationship between welding conditions and joint performance.

• Periodical: Materials Science Forum (Volumes 638-642)
• Pages: 1237-1242
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.638-642.1237
• Online since: January 2010
• Authors: Phil B. Prangnell, Dimitrios Bakavos
• Keywords: AA6111, Friction Stir Spot Welding, FSSW, Lap Shear Strength, Ultrasonic Welding

References

[1] T.A. Barnes and I.R. Pashby: J. Mat. Proc Tech. 99 (2000), p.62.

[2] B. Harsha, F. Hunt, K. Okamoto: Friction Stir Welding and Processing, edited by R.S. Mishra, M.W. Mahoney: ASM (2007), pp.235-272.

[3] A. Gerlich, P. Su, and T.H. North: Metall. Mater. Trans. 37A (2006), p.2773.

[4] D. Mitlin V. Radmilovic, T. Pan, J. Chen, Z. Feng, and M.L. Santella: Mat. Sci. and Eng. A, 441 (2006), p.79.

[5] D. Bakavos and P.B. Prangnell: Sci Technol Weld Joining; (2009); in press.

[6] H.P.C. Ganiels: Ultrasonics (1965) p.190.

[7] J. L Harthoorn: Ultrasonic Metal Welding, Doc. Thesis, Tech. Hogeschool, Eindhoven, (1978).

[8] R. Jahn, R. Cooper and D. Wilkosz: Metall Mater Trans. 38A (2007), p.570.

[9] N. W. Wright, J. D. Robson, and P.B. Prangnell, SAE Int, (2009); in press.
