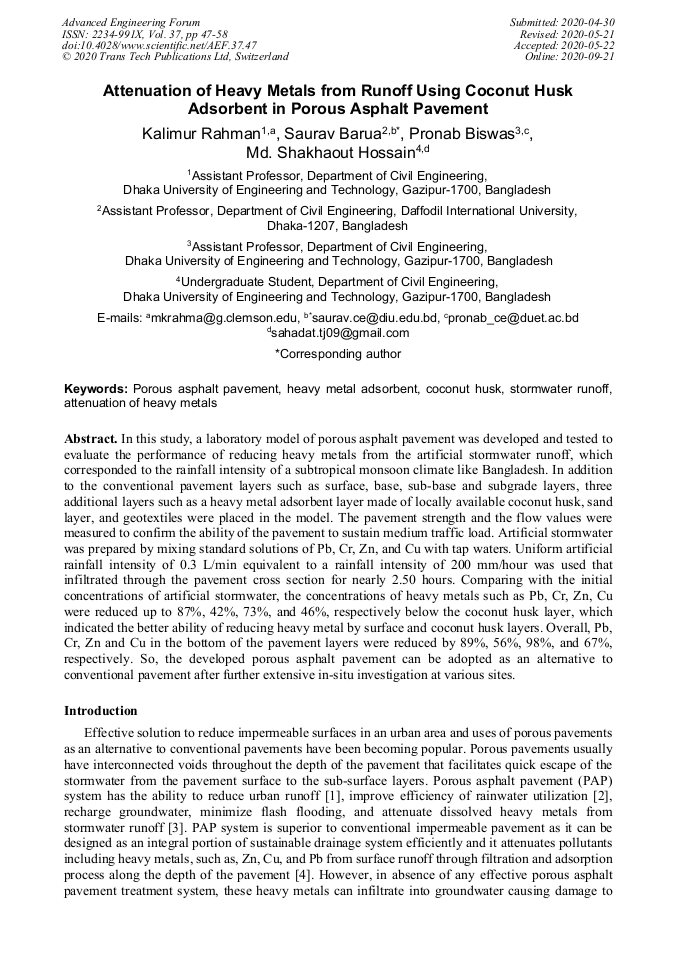

Attenuation of Heavy Metals from Runoff Using Coconut Husk Adsorbent in Porous Asphalt Pavement

Abstract:

In this study, a laboratory model of porous asphalt pavement was developed and tested to evaluate the performance of reducing heavy metals from the artificial stormwater runoff, which corresponded to the rainfall intensity of a subtropical monsoon climate like Bangladesh. In addition to the conventional pavement layers such as surface, base, sub-base and subgrade layers, three additional layers such as a heavy metal adsorbent layer made of locally available coconut husk, sand layer, and geotextiles were placed in the model. The pavement strength and the flow values were measured to confirm the ability of the pavement to sustain medium traffic load. Artificial stormwater was prepared by mixing standard solutions of Pb, Cr, Zn, and Cu with tap waters. Uniform artificial rainfall intensity of 0.3 L/min equivalent to a rainfall intensity of 200 mm/hour was used that infiltrated through the pavement cross section for nearly 2.50 hours. Comparing with the initial concentrations of artificial stormwater, the concentrations of heavy metals such as Pb, Cr, Zn, Cu were reduced up to 87%, 42%, 73%, and 46%, respectively below the coconut husk layer, which indicated the better ability of reducing heavy metal by surface and coconut husk layers. Overall, Pb, Cr, Zn and Cu in the bottom of the pavement layers were reduced by 89%, 56%, 98%, and 67%, respectively. So, the developed porous asphalt pavement can be adopted as an alternative to conventional pavement after further extensive in-situ investigation at various sites.

• Periodical: Advanced Engineering Forum (Volume 37)
• Pages: 47-58
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.37.47
• Online since: September 2020
• Authors: Kalimur Rahman, Saurav Barua*, Pronab Biswas, Md. Shakhaout Hossain
• Keywords: Attenuation of Heavy Metals, Coconut Husk, Heavy Metal Adsorbent, Porous Asphalt Pavement, Stormwater Runoff

References

[1] E.A. Fassman and S. Blackbourn, Urban runoff mitigation by a permeable pavement system over impermeable soils. Journal of Hydrologic Engineering, 15, 6 (2010), 475-485.

DOI: 10.1061/(asce)he.1943-5584.0000238

[2] E.O. Nnadi, A.P. Newman, S.J. Coupe and F.U. Mbanaso, Stormwater harvesting for irrigation purposes: An investigation of chemical quality of water recycled in pervious pavement system. Journal of environmental management, 147 (2015), 246-256.

DOI: 10.1016/j.jenvman.2014.08.020

[3] K. Zhang, F. Yong, D.T. McCarthy and A. Deletic, Predicting long term removal of heavy metals from porous pavements for stormwater treatment. Water research, 142 (2018), 236-245.

DOI: 10.1016/j.watres.2018.05.038

[4] M. Scholz and P. Grabowiecki, Review of permeable pavement systems. Building and environment, 42, 11, (2007), 3830-3836.

DOI: 10.1016/j.buildenv.2006.11.016

[5] T.T. Dong and B.K. Lee, Characteristics, toxicity, and source apportionment of polycylic aromatic hydrocarbons (PAHs) in road dust of Ulsan, Korea. Chemosphere, 74, 9 (2009), 1245-1253.

DOI: 10.1016/j.chemosphere.2008.11.035

[6] A. Wik, J. Lycken and G. Dave, Sediment quality assessment of road runoff detention systems in Sweden and the potential contribution of tire wear. Water, air, and soil pollution, 194, 1-4, (2008), 301-314.

DOI: 10.1007/s11270-008-9718-8

[7] K.M. Camponelli, R.E. Casey, J.W Snodgrass., S.M. Lev and E.R. Landa, Impacts of weathered tire debris on the development of Rana sylvatica larvae. Chemosphere, 74, 5 (2009), 717-722.

DOI: 10.1016/j.chemosphere.2008.09.056

[8] R.F. Sawyer, R.A. Harley, S.H. Cadle, J.M. Norbeck, R. Slott and H.A. Bravo, Mobile sources critical review: 1998 NARSTO assessment. Atmospheric Environment, 34, 12-14, (2000) 2161-2181.

DOI: 10.1016/s1352-2310(99)00463-x

[9] G. Weckwerth, Verification of traffic emitted aerosol components in the ambient air of Cologne (Germany). Atmospheric environment, 35, 32, (2001), 5525-5536.

DOI: 10.1016/s1352-2310(01)00234-5

[10] R.M. Harrison, R. Tilling, M.S.C. Romero, S. Harrad and K. Jarvis, A study of trace metals and polycyclic aromatic hydrocarbons in the roadside environment. Atmospheric Environment, 37, 17, (2003), 2391-2402.

DOI: 10.1016/s1352-2310(03)00122-5

[11] J. Sternbeck, Å. Sjödin and K. Andréasson, Metal emissions from road traffic and the influence of resuspension—results from two tunnel studies. Atmospheric Environment, 36, 30, (2002), 4735-4744.

DOI: 10.1016/s1352-2310(02)00561-7

[12] W. Jiang, A. Sha, J. Xiao, Y. Li, and Y. Huang, Experimental study on filtration effect and mechanism of pavement runoff in permeable asphalt pavement. Construction and Building Materials, 100 (2015), 102-110.

DOI: 10.1016/j.conbuildmat.2015.09.055

[13] D. K. Hein, Development of an ASCE. Standard for Permeable Interlocking Concrete Pavement. Of the 2014 Conference of the Transportation Association of Canada Montréal, Québec, 416, (2014), 1–15.

[14] A.K. Chandrappa and K.P. Biligiri, Pervious concrete as a sustainable pavement material–Research findings and future prospects: A state-of-the-art review. Construction and Building Materials, 111 (2016), 262-274.

DOI: 10.1016/j.conbuildmat.2016.02.054

[15] C. Dierkes, L. Kuhlmann, J. Kandasamy, and G. Angelis, Pollution retention capability and maintenance of permeable pavements. In Global Solutions for Urban Drainage, (2002), 1-13.

DOI: 10.1061/40644(2002)40

[16] B.O. Brattebo and D.B. Booth, Long-term stormwater quantity and quality performance of permeable pavement systems. Water research, 37, 18 (2003), 4369-4376.

DOI: 10.1016/s0043-1354(03)00410-x

[17] S. Fach and W.F. Geiger, Effective pollutant retention capacity of permeable pavements for infiltrated road runoffs determined by laboratory tests. Water science and technology, 51, 2 (2005), 37-45.

DOI: 10.2166/wst.2005.0030

[18] M. Legret, V. Colandini and C. Le Marc, Effects of a porous pavement with reservoir structure on the quality of runoff water and soil. Science of the total environment, 189 (1996), 335-340.

DOI: 10.1016/0048-9697(96)05228-x

[19] D.P. Sounthararajah, P. Loganathan, J. Kandasamy and S. Vigneswaran, Removing heavy metals using permeable pavement system with a titanate nano-fibrous adsorbent column as a post treatment. Chemosphere, 168, (2017), 467-473.

DOI: 10.1016/j.chemosphere.2016.11.045

[20] U. Kuruppu, A. Rahman and A. Sathasivan, Modifications to permeable pavement structure to achieve improved heavy metal attenuation in stormwater runoff. In Proceedings: 11th Annual Tech Connect World Innovation Conference and Expo, Held Jointly with the 20th Annual Nanotech Conference and Expo, the 2018 SBIR/STTR Spring Innovation Conference, and the Defense Tech Connect DTC Spring Conference, May 13-16 (2018), Anaheim, CA (pp.168-171).

[21] O.S. Amuda, A. Giwa and I.A. Bello, Removal of heavy metal from industrial wastewater using modified activated coconut shell carbon. Biochemical Engineering Journal, 36, 2 (2007), pp.174-181.

DOI: 10.1016/j.bej.2007.02.013

[22] C. Namasivayam and M.V. Sureshkumar, Removal of chromium (VI) from water and wastewater using surfactant modified coconut coir pith as a biosorbent. Bioresource technology, 99, 7, (2008), 2218-2225.

DOI: 10.1016/j.biortech.2007.05.023

[23] C. Aravind, K. Chanakya and K. Mahindra, Removal of heavy metals from industrial waste water using coconut coir. International Journal of Civil Engineering and Technology, 8, 4 (2017).

[24] A. Papandreou, C.J. Stournaras and D. Panias, Copper and cadmium adsorption on pellets made from fired coal fly ash. Journal of Hazardous Materials, 148, 3 (2007), 538-547.

DOI: 10.1016/j.jhazmat.2007.03.020

[25] B.E. Hegazy, H.A. Fouad and A.M. Hassanain, Incorporation of water sludge, silica fume, and rice husk ash in brick making. Advances in environmental research, 1, 1 (2012), 83-96.

DOI: 10.12989/aer.2012.1.1.083

[26] Y. Bulut, Removal of heavy metals from aqueous solution by sawdust adsorption. Journal of environmental sciences, 19, 2, (2007) pp.160-166.

DOI: 10.1016/s1001-0742(07)60026-6

[27] S.S. Ahluwalia and D. Goyal, Microbial and plant derived biomass for removal of heavy metals from wastewater. Bioresource technology, 98, 12, (2007), 2243-2257.

DOI: 10.1016/j.biortech.2005.12.006

[28] Guide for Design of Pavement Structures. American Association of State Highway and Transportation Officials (AASHTO), Washington, D.C., (1993).

[29] ASTM International, Standard test method for Marshall test. ASTM D1559. West Conshohocken, PA: American Society for Testing and Materials (2002).

[30] ASTM C136/C136M-14, American Society for Testing and Materials, C136/C136M-14, Standard Test Method for Pulse Velocity through Concrete, American Society for Testing and Materials, C597-09, ASTM, PA, USA (2009).

[31] ASTM D5856-95, Test method for measurement of hydraulic conductivity of porous material using a rigid-wall, compaction-mold permeameter. Annual book of ASTM standards, Sect. 4, Vol 04.08, Soil and Rock; Building Stones, ASTM International, West Conshohocken, PA (2007).

DOI: 10.1520/d5856

[32] ASTM D7063/D7063M-11, Standard Test Method for Effective Porosity and Effective Air Voids of Compacted Bituminous Paving Mixture Samples, ASTM International, United States. (2011).

DOI: 10.1520/d7063_d7063m-11

[33] V. Colandini, M. Legret, Y. Brosseaud, and J.D. Baladès, Metallic pollution in clogging materials of urban porous pavements. Water Science and Technology, 32, 1 (1995), 57-62.

DOI: 10.2166/wst.1995.0014

[34] M. Legret and V. Colandini, 1999. Effects of a porous pavement with reservoir structure on runoff water: water quality and fate of heavy metals. Water Science and Technology, 39, 2, (1999), 111-117.

DOI: 10.2166/wst.1999.0098

[35] D.J. Walker and S. Hurl, The reduction of heavy metals in a stormwater wetland. Ecological Engineering, 18, 4, (2002), 407-414.

DOI: 10.1016/s0925-8574(01)00101-x

[36] Z. Teng, and J. Sansalone, In situ partial exfiltration of rainfall runoff. II: Particle separation. Journal of environmental engineering, 130, 9, (2004), 1008-1020.

DOI: 10.1061/(asce)0733-9372(2004)130:9(1008)

[37] Y. Zhao and C. Zhao, Lead and zinc removal with storage period in porous asphalt pavement. Water SA, 40, 1, 2014, 65-72.

DOI: 10.4314/wsa.v40i1.8

[38] C. Pagotto, M. Legret and P. Le Cloirec, Comparison of the hydraulic behavior and the quality of highway runoff water according to the type of pavement. Water Research, 34, 18, (2000), 4446-4454.

DOI: 10.1016/s0043-1354(00)00221-9

[39] M.E. Barrett and C.B. Shaw, Benefits of porous asphalt overlay on stormwater quality. Transportation Research Record, 2025, 1 (2007), 127-134.

DOI: 10.3141/2025-13

[40] K.O. Adebowale, I.E. Unuabonah and B.I. Olu-Owolabi, Adsorption of some heavy metal ions on sulfate-and phosphate-modified kaolin. Applied clay science, 29, 2 (2005), 145-148.

DOI: 10.1016/j.clay.2004.10.003

[41] E. Eren and B. Afsin, An investigation of Cu (II) adsorption by raw and acid-activated bentonite: A combined potentiometric, thermodynamic, XRD, IR, DTA study. Journal of Hazardous materials, 151, 2-3 (2008), 682-691.

DOI: 10.1016/j.jhazmat.2007.06.040

[42] L.M. Zacaroni, Z.M. Magriotis, M. das Graças Cardoso, W.D. Santiago, J.G. Mendonça, S.S. Vieira and D.L. Nelson, Natural clay and commercial activated charcoal: Properties and application for the removal of copper from cachaça. Food control, 47 (2015), 536-544.

DOI: 10.1016/j.foodcont.2014.07.035

[43] S. Guo, Z. Dan, N. Duan, G. Chen, W. Gao, and W. Zhao, Zn (II), Pb (II), and Cd (II) adsorption from aqueous solution by magnetic silica gel: Preparation, characterization, and adsorption. Environmental Science and Pollution Research, 25, 31 (2018), 30938-30948.

DOI: 10.1007/s11356-018-3050-7

[44] C.E. Martínez and M.B. McBride, Solubility of Cd2+, Cu2+, Pb2+, and Zn2+ in aged co-precipitates with amorphous iron hydroxides. Environmental science & technology, 32, 6, (1998), 743-748.

[45] C.J. Slebi-Acevedo, P. Lastra-González, P. Pascual-Muñoz, and D. Castro-Fresno, 2019. Mechanical performance of fibers in hot mix asphalt: A review. Construction and Building Materials, 200, (2019), 756-769.

DOI: 10.1016/j.conbuildmat.2018.12.171
