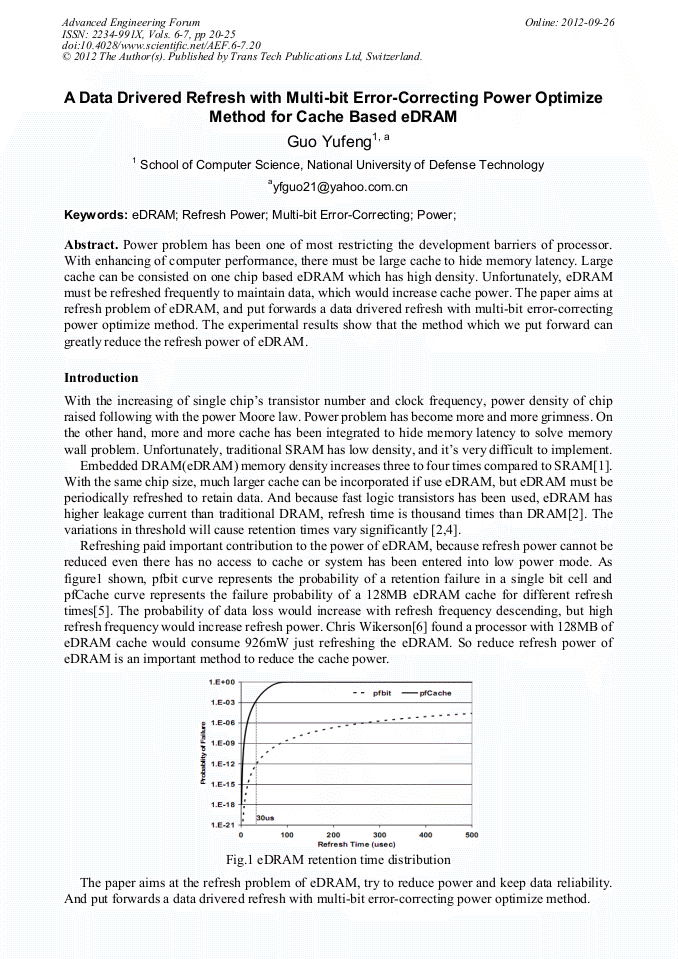

A Data Drivered Refresh with Multi-Bit Error-Correcting Power Optimize Method for Cache Based eDRAM

Abstract:

Power problem has been one of most restricting the development barriers of processor. With enhancing of computer performance, there must be large cache to hide memory latency. Large cache can be consisted on one chip based eDRAM which has high density. Unfortunately, eDRAM must be refreshed frequently to maintain data, which would increase cache power. The paper aims at refresh problem of eDRAM, and put forwards a data drivered refresh with multi-bit error-correcting power optimize method. The experimental results show that the method which we put forward can greatly reduce the refresh power of eDRAM.

• Periodical: Advanced Engineering Forum (Volumes 6-7)
• Pages: 20-25
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.6-7.20
• Online since: September 2012
• Authors: Yu Feng Guo
• Keywords: eDRAM, Multi-Bit Error-Correcting, Power, Refresh Power
