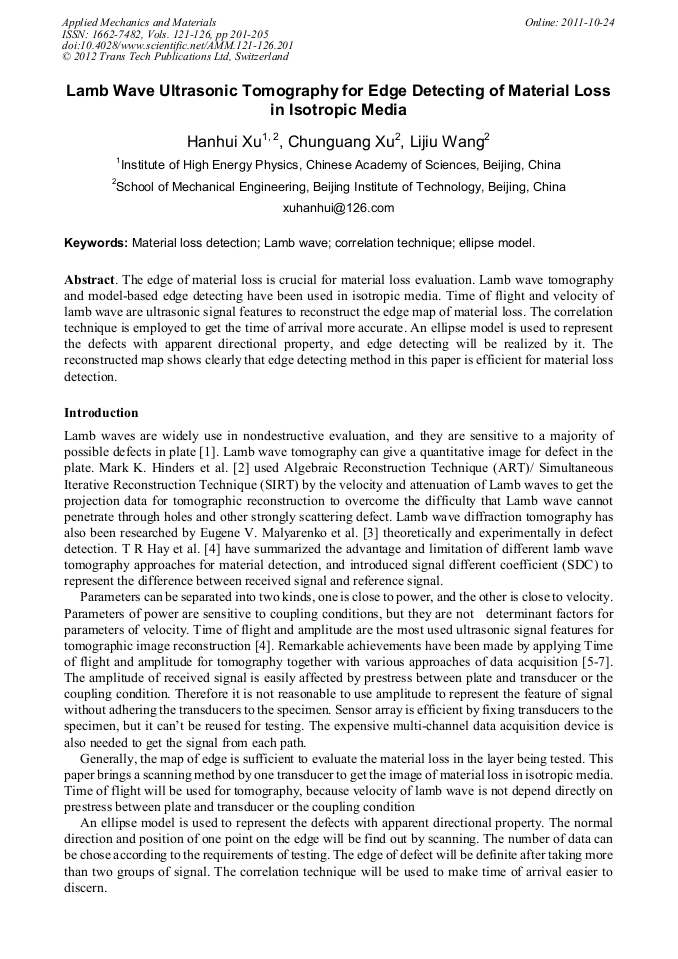

Lamb Wave Ultrasonic Tomography for Edge Detecting of Material Loss in Isotropic Media

Abstract:

The edge of material loss is crucial for material loss evaluation. Lamb wave tomography and model-based edge detecting have been used in isotropic media. Time of flight and velocity of lamb wave are ultrasonic signal features to reconstruct the edge map of material loss. The correlation technique is employed to get the time of arrival more accurate. An ellipse model is used to represent the defects with apparent directional property, and edge detecting will be realized by it. The reconstructed map shows clearly that edge detecting method in this paper is efficient for material loss detection.

• Periodical: Applied Mechanics and Materials (Volumes 121-126)
• Pages: 201-205
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.121-126.201
• Online since: October 2011
• Authors: Han Hui Xu, Chun Guang Xu, Li Jiu Wang
• Keywords: Correlation Technique, Ellipse Model, Lamb Wave, Material Loss Detection

References

[1] Guided Lamb waves for identification of damage in composite structures: A review, Journal of Sound and Vibration 295 (2006 ) 753-780.

DOI: 10.1016/j.jsv.2006.01.020

[2] E.V. Malyarenko, M.K. Hinders, Fan beam and double crosshole lamb wave tomography for mapping flaws in aging aircraft structures, J. Acoust. Soc. Am. 104 (1998) 1790.

DOI: 10.1121/1.1289663

[3] E. V. Malyarenko, M.K. Hinders, Ultrasonic Lamb wave diffraction tomography, Ultrasonics, 39 (2001) 269-281.

DOI: 10.1016/s0041-624x(01)00055-5

[4] T R Hay, R L Royer, Huidong Gao, Xiang Zhao, J L Rose, A comparison of embedded sensor Lamb ultrasonic tomography approaches for material loss detection, Smart Mater. Struct. 15(2006) 946-951.

DOI: 10.1088/0964-1726/15/4/007

[5] Rene Sicard, Jacques Goyette, Djamel Zellouf, A SAFT algorithm for lamb wave imaging of isotropic plate-like structures, Ultrasonics 39 (2002) 487-494.

DOI: 10.1016/s0041-624x(01)00087-7

[6] Kevin R. Leonard, Mark K. Hingders, Lamb wave tomography of pipe-like structures, Ultrasonics 43 (2005) 574-583.

DOI: 10.1016/j.ultras.2004.12.006

[7] Avinash C. kak, Principles of Computerized Tomographic Imaging, IEEE Press, USA, (1999).

[8] A. Nayfeh, Wave propagation in layered anisotropic media, Elsevier, USA, (1995).

[9] J.L. Rose, Ultrasonic Waves in Solid Media, Cambridge University Press, Cambridge, UK, (1999).

[10] Sedat Sisbot, A cross-correlation technique as a system evaluation tool; application to blood flow measurement in extra-corporeal circuits, Flow Measurement and Instrumentation 16 (2005) 27–34.

DOI: 10.1016/j.flowmeasinst.2004.09.001

[11] S.S. Kessler, S.M. Spearing, C. Soutis, Damage detection in composite materials using Lamb wave methods, Smart Materials and Structures 11 (2002) 269-278.

DOI: 10.1088/0964-1726/11/2/310

[12] S.H.D. Valdes, C. Soutis, A structural health monitoring system for laminated composites, Proceedings of DETC (2001) 2013-20.

[13] V. Giurgiutiu, J. Bao, W. Zhao, Piezoelectric wafer active sensor embedded ultrasonics in Beams and Plate, Society for Experimental Mechanics, 2003, Vol. 43 No. 4 431-433.

DOI: 10.1007/bf02411348

[14] Rose L. R. F., Wang C. H., Mindlin plate theory for damage detection: source solution, Journal of Acoustic Society of American, 116(1), 2004, 154-171.
