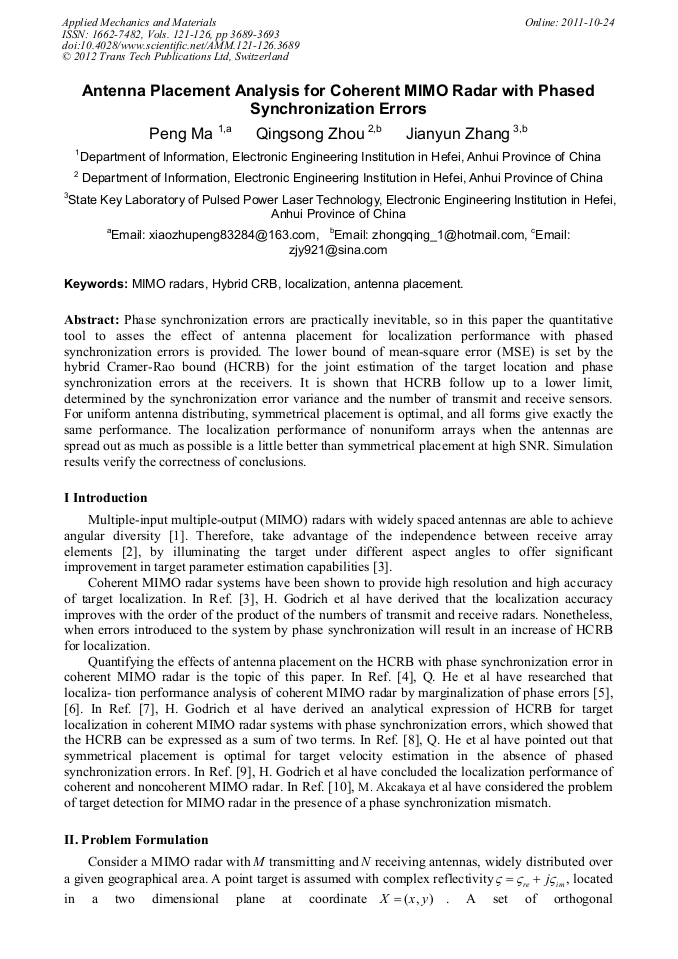

Antenna Placement Analysis for Coherent MIMO Radar with Phased Synchronization Errors

Abstract:

Phase synchronization errors are practically inevitable, so in this paper the quantitative tool to asses the effect of antenna placement for localization performance with phased synchronization errors is provided. The lower bound of mean-square error (MSE) is set by the hybrid Cramer-Rao bound (HCRB) for the joint estimation of the target location and phase synchronization errors at the receivers. It is shown that HCRB follow up to a lower limit, determined by the synchronization error variance and the number of transmit and receive sensors. For uniform antenna distributing, symmetrical placement is optimal, and all forms give exactly the same performance. The localization performance of nonuniform arrays when the antennas are spread out as much as possible is a little better than symmetrical placement at high SNR. Simulation results verify the correctness of conclusions.

• Periodical: Applied Mechanics and Materials (Volumes 121-126)
• Pages: 3689-3693
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.121-126.3689
• Online since: October 2011
• Authors: Peng Ma, Qing Song Zhou, Jian Yun Zhang
• Keywords: Antenna Placement, Hybrid CRB, Localization, MIMO Radars

References

[1] E. Fishler, A. Haimovich, R. Blum, L. Cimini, D. Chizhik and R. Valenzuela: MIMO radar: An idea whose time has come. In Proc. IEEE Radar Conference, Philadelphia, PA, Apr. 2004, pp.71-78.

DOI: 10.1109/nrc.2004.1316398

[2] A. Haimovich, R. Blum and L. Cimini: MIMO radars with widely separated antennas. IEEE Signal Processing Magazine, Jan. 2008, Vol. 25, No. 1, pp.1053-5888.

DOI: 10.1109/msp.2008.4408448

[3] H. Godrich, A. Haimovich, and R. S. Blum: Cramer Rao bound on target localization estimation in MIMO radar systems. Information, Science and Systems, CISS, 42nd annual Conf., Mar. 2008, pp.134-139.

DOI: 10.1109/ciss.2008.4558509

[4] Q. He and R. S. Blum. Cramer-Rao bound for MIMO radar target localization with phase errors. IEEE Trans, On Signal Processing. Letters, Jan. 2010, Vol. 17, pp.83-86.

DOI: 10.1109/lsp.2009.2032994

[5] Y. Rockah and P. M. Schultheiss: Array shape calibration using sources in unknown locations-part I: far-field sources. In IEEE Trans. Acoust., Speech, Signal Proc., March 1987, Vol. 35, pp.286-299.

DOI: 10.1109/tassp.1987.1165144

[6] Y. Rockah, H. Messer and P. M. Schultheiss: Localization performance of arrays subject to phase errors. In IEEE Trans. Aero and Elect. Systems, July 1988, Vol. 24, pp.402-410.

DOI: 10.1109/7.7182

[7] H. Godrich and A. Haimovich: Localization performance of coherent MIMO radar systems subject to phase synchronization errors. In Proc. 4th international symposium, on communications, control and signal processing, ISCCSP, mar. 2010, Limassol, Cyprus, pp: 1-5.

DOI: 10.1109/isccsp.2010.5463445

[8] Q He, Blum R S, H. Godrich, and A. Haimovich: Target velocity estimation and antenna placement for MIMO radar with widely separated antennas. IEEE Trans, On Signal Processing, Feb. 2010, Vol. 4, No. 1, pp.79-100.

DOI: 10.1109/jstsp.2009.2038974

[9] H. Godrich, A. Haimovich, and R. S. Blum: Target Localization Accuracy Gain in MIMO Radar -Based Systems. IEEE Trans, On Information Theory, Vol. 56, No. 6, Jun. 2010, pp.2783-2803.

DOI: 10.1109/tit.2010.2046246

[10] M. Akcakaya and A. Nehorai: MIMO radar detection and adaptive design under a phase synchro -nization mismatch. IEEE Trans, On Signal Processing, Oct. 2010, Vol. 58, NO. 10, pp.4994-5005.

DOI: 10.1109/tsp.2010.2054088
