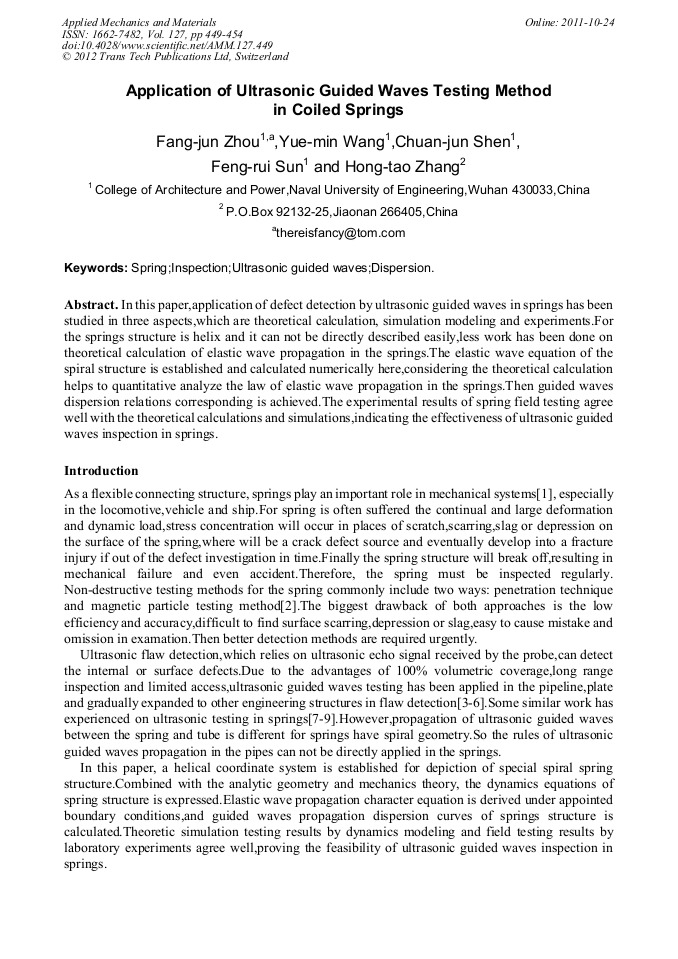

Application of Ultrasonic Guided Waves Testing Method in Coiled Springs

Abstract:

In this paper,application of defect detection by ultrasonic guided waves in springs has been studied in three aspects,which are theoretical calculation, simulation modeling and experiments.For the springs structure is helix and it can not be directly described easily,less work has been done on theoretical calculation of elastic wave propagation in the springs.The elastic wave equation of the spiral structure is established and calculated numerically here,considering the theoretical calculation helps to quantitative analyze the law of elastic wave propagation in the springs.Then guided waves dispersion relations corresponding is achieved.The experimental results of spring field testing agree well with the theoretical calculations and simulations,indicating the effectiveness of ultrasonic guided waves inspection in springs.

• Periodical: Applied Mechanics and Materials (Volume 127)
• Pages: 449-454
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.127.449
• Online since: October 2011
• Authors: Fang Jun Zhou, Yue Min Wang, Chuan Jun Shen, Feng Rui Sun, Hong Tao Zhang
• Keywords: Dispersion, Inspection, Spring, Ultrasonic Guided Waves

References

[1] W. Xiong,H. Jin: Mechanical Engineer, (2009) No. 1, p.138. in Chinese.

[2] Y.L. Wang: Measurement Technique, (2001) No. 3, p.25. in Chinese.

[3] Rose J.L., Jiao D., Spanner J. Jr.: Mater. Eval., Vol. 54 (1996), p.1310.

[4] Alleyne D. N., Cawley P.: Mater. Eval., Vol. 45 (1997) No. 4, p.540.

[5] Rose J.L.: Ultrasonic Waves in Solid Media(Cambridge University Press, England 1999).

[6] Rose J. L., J.: Pressure Vessel Technol., Vol: 124 (2002), p.273.

[7] A.J. Feng: Diesel Locomotives, (1989) No. 9, p.50. in Chinese.

[8] R.Y. Mo,Z.Y. Shang: Journal of Shaanxi Normal University(Natural Science Edition), Vol. 30 (2002) No. 3, p.71. in Chinese.

[9] L. Xian: Electric Drive for Locomotives, (2006) No. 5, p.57. in Chinese.

[10] Fabien Treyssede: Wave Motion, Vol. 121 (2008), p.457.

[11] Reismann H, Pawlik P: Elasticity theory and applications(John Wiley & sons, New York, 1980).

[12] Takahiro Hayashi, Won-Joon Song, Rose J.L.: Ultrasonics, Vol. 41 (2003), p.175.

[13] Demma, Cawley P., Lowe M., etc.: Trans. of the ASME, Vol. 127 (2005), p.127.
