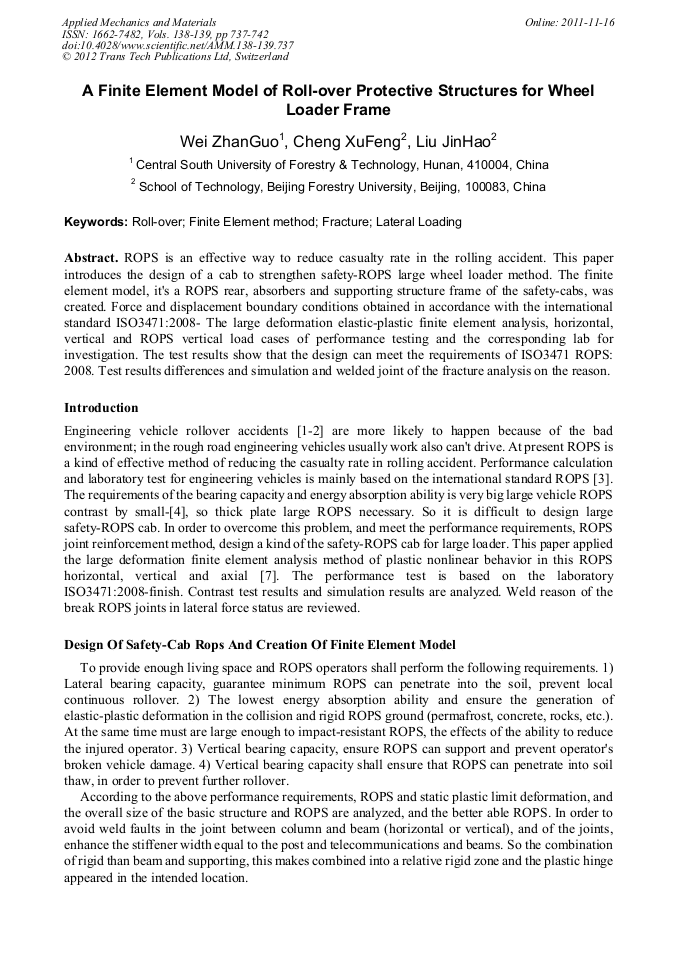

A Finite Element Model of Roll-Over Protective Structures for Wheel Loader Frame

Abstract:

ROPS is an effective way to reduce casualty rate in the rolling accident. This paper introduces the design of a cab to strengthen safety-ROPS large wheel loader method. The finite element model, it's a ROPS rear, absorbers and supporting structure frame of the safety-cabs, was created. Force and displacement boundary conditions obtained in accordance with the international standard ISO3471:2008-The large deformation elastic-plastic finite element analysis, horizontal, vertical and ROPS vertical load cases of performance testing and the corresponding lab for investigation. The test results show that the design can meet the requirements of ISO3471 ROPS: 2008. Test results differences and simulation and welded joint of the fracture analysis on the reason.

• Periodical: Applied Mechanics and Materials (Volumes 138-139)
• Pages: 737-742
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.138-139.737
• Online since: November 2011
• Authors: Zhan Guo Wei, Xu Feng Cheng, Jin Hao Liu
• Keywords: Finite Element Method (FEM), Fracture, Lateral Loading, Roll-Over

References

[1] X. L. Wei, G. Q. Wang, X. G. Wang and X. Y. Zhang, Research progress in rollover safety technologies of construction vehicle(In Chinese), Construction Machinery and Equipment, vol. 40. no. 8. pp.50-54, (2009).

[2] M. McCann, Heavy equipment and truck-related deaths on excavation work sites, Journal of Safety Research, vol. 37. no. 5. pp.511-517, (2006).

DOI: 10.1016/j.jsr.2006.08.005

[3] ISO3471: 2008. Earth-moving machinery – Roll-over protective structures - Laboratory tests and performance requirements.

DOI: 10.3403/02116410u

[4] J. X. Wang, G. Q. Wang, X. G. Liu and J. R. Lin, Plasticity limit characteristic of ZL80G wheel loader roll-over protective structure with lateral loading(In Chinese), Journal of Jilin University (Engineering and Technology Edition), vol. 6. no. 36. pp.903-907, (2006).

[5] J. X. Wang, G. Q. Wang and X. G. Liu, Nonlinear simulation and test technology for mini-wheel loader ROPS performance(In Chinese), China Mechanical Engineering, vol, 17. no, 13. pp.1325-1328, 2006.

[6] J. X. Wang, X. Yang and X. J. Yu, Nonlinear finite element analysis and test of lateral loading for two-post ROPS, Applied Mechanics and Materials. vol. 16-19, pp.866-870, 2009 (e-Engineering and Digital Enterprise Technology VII).

DOI: 10.4028/www.scientific.net/amm.16-19.866

[7] X. J. Yu, Study on the dynamic simulation of rollover safety and test for engineering vehicles(In Chinese), Jilin University, (2009).
