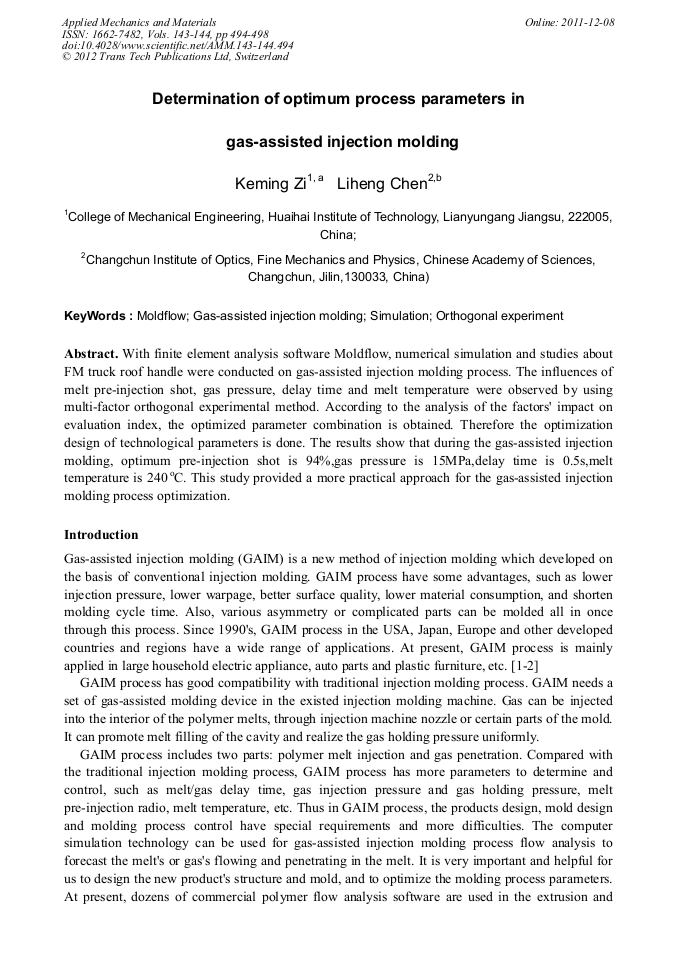

Determination of Optimum Process Parameters in Gas-Assisted Injection Molding

Abstract:

With finite element analysis software Moldflow, numerical simulation and studies about FM truck roof handle were conducted on gas-assisted injection molding process. The influences of melt pre-injection shot, gas pressure, delay time and melt temperature were observed by using multi-factor orthogonal experimental method. According to the analysis of the factors' impact on evaluation index, the optimized parameter combination is obtained. Therefore the optimization design of technological parameters is done. The results show that during the gas-assisted injection molding, optimum pre-injection shot is 94%,gas pressure is 15MPa,delay time is 0.5s,melt temperature is 240 oC. This study provided a more practical approach for the gas-assisted injection molding process optimization.

• Periodical: Applied Mechanics and Materials (Volumes 143-144)
• Pages: 494-498
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.143-144.494
• Online since: December 2011
• Authors: Ke Ming Zi, Li Heng Chen
• Keywords: Gas-Assisted Injection Molding, Moldflow, Orthogonal Experiment, Simulation

References

[1] Shih-Jung Liu, Yi-Chuan Wu, Dynamic visualization of cavity-filling process in fluid-assisted injection molding-gas versus water, Polymer Testing 26 (2007) 232–242.

DOI: 10.1016/j.polymertesting.2006.10.008

[2] Jack A very. editor. Weimin Yang, Yumei Ding, etc. Gas-assisted injection molding principle and application . Beijing chemical industry press. (2003).

[3] Jicai Liang, Yi Li, Xiaoming LI, Peifu Fu, Gas auxiliary plastic products lag the formation and evidence defects prevention. Natural sciences journal of JILIN university. 2002. vol. 32(2): pp.83-86.

[4] Yanxing Song, et al. Moldflow / MPI Liu Biao in the injection molding analysis. CAD / CAM and manufacturing information. 2003. (10): pp.36-37.

[5] Fuda Wu, Jicai Liang, Yi Li, Peifu, Fu. Gas-assisted molding exponential relationship between delay time and gas research. Jilin University (Engineering Science). 2004. vol. 32 (2): pp.268-271.

[6] Moldflow-Gas, Moldflow Reference Manual, Moldflow Pty. Ltd. 1993: 1506.

[7] Huamin Zhou, Dequn Li. Filling simulation and gas penetration molding for gas-assisted injection molding. Applied Mathematical Moldelling. 2003. (27): pp.849-860.

DOI: 10.1016/s0307-904x(03)00088-x

[8] Kui Chen. Experimental Design and Analysis (2nd edition). Tsing hua University Press. 2005. 7.

[9] Chun-dong Zhu, Fu-tao Li, Hong-yan Zhu, Optimizing the injection molding process parameters based on orthogonal test and MoldFlow, CHINA PLASTICS INDUSTRY, 2009(37): 30-32.

[10] Guan Zhijie, Lu Jun, Optimization design of technological parameters for surface quality of injection molding product based on moldfllw and orthogonal experiment, Engineering Plastics Application, 2010. 38(8): 36-38.
