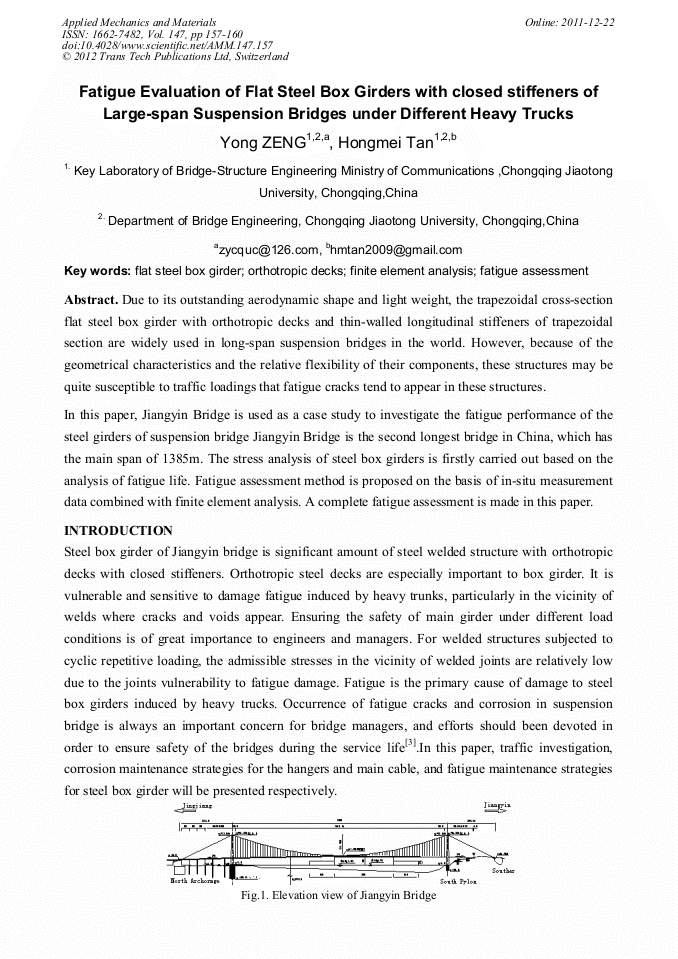

Fatigue Evaluation of Flat Steel Box Girders with Closed Stiffeners of Large-Span Suspension Bridges under Different Heavy Trucks

Abstract:

Due to its outstanding aerodynamic shape and light weight, the trapezoidal cross-section flat steel box girder with orthotropic decks and thin-walled longitudinal stiffeners of trapezoidal cross section are widely used in long-span suspension bridges in the world. However, because of the geometrical characteristics and the relative flexibility of their components, these structures may be quite susceptible to traffic loadings that fatigue cracks tend to appear in these structures. In this paper, Jiangyin Bridge is used as a case study to investigate the fatigue performance of the steel girders of suspension bridge Jiangyin Bridge is the second longest bridge in China, which has the main span of 1385m. The stress analysis of steel box girders is firstly carried out based on the analysis of fatigue life. Fatigue assessment method is proposed on the basis of in-situ measurement data combined with finite element analysis. A complete fatigue assessment is made in this paper. Key words: flat steel box girder; orthotropic decks; finite element analysis; fatigue assessment

• Periodical: Applied Mechanics and Materials (Volume 147)
• Pages: 157-160
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.147.157
• Online since: December 2011
• Authors: Yong Zeng, Hong Mei Tan
• Keywords: Fatigue Assessment, Finite Element Analysis (FEA), Flat Steel Box Girder, Orthotropic Decks

References

[1] ZHOU Shizhou. Technology Summary of Jiangyin Yangtze Bridge[M]. Beijing: China Science and Technology Press, 2005 (in Chinese).

[2] Wang Chunsheng. Assessment of remaining fatigue life and service safety for riveted steel bridges[D]. Shanghai: Tongji University, 2003 (in Chinese).

[3] Airong CHEN. Life-circle based monitor, maintenance and management research of Jiangyin Yangtse River Bridge[R] . Shanghai: Tongji University, 2007(in Chinese).

[4] Hsin-Yang Chung. Fatigue reliability and optimal inspection strategies for steel bridges.

[5] Yong ZENG. Monitoring，Maintenance and Management Strategies of Large-span Suspension Bridges in Design Lifetime[D]. Shanghai: Tongji University, (2009).

[6] Ai-rong Chen, Yong Zeng&Rujin Ma. Maintenance strategies for large span suspension bridges against fatigue and corrosion[C]. Life-Cycle Civil Engineering- Biondini &Frangopol (eds), 2008. 5. 13.

DOI: 10.1201/9780203885307.ch76

[7] Yong Zeng, Airong Chen, Rujin Ma. FE Analysis and Fatigue Evaluation of Flat Steel Box Girders with closed stiffeners of Large-span Suspension Bridges[C]. Putrajaya: InCID-ENSURING SUSTAINABLE NATION BUILDING FOR THE 21st CENTURY AND BEYOND, (2008).

DOI: 10.4028/www.scientific.net/amm.147.157
