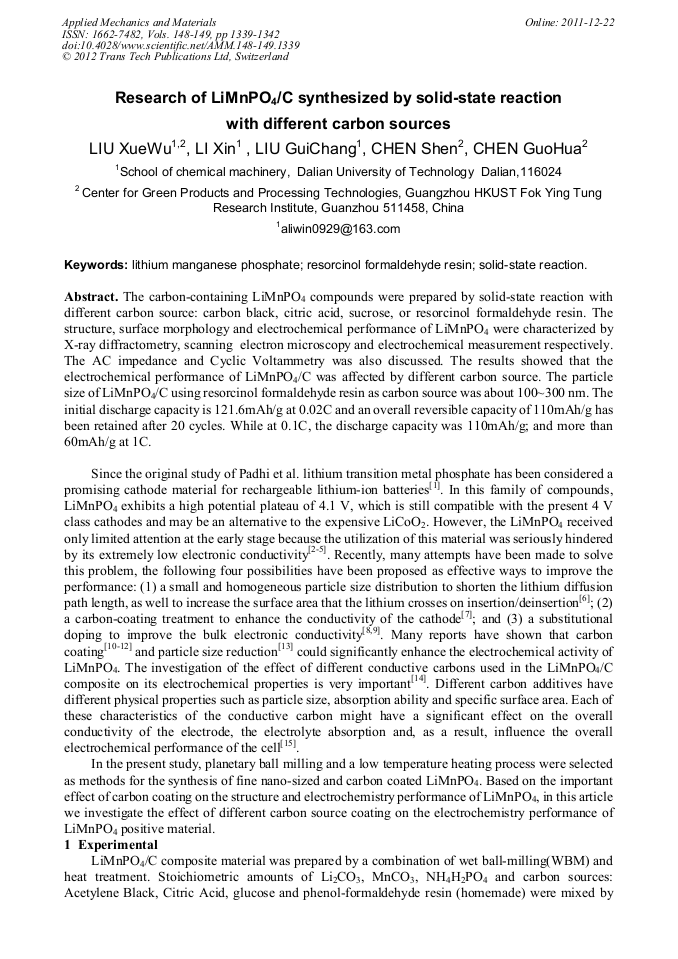

Research of LiMnPO₄/C Synthesized by Solid-State Reaction with Different Carbon Sources

Abstract:

The carbon-containing LiMnPO4 compounds were prepared by solid-state reaction with different carbon source: carbon black, citric acid, sucrose, or resorcinol formaldehyde resin. The structure, surface morphology and electrochemical performance of LiMnPO4 were characterized by X-ray diffractometry, scanning electron microscopy and electrochemical measurement respectively. The AC impedance and Cyclic Voltammetry was also discussed. The results showed that the electrochemical performance of LiMnPO4/C was affected by different carbon source. The particle size of LiMnPO4/C using resorcinol formaldehyde resin as carbon source was about 100~300 nm. The initial discharge capacity is 121.6mAh/g at 0.02C and an overall reversible capacity of 110mAh/g has been retained after 20 cycles. While at 0.1C, the discharge capacity was 110mAh/g; and more than 60mAh/g at 1C.

• Periodical: Applied Mechanics and Materials (Volumes 148-149)
• Pages: 1339-1342
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.148-149.1339
• Online since: December 2011
• Authors: Xue Wu Liu, Xin Li, Gui Chang Liu, Shen Chen, Guo Hua Chen
• Keywords: Lithium Manganese Phosphate, Resorcinol Formaldehyde Resin, Solid-State Reaction

References

[1] Padhi A K, Najundaswamy K S, Goodenough J B. J Electrochem Soc, 1997, 144(4): 1188-1194.

[2] J. Molenda, W. Ojczyk, K. Swierczek. Solid State Ionics, 2006, 177(26-32): 2617-2624.

DOI: 10.1016/j.ssi.2006.03.047

[3] J. Yao, S. Bewlay, K. Konstantionv. J. Alloys Compd. 425(2006): 362-366.

[4] C.M. Burba, R. Frech. J. Power Sources. 2007, 172(2): 870-876.

[5] Yamada A, Hosoya M, Chung S C, et al. J Power Sources, 2003, 119 (1) : 232-238.

[6] A. Yamada, S.C. Chung, K. Hinokuma. J. Electrochem. Soc. 148 (2001) A224-A229.

[7] H. Huang, S.C. Yin, L.F. Nazar. Solid State Lett. 2001, 4(10): A170-A172.

[8] J.F. Ni, H.H. Zhou, J.T. Chen, X.X. Zhang. Mater. Lett. 59(2005): 2361-2365.

[9] T. Nakamura, Y. Miwa, M. Tabuchi, Y. Yamada. J. Electrochem. Soc. 153 (2006): A1108-A1114.

[10] Z. Bakenov, I. Taniguchi. Electrochem. Commun. 12(2010): 75-78.

[11] Y.R. Wang, Y.F. Yang, Y.B. Yang, H.X. Shao. Solid State Commun. 150(2010): 81-85.

[12] T.N.L. Doan, Z. Bakenov, I. Adv. Powder Technol[J]. 21(2010): 187-196.

[13] V. Koleva, R. Stoyanova, E. Zhecheva. Chem. Phys. 121(2010): 370-377.

[14] Q. Zhang, G. Peng, G. Wang, M. Qu, Z.L. Yu. Solid State Ionics 180(2009): 698-702.

[15] Zhumabay Bakenov, Izumi Taniguchi. J. Power Sources, 2010, 195(21): 7445-7451.
