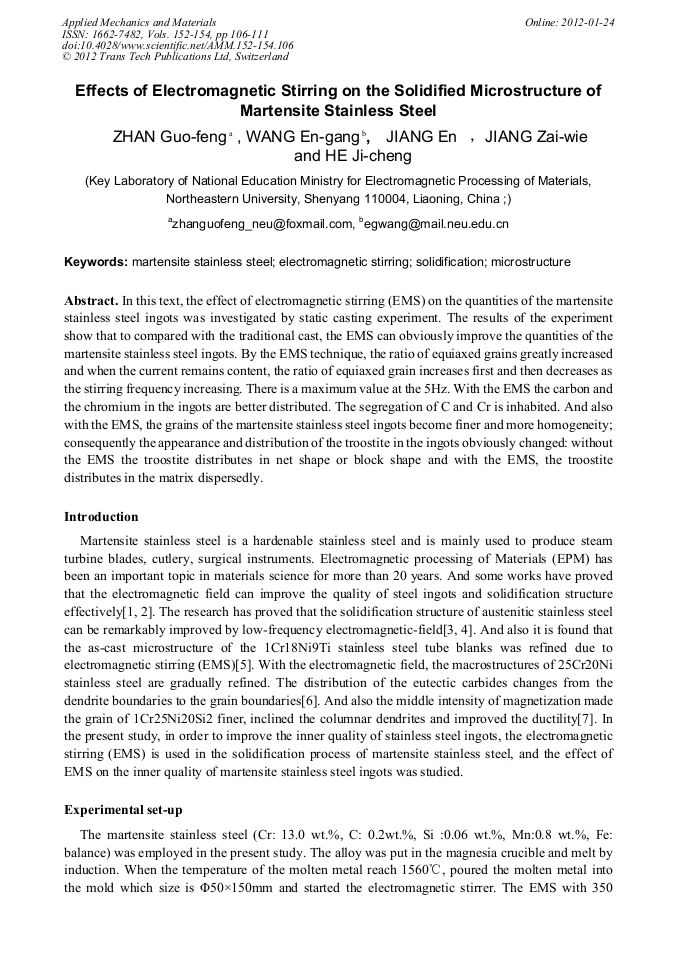

Effects of Electromagnetic Stirring on the Solidified Microstructure of Martensite Stainless Steel

Abstract:

In this text, the effect of electromagnetic stirring (EMS) on the quantities of the martensite stainless steel ingots was investigated by static casting experiment. The results of the experiment show that to compared with the traditional cast, the EMS can obviously improve the quantities of the martensite stainless steel ingots. By the EMS technique, the ratio of equiaxed grains greatly increased and when the current remains content, the ratio of equiaxed grain increases first and then decreases as the stirring frequency increasing. There is a maximum value at the 5Hz. With the EMS the carbon and the chromium in the ingots are better distributed. The segregation of C and Cr is inhabited. And also with the EMS, the grains of the martensite stainless steel ingots become finer and more homogeneity; consequently the appearance and distribution of the troostite in the ingots obviously changed: without the EMS the troostite distributes in net shape or block shape and with the EMS, the troostite distributes in the matrix dispersedly.

• Periodical: Applied Mechanics and Materials (Volumes 152-154)
• Pages: 106-111
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.152-154.106
• Online since: January 2012
• Authors: Guo Feng Zhan, En Gang Wang, En Jiang, Zai Wei Jiang, Ji Cheng He
• Keywords: Electromagnetic Stirring, Martensite Stainless Steel, Microstructure, Solidification

References

[1] O. Pesteanu, Electromagnetic mould stirring with higher supply frequency, Isij International. 48 (2008) 251-253.

DOI: 10.2355/isijinternational.48.251

[2] R. Otake, T. Yamada, R. Hirayama, et al., Effects of Double-Axis Electromagnetic Stirring in Continuous Casting, Ieee Transactions on Magnetics. 44 (2008) 4517-4520.

DOI: 10.1109/tmag.2008.2003149

[3] S. -c. Zhou, H. -j. Lu, J. -s. Rao, et al., Effect of electromagnetic stirring on solidification structure of austenitic stainless steel in horizontal continuous casting, China Foundry. 4 (2007) 198-201.

[4] S. -c. Zhou, C. -g. Bai, Y. Lei, et al., Effect of low-frequency rotary electromagnetic-field on solidification structure of continuous casting austenitic stainless steel, Journal of Central South University of Technology. 16 (2009) 360-364.

DOI: 10.1007/s11771-009-0061-z

[5] G. Lin, Y.S. Yang, F.A. Hua, et al., Solidification microstructure and deformation of stainless steel 1Cr18Ni9Ti cast by electromagnetic centrifugal casting, Acta Metallurgica Sinica. 39 (2003) 1233-1237.

[6] X.Q. Wu, Y.S. Yang, J.S. Zhang, et al., Structure characteristics in industrially centrifugally cast 25Cr20Ni stainless steel tubes solidified under different electromagnetic field intensity, Journal of Materials Engineering and Performance. 8 (1999).

DOI: 10.1007/s11665-999-0004-8

[7] H.Y. LENG, W.X. HAN , K. YANG, et al., Effect of Electromagnetic Stirring on the Microstructure and Property of Heat Resistant Steel Produced by Centrifugal Casting, JOURNAL OF IRON AND STEEL RESEARCH. 12 (2000) 18-21.
