Deformation Microstructures and Textures of Cast Mg-3Sn-2Ca Alloy under Uniaxial Hot Compression

C. Dharmendra; Kamineni Pitcheswara Rao; Y.V.R.K. Prasad; N. Hort; K.U. Kainer

doi:10.4028/www.scientific.net/AMM.152-154.322

Paper Titles

Cantalever Protection Aluminum Profiles Extrusion Die Design Method and Numerical Simulation
p.301

Synthesis of 2-Acetoxy-6-Naphthoic Acid with P-Methylbenzenesulfonic Acid as Catalyst
p.306

Rockwell Hardness Modeling Using Indented Volume
p.312

Study on Electric Contact Heating for Nodular Cast Iron 600-3
p.316

Deformation Microstructures and Textures of Cast Mg-3Sn-2Ca Alloy under Uniaxial Hot Compression
p.322

Microstructures and Properties of Hypoeutectic Al-Si Alloy Extruded in Semi-Solid State
p.326

Computerized Sheet-Metal Inspection Based on the Cross Network Communication
p.331

Relationship between Valence Electron Structures and Mechanical Properties of ZL203
p.336

Theoretical Calculation of the Polytypism Transition Temperature of Titanium Alloys on the Valence Electron Level
p.342

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 152-154Deformation Microstructures and Textures of Cast...

Deformation Microstructures and Textures of Cast Mg-3Sn-2Ca Alloy under Uniaxial Hot Compression

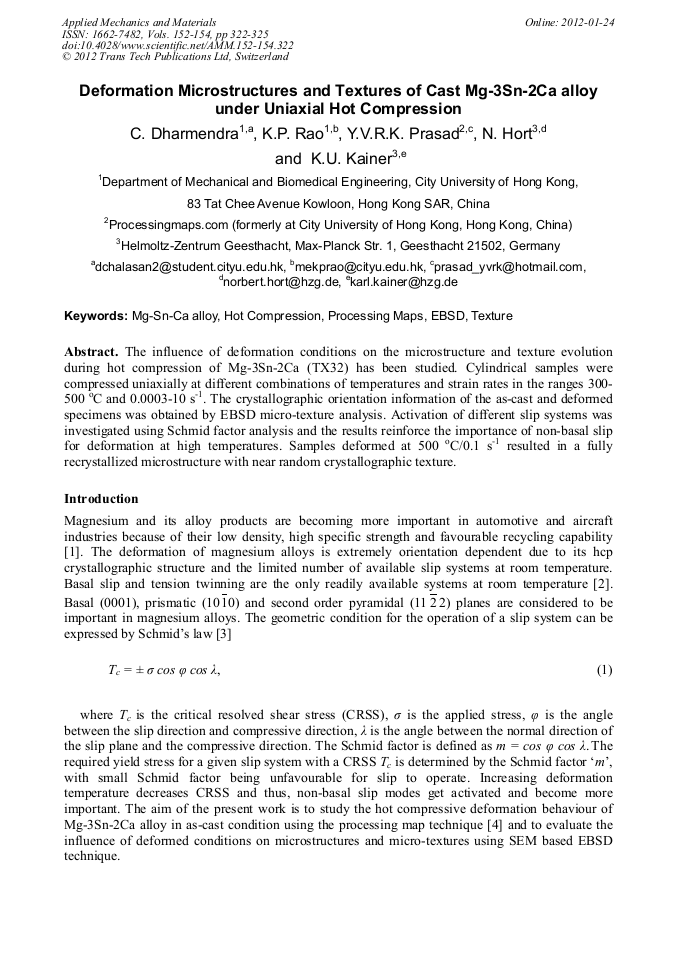

Abstract:

The influence of deformation conditions on the microstructure and texture evolution during hot compression of Mg-3Sn-2Ca (TX32) has been studied. Cylindrical samples were compressed uniaxially at different combinations of temperatures and strain rates in the ranges 300-500 oC and 0.0003-10 s^-1. The crystallographic orientation information of the as-cast and deformed specimens was obtained by EBSD micro-texture analysis. Activation of different slip systems was investigated using Schmid factor analysis and the results reinforce the importance of non-basal slip for deformation at high temperatures. Samples deformed at 500 oC/0.1 s^-1 resulted in a fully recrystallized microstructure with near random crystallographic texture.
