The Application of SEA in Automobile Dash Sound Transmission Loss Numerical Calculation

Abstract:

In order to study the structure-borne sound radiation, statistical energy analysis (SEA) was adopted and an automobile dash was divided into 31 subsystems; the modal density, damping loss factor (DLF) and coupling loss factor (CLF) were acquired, which were the basic parameters of SEA; then dash transmission loss (TL) at the middle and high frequency (MHF) ranging from 100 Hz to 10k Hz was calculated. The most outstanding advantage of SEA was that calculation could be fast done, which was more convenient than FEM (Finite Element Method) and BEM (Boundary Element Method). Finally, a TL experiment was designed to verify the feasibility and reliability of numerical calculation. The 1/3 octave TL curves of the simulation and experiment show a good consistency and the error is engineering permitted, which means SEA simulation possesses high credibility and can guide the engineering research.

You might also be interested in these eBooks

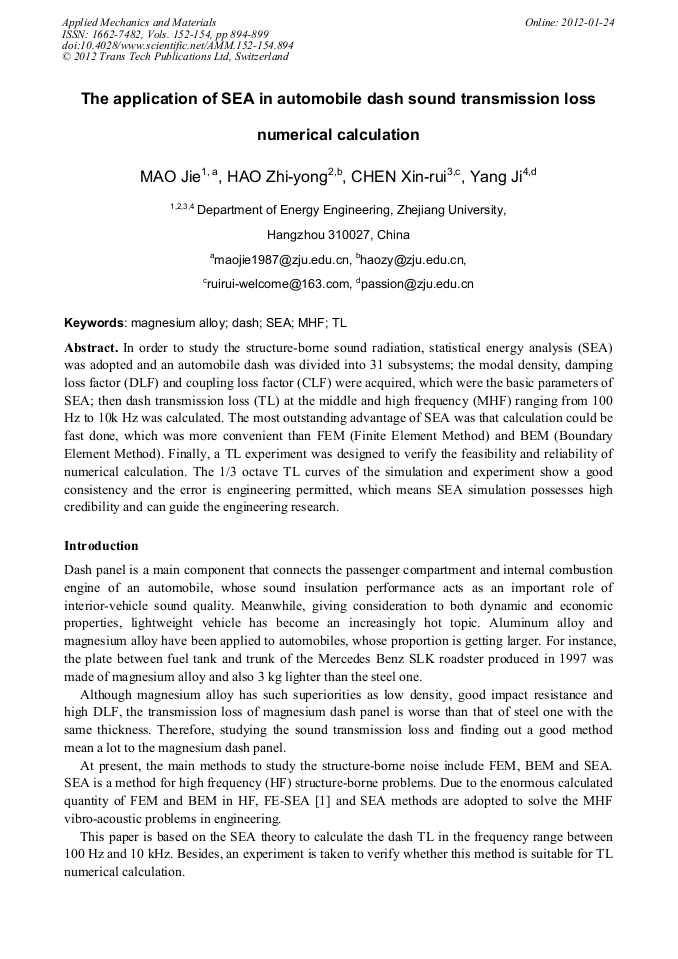

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 152-154)

Pages:

894-899

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.152-154.894

Citation:

Cite this paper

Online since:

January 2012

Authors:

Jie Mao, Zhi Yong Hao, Xin Rui Chen, Ji Yang

Keywords:

Dash, Magnesium Alloy, MHF, SEA, TL

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] V. Cotoni, B. Gardner, P. Shorter: Demonstration of hybrid FE-SEA analysis of structure-borne noise in the mid frequency range [C]. SAE, 2005-01-2331.

DOI: 10.4271/2005-01-2331

Google Scholar

[2] Wang Deng-feng, Chen Shu-ming. Car interior noise prediction and experimentation using statistical energy analysis [J]. Journal of Jilin University (Engineering and Technology Edition), 2009: pp.69-70 [in Chinese].

Google Scholar

[3] Yao De-yuan, Wang Qi-zheng. Theory and application of statistical energy analysis [M]. Beijing: Beijing Institute of Technology Press, 1995: pp.30-31 [in Chinese].

Google Scholar

[4] Maxime Bolduc, Nourddine Atalla. Measurement of SEA damping loss factor for complex structure [J].

Google Scholar

[5] Chen Xin-rui, Hao Zhi-yong, Yang Chen: Experimental study on damping performance of magnesium alloy AZ31 [J]. Journal of Zhejiang University (Engineering Science), 2010, 44 (1): pp.19-22 [in Chinese].

Google Scholar

[6] Burroughs Courtney B: an introduction to statistical energy analysis [J]. J Acoust Soc Am, 1997, 101(4): pp.1779-1789.

Google Scholar
