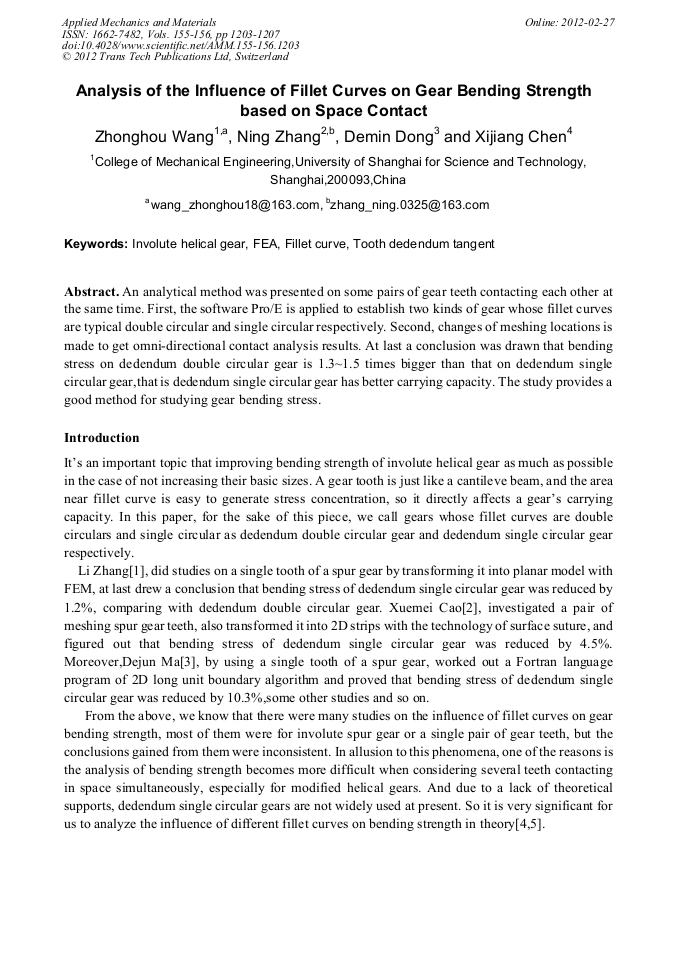

Analysis of the Influence of Fillet Curves on Gear Bending Strength Based on Space Contact

Abstract:

An analytical method was presented on some pairs of gear teeth contacting each other at the same time. First, the software Pro/E is applied to establish two kinds of gear whose fillet curves are typical double circular and single circular respectively. Second, changes of meshing locations is made to get omni-directional contact analysis results. At last a conclusion was drawn that bending stress on dedendum double circular gear is 1.3~1.5 times bigger than that on dedendum single circular gear,that is dedendum single circular gear has better carrying capacity. The study provides a good method for studying gear bending stress.

• Periodical: Applied Mechanics and Materials (Volumes 155-156)
• Pages: 1203-1207
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.155-156.1203
• Online since: February 2012
• Authors: Zhong Hou Wang, Ning Zhang, De Min Dong, Xi Jiang Chen
• Keywords: Fillet Curve, Finite Element Analysis (FEA), Involute Helical Gear, Tooth Dedendum Tangent

References

[1] Li Zhang and Jun Wang: Mining machinery, Vol. 6(1997), p.45 (In Chinese).

[2] Xuemei Caoand Jun Wang: Tooth root bending stress analysis of the transition curve, Machinery, Vol. 4(2003), p.46 (In Chinese).

[3] Dejun Ma: Journal of Tanks and armored cars and volume of the engine, Vol. 1(1993), p.57(In Chinese).

[4] Fenai Yang: FEA of helical gear contact stress based on the accurate models, Mechanical science and technology, Vol. 3(2003), p.206 (In Chinese).

[5] Zenghui Fan and Yongxi Zhao: Finite element analysis of the inclined gear contact, Mechanical drive, (2010), p.68 (In Chinese).
