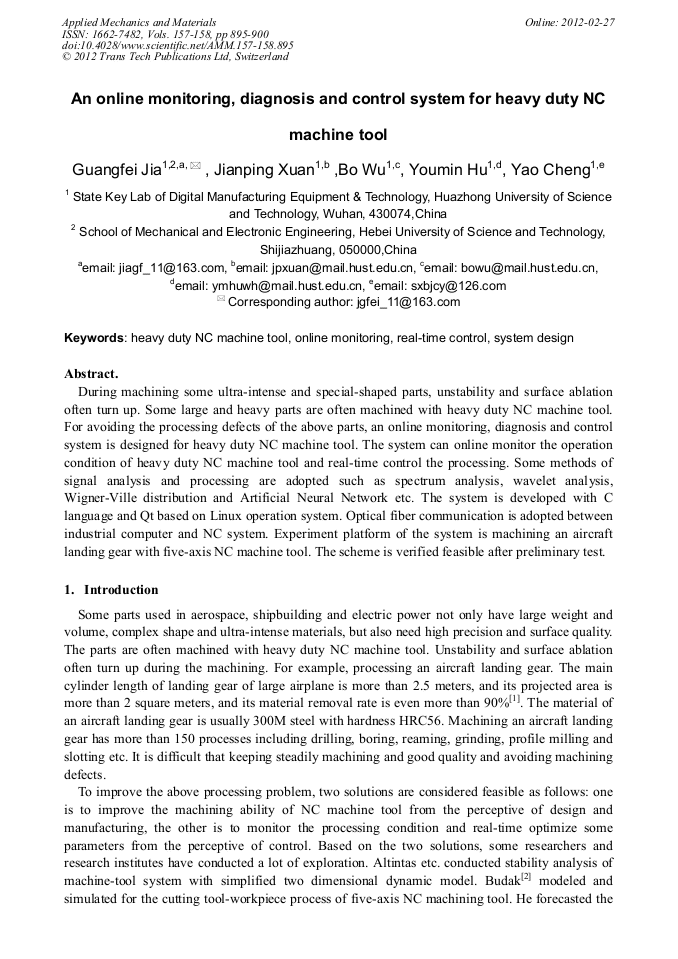

An Online Monitoring, Diagnosis and Control System for Heavy Duty NC Machine Tool

Abstract:

During machining some ultra-intense and special-shaped parts, unstability and surface ablation often turn up. Some large and heavy parts are often machined with heavy duty NC machine tool. For avoiding the processing defects of the above parts, an online monitoring, diagnosis and control system is designed for heavy duty NC machine tool. The system can online monitor the operation condition of heavy duty NC machine tool and real-time control the processing. Some methods of signal analysis and processing are adopted such as spectrum analysis, wavelet analysis, Wigner-Ville distribution and Artificial Neural Network etc. The system is developed with C language and Qt based on Linux operation system. Optical fiber communication is adopted between industrial computer and NC system. Experiment platform of the system is machining an aircraft landing gear with five-axis NC machine tool. The scheme is verified feasible after preliminary test.

• Periodical: Applied Mechanics and Materials (Volumes 157-158)
• Pages: 895-900
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.157-158.895
• Online since: February 2012
• Authors: Guang Fei Jia, Jian Ping Xuan, Bo Wu, You Min Hu, Yao Cheng
• Keywords: Heavy-Duty NC Machine Tool, Online Monitoring, Real-Time Control, System Design

References

[1] Zhang Yun, Mei Xuesong, Spindle unit of NC machine tool in aviation manufacturing and its development trend, Aeronautical Manufacturing Technology2(2010)26-29.

[2] E. Budak, E. Ozturk, L.T. Tunc, Modeling and simulation of 5-axis milling processes，CIRP Annals - Manufacturing Technology 58 (2009) 347-350.

DOI: 10.1016/j.cirp.2009.03.044

[3] D. Huo, et al., A holistic integrated dynamic design and modeling approach applied to the development of ultraprecision micro-milling machines, International Journal of Machine Tools and Manufacture (2009).

DOI: 10.1016/j.ijmachtools.2009.10.009

[4] Min-Chun Pan, Po-Ching Li, Yong-Ren Cheng, Remote online machine condition monitoring system, Measurement 41(2008) 912-921.

DOI: 10.1016/j.measurement.2008.01.004

[5] Li Hailu, Liu Zhaoyang, Cai Wenxia, Researched design of the condition monitoring and fault diagnosis system for larger rotary machinery, Turbine Technology Vol. 48(4)(2006)262-266.

[6] Liu Yongkuo, Xia Hong, Xie Chunli, Shen Ji, Research on monitoring and fault diagnosis system of nuclear power equipment, Atomic Energy Science and Technology Vol. 42(3)(2008)200-205.

[7] Zhao Haiming, Bu Yingyong, He Xuewen, Development of on-line condition monitoring and fault diagnosis system of fan, Mechatronics 5(2006)67-69.

[8] F. Al-Badour, M. Sunar, L. Cheded, Vibration analysis of rotating machinery using time–frequency analysis and wavelet techniques, Mechanical Systems and Signal Processing 25 (2011) 2083–2101.

DOI: 10.1016/j.ymssp.2011.01.017

[9] Peng Daogang, Zhang Hao, Li Hui, Embedded remote condition monitoring and fault diagnosis systems for large generating units, East China Electric Power Vol. 36 (2)(2008)127-130.

[10] Liping Wang, Qianru Wei, Hangxin Wei, Research on the remote monitoring and control system for heating supply pipeline based on GPRS and ZigBee, Applied mechanics and Materials (Volume65), 117-121.

DOI: 10.4028/www.scientific.net/amm.65.117

[11] Min Yue, Wushan Cheng, Minliang Zhang, Design and research on remote monitoring system of CNC equipments based on web, Applied mechanics and Materials (Volume 65), 268-271.

DOI: 10.4028/www.scientific.net/amm.65.268

[12] Zhongan Yu, Weiqin Tan, Zhenghua Xie, The design and application of pharmaceutical factory monitoring system based on ethernet, Applied mechanics and Materials (Volume 65), 341-344.

DOI: 10.4028/www.scientific.net/amm.65.341
