For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Effection of Wood Extractives on Burning Time of Fuel for Add-On Bioenergy
p.52
Orthogonal Analysis on Hardness of Nickel/Graphite Sealing Coating
p.55
Effect of Laser Processing on Electroless Copper Deposition on Modified Plastic
p.59
Influences of Process Parameters on the Forming of YAG Phase
p.65
Preparation and ESR Properties of Silicon Nitride Nanowires
p.69
Gearbox Non-Ferrous Metal Bearing Wear Condition Monitoring Based on Oil Analysis
p.73
Solar Shading Performance of Different Louver Shading Materials in Hot Summer and Cold Winter Zone
p.77
Research on Material Selection Standard of Graded Crushed Stone Base Course for Municipal Road
p.81
A Comparative Study on Building Energy Performance between Movable and Fixed Shading Materials
p.85

Preparation and ESR Properties of Silicon Nitride Nanowires

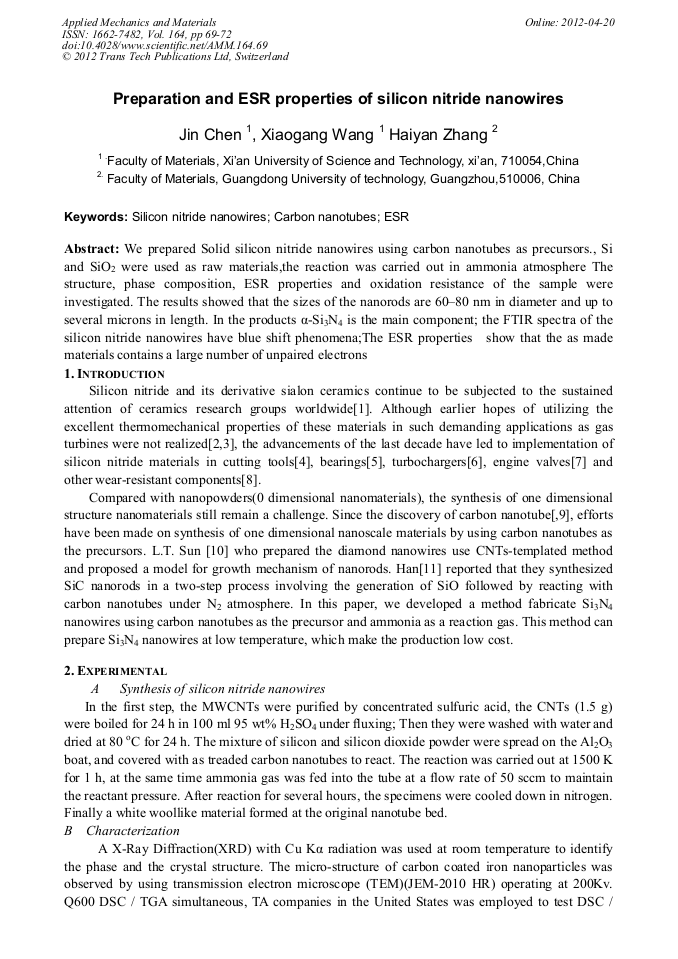

Article Preview

Abstract:

We prepared Solid silicon nitride nanowires using carbon nanotubes as precursors., Si and SiO2 were used as raw materials,the reaction was carried out in ammonia atmosphere The structure, phase composition, ESR properties and oxidation resistance of the sample were investigated. The results showed that the sizes of the nanorods are 60–80 nm in diameter and up to several microns in length. In the products α-Si3N4 is the main component; the FTIR spectra of the silicon nitride nanowires have blue shift phenomena;The ESR properties show that the as made materials contains a large number of unpaired electrons

You might also be interested in these eBooks
Applied Mechanics, Materials, Industry and Manufacturing Engineering View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 164)

Pages:

69-72

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.164.69

Citation:

Cite this paper

Online since:

April 2012

Authors:

Jin Chen, Xiao Gang Wang, Hai Yan Zhang

Keywords:

Carbon Nanotube (CN), ESR, Silicon Nitride Nanowires

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Frank L. Riley. J Am Ceram Soc. 83(2) (2009): 245-265.

Google Scholar

[2] Guang-Quan Mo, Jian-Shan Ye , Wei De Zhang. Electrochimica Acta 55 (2009): 511–515.

Google Scholar

[3] P. Bhandhubanyong, T. Akhadejdamrong. Journal of Materials Processing Technology 63 (1997) : 277-280.

Google Scholar

[4] Fei Teng, Shuhui Liang, Buergen Gaugeu, Ruilong Zong, Wenqing Yao. Catalysis Communications 8 (2007) : 1748–1754.

Google Scholar

[5] Weiqiang Han , Shoushan Fan, Qunqing Li, Binglin Gu. Appl. Phys. Lett. 71 (1997) : 2271-2273.

Google Scholar

[6] She J H, Yang J F, Danel D J, et al. J Am Ceram Soc 86(4)(2003): 738-740.

Google Scholar

[7] Zhang Y, Chen Y B, Srinvasarao L, et al. J Am Ceram Soc, 88(1) (2005): 114-120.

Google Scholar

[8] A. Diaz, S. Hampshire. J. Eur. Ceram. Soc. 24 (2004) : 413-419.

Google Scholar

[9] J.F. Yang, S.Y. Shan, R. Janssen, G. Schneider, T. Ohji, S. Kanzaki. Acta Mater. 53 (10) (2005) 2981-2990.

DOI: 10.1016/j.actamat.2005.03.011

Google Scholar

[10] W. Han, S. Fan, Q. Li, W. Liang, B. Gu, and D. Yu, Chem. Phys. Lett. 265(1997), 374-377.

Google Scholar

[11] L.T. SunT, J.L. Gong, Z.Y. Zhu, D.Z. Zhu, Z.X. Wang, W. Zhang et al. Diamond & Related Materials. 14 (2005): 749-752.

Google Scholar

[12] S Ze, S. M, Bell . J Appl Phys. 38 (7) (2009): 2951-295.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
