Sensitivity of Modeling in Sheet Metal Three-Point Cyclic Bending

Abstract:

The aim of this paper is to examine the modeling sensitivity of the three-point bending test by using finite element method (FEM). Three-point bending test has been frequently used to determine the material hardening parameters of sheet metal. As a part of the parameter identification, three-point bending has been simulated and analyzed using FEM. To minimize the computation time, shell element was used to model the sheet metal. The analysis includes implicit and explicit procedures. In particular, this study examines the effect of FEM results by varying the element type, mesh density, and number of integration point. It is shown that the implicit procedure analyze the simulation with very less computation time compared to the explicit procedure. The results also show that only the number of integration point has significant effect on the simulation in both implicit and explicit procedures.

You might also be interested in these eBooks

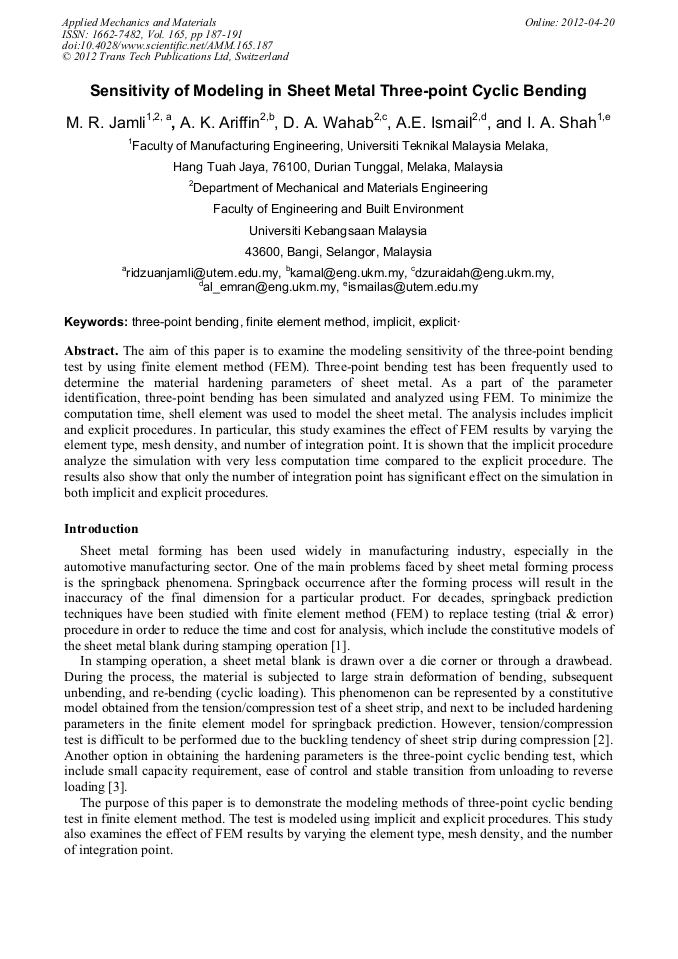

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 165)

Pages:

187-191

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.165.187

Citation:

Cite this paper

Online since:

April 2012

Authors:

M.R. Jamli, Ahmad Kamal Ariffin, D.A. Wahab, A.E. Ismail, I.A. Shah

Keywords:

Explicit, Finite Element Method (FEM), Implicit, Three-Point Bending

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Meinders, T., et al., International Journal of Machine Tools and Manufacture, 48(5) (2008) pp.499-514.

Google Scholar

[2] Zhao, K.M. and J.K. Lee, Journal of Engineering Materials and Technology, 123(4) 2001 pp.391-397.

Google Scholar

[3] Zhao, K.M. and J.K. Lee, Journal of Materials Processing Technology, 122(1) 2002 pp.6-11.

Google Scholar

[4] Eggertsen, P. -A. and K. Mattiasson, International Journal of Material Forming, (2010) pp.1-18.

Google Scholar

[5] Eggertsen, P.A. and K. Mattiasson, 52(6) (2010) pp.804-818.

Google Scholar

[6] Eggertsen, P.A. and K. Mattiasson, International Journal of Mechanical Sciences, 51(7) (2009) pp.547-563.

Google Scholar

[7] Eggertsen, P.A. and K. Mattiasson,. Engineering with Computers, 26(2) (2010) pp.159-170.

Google Scholar

[8] Omerspahic, E., K. Mattiasson, and B. Enquist, International Journal of Mechanical Sciences, 48(12) (2006) pp.1525-1532.

Google Scholar

[9] ABAQUS. Getting started with Abaqus: Interactive edition. Version 6. 8 (2008).

Google Scholar
