Failure Modes for Single-Layer Reticulated Domes under Oblique Impact

Abstract:

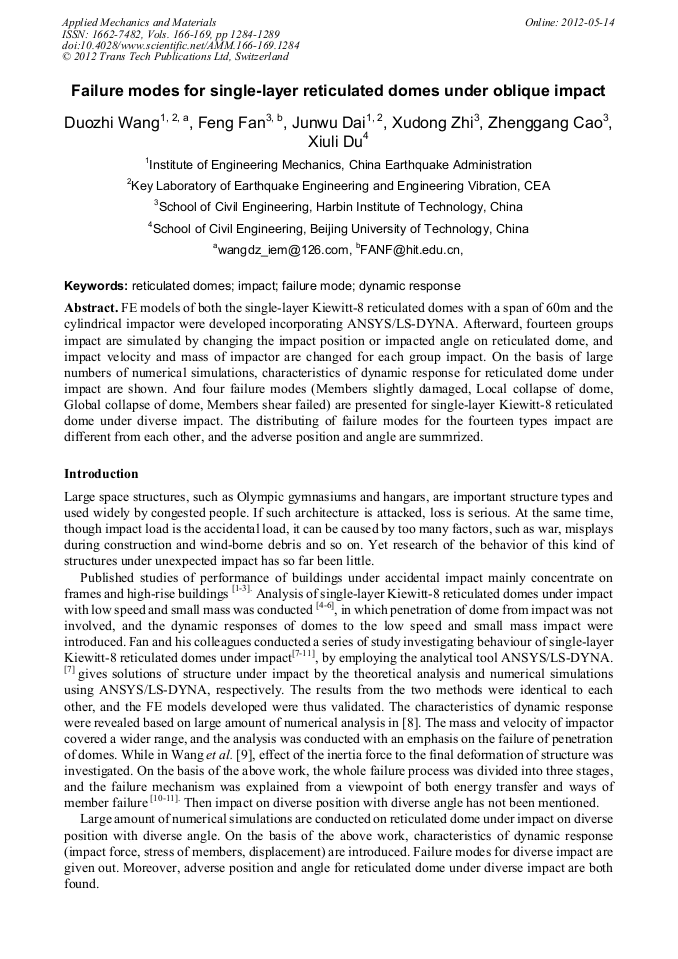

Article Preview

FE models of both the single-layer Kiewitt-8 reticulated domes with a span of 60m and the cylindrical impactor were developed incorporating ANSYS/LS-DYNA. Afterward, fourteen groups impact are simulated by changing the impact position or impacted angle on reticulated dome, and impact velocity and mass of impactor are changed for each group impact. On the basis of large numbers of numerical simulations, characteristics of dynamic response for reticulated dome under impact are shown. And four failure modes (Members slightly damaged, Local collapse of dome, Global collapse of dome, Members shear failed) are presented for single-layer Kiewitt-8 reticulated dome under diverse impact. The distributing of failure modes for the fourteen types impact are different from each other, and the adverse position and angle are summrized.

Info:

Periodical:

Edited by:

Xingang Zhou, Mingjin Chu, Jinming Liu, Shuying Qu and Haitao Fan

Pages:

1284-1289

Citation:

D. Z. Wang et al., "Failure Modes for Single-Layer Reticulated Domes under Oblique Impact", Applied Mechanics and Materials, Vols. 166-169, pp. 1284-1289, 2012

Online since:

May 2012

Export:

Price:

$41.00

[1] Bonder S R. and Symonds P S., International Journal of Solids and Structures, 1979; 15(1): 1-13.

[2] Zhou Q, Yu TX, Huang ZP. Explosion and Shock Waves (in Chinese), 1989; 4(2); 120-129. (In Chinese).

[3] Liu F, XL. Journal of Vibration Engineering (in Chinese), 2008; 21(2); 107-114. (In Chinese).

[4] Guo K. Dynamic Analysis of Single-layer Reticulated Shells Under Impact, Dissertation for Master Thesis, Taiyuan University of Technology, Taiyuan, China, 2004. (In Chinese).

[5] Shi JL. Dynamic Response Research On K8 Single-Layer Reticulated Dome Under Impact, Dissertation for Master Thesis, Taiyuan University of Technology, Taiyuan, China, 2005. (In Chinese).

[6] Li HW, Guo K, Wei JW, Qin DQ. Explosion and Shock Waves (in Chinese), 2006; 26(1); 39-45. (In Chinese).

[7] Wang DZ, Zhi XD, Fan F, Shen SZ. Engineering Mechanics (in Chinese), 2008; 25(suppl); 144-149. (In Chinese).

[8] Fan F, Wang DZ, Zhi XD, Shen SZ. Transactions of Tianjin University, 2008; 14(suppl); 545-550. (In Chinese).

[9] Wang DZ, Zhi XD, Fan F, Shen SZ. Twelfth Space Structure Congress, Beijing, China; Elsevier, 2008, pp.70-74. (In Chinese).

[10] Fan F, Wang DZ, Zhi XD, Shen SZ. Failure mechanism for single-layer reticulated dome under impact loads based on microcosmic dynamic response. International Symposium on Advances in Mechanics, Materials and Structures, Luo YZ (ed. ), 2008, 155-164.

[11] Wang DZ, Zhi XD, Fan F, Shen SZ. Transactions of Tianjin University, 2008; 14(suppl); 551-557. (In Chinese).
