Constant Amplitude Fatigue Calculative Method of Welded Hollow Spherical Joint with Cross-Board in Steel Plate-Type Grid Structure

Abstract:

The fatigue of grid structures with welded hollow spherical joint under suspending cranes is an issue in both academic and engineering fields at home and abroad. The structural fatigue is mainly caused by the fatigue failure of welded hollow spherical joint with cross-board. In this paper, 16 specimens categorized in KQ-4、KQ-5 and KQ-7were tested stably and efficiently under constant amplitude stress by use of self-designed loading equipment. The testing results show that the form and mechanism of fatigue failure were clarified elementarily. A fatigue curve of welded hollow spherical joint with cross-board, S-N curve, was suggested in this paper based on the statistic regression analysis of the 16 testing results. The constant amplitude fatigue calculation method was established for welded hollow spherical joint with cross-board in grid structure with welded hollow spherical joint by use of allowable stress amplitude method.

You might also be interested in these eBooks

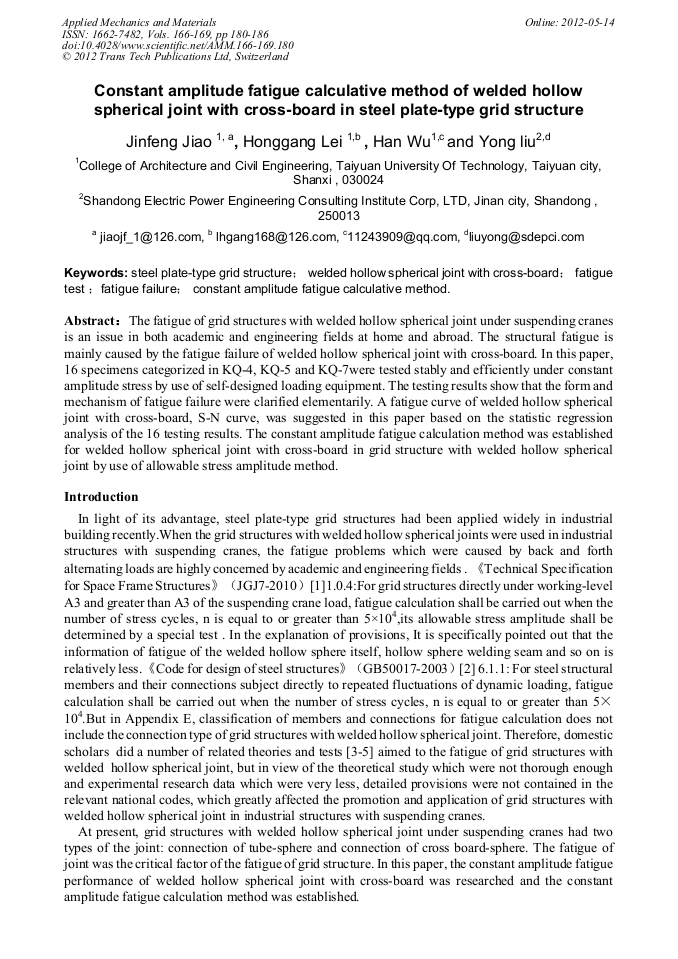

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 166-169)

Pages:

180-186

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.166-169.180

Citation:

Cite this paper

Online since:

May 2012

Authors:

Jin Feng Jiao, Hong Gang Lei, Han Wu, Yong Liu

Keywords:

Constant Amplitude Fatigue Calculative Method, Fatigue Failure, Fatigue Test, Steel Plate-Type Grid Structure, Welded Hollow Spherical Joint with Cross-Board

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Technical specification for space frame structures[S],JGJ7-2010 (In Chinese).

Google Scholar

[2] Code for design of steel structures[S],GB50017-2003 (In Chinese).

Google Scholar

[3] The six institute of the fifth machinery ministry ,the report of one-way fatigue testing about steel pipe-welded hollow spherical joint[R],1979, pp.2-6,Peiking, (references) (In Chinese).

Google Scholar

[4] Honggang,lei,Research on Static and Fatigue Behaviour of Welded Hollow Spherical Joints in Space Trusses, Journal of Building Structures, Vol14(1), pp.2-7, February 1993 (In Chinese).

Google Scholar

[5] Guobin xu, Jie cui,Fatigue of Space Trusses and Its Fatigue Life Calculation, Journal of Building Structures, Vol15(2), pp.25-34, January1994 (In Chinese).

Google Scholar

[6] Chunhua,zeng,Wonderful fatigue phenomenon[M], Science Press ,1986,Peiking, (references) (In Chinese).

Google Scholar

[7] Welded joints of space grid structures[S], JG11-1999 (In Chinese).

Google Scholar
