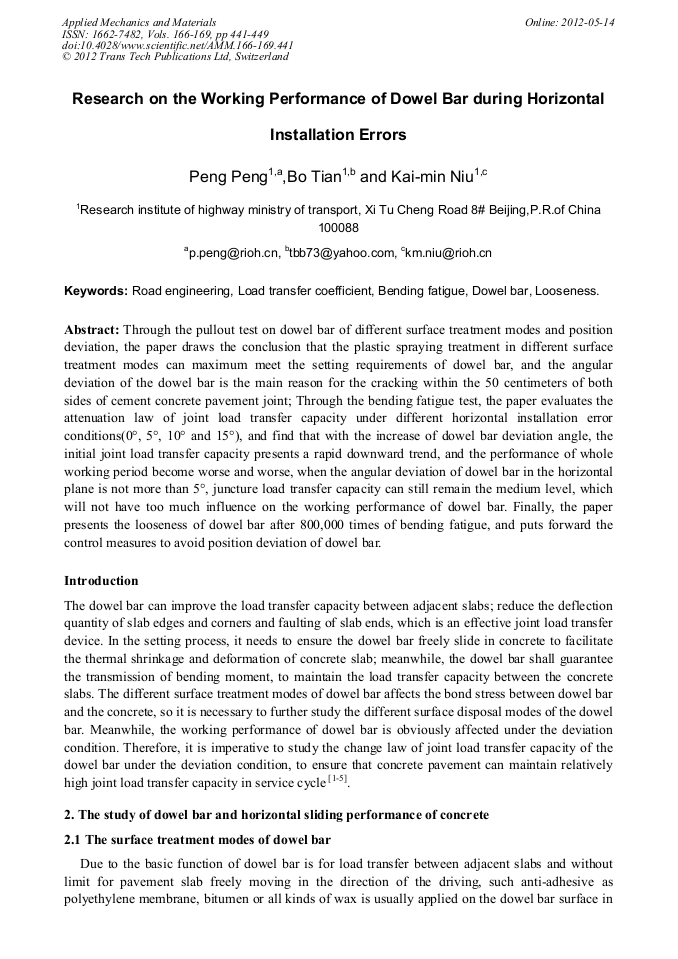

Research on the Working Performance of Dowel Bar during Horizontal Installation Errors

Abstract:

Through the pullout test on dowel bar of different surface treatment modes and position deviation, the paper draws the conclusion that the plastic spraying treatment in different surface treatment modes can maximum meet the setting requirements of dowel bar, and the angular deviation of the dowel bar is the main reason for the cracking within the 50 centimeters of both sides of cement concrete pavement joint; Through the bending fatigue test, the paper evaluates the attenuation law of joint load transfer capacity under different horizontal installation error conditions(0°, 5°, 10° and 15°), and find that with the increase of dowel bar deviation angle, the initial joint load transfer capacity presents a rapid downward trend, and the performance of whole working period become worse and worse, when the angular deviation of dowel bar in the horizontal plane is not more than 5°, juncture load transfer capacity can still remain the medium level, which will not have too much influence on the working performance of dowel bar. Finally, the paper presents the looseness of dowel bar after 800,000 times of bending fatigue, and puts forward the control measures to avoid position deviation of dowel bar.

• Periodical: Applied Mechanics and Materials (Volumes 166-169)
• Pages: 441-449
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.166-169.441
• Online since: May 2012
• Authors: Peng Peng, Bo Tian, Kai Min Niu
• Keywords: Bending Fatigue, Dowel Bar, Load Transfer Coefficient, Looseness, Road Engineering

References

[1] Zhou Deyun,Yao Zukang. Analysis of Load Transfer at Joints in Concrete Pavements [J]. Journal of Tongji University,1993,21(3):57-65.

[2] Teller L.W. and E.C. Sutherland. The Structural Design of Concrete Pavements. Public Road,Vol.17,NO.7 and 8 ,1936.

[3] Huang Xiaoming, Deng Xuejun.Analysis of Setting up Dowel Bar in Concrete Pavements [J]. East China Highway,1991,(1):10-12.

[4] Chen Fei, Zhang Ning, Lin Yapin, et al. New Load-transferred Evaluating Method at Doweled Joint of Rigid Pavement [J]. Journal of Traffic and Transportation Engineering, 2006, 6(4): 47-51.

[5] Zhang Ning, Huang Xiaoming. Analysis of Doweled Joints Under Repetitive Loading [J]. Journal of Southeast University,1998,28(3):89-95.

[6] Hang Boan, Wang Yanying, Yang Zhongbao. Research on the Joint Design of Slipform Paving Cement Concrete Pavement [J]. Journal of Highway and Transportation Research and Development, 1998,15(2):4-8.

[7] Luo Zhu, Fu Zhi, Li Liansheng. Application of Vibrating Plate to Remedy Defects Induced by Dowel Bar Insert Construction of Cement Concrete Pavement [J]. Journal of Highway and Transportation Research and Development, 2010,27(2):26-29.

[8] Deng Xuejun, Huang Xiaoming. Principles and Design Methods of Pavement [M]. Beijing: China Communications Press, 2001.

[9] Yao Zukang. Design Methods of Cement Concrete Pavement [M]. Anhui: Anhui Science and Technology Press, 1999.

[10] P. R. China. Ministry of Communications. JTJ D40-2002 Specifications of Cement Concrete Pavement Design for Highway [S].Beijing: China Communications Press, 2003.

[11] Teller L.W. and H.D. Cashell. Performance of Doweled Joints under Repeatitive Loading . HRB Bulletin 217,1959:8-43.

[12] Bradbury, R. D. Design of Joints in Concrete Pavement. Proceedings, HRB, Vol.12, 1932: 105-136.

[13] Friberg B.F. Design of Dowels in Transverse Joints of Concrete Pavement. Transactions of ASCE,Vol.105,1940:120-145.

[14] Tayabji S.D. Optimized Performance at Concrete Pavement Joints. Proceedings,3rd International Conference on Concrete Pavement Design and Rehabilitation. Purdue University,1985:595-608.

[15] Colley B.E. and Hunphrey H.A. Aggregate Interlock at Joints in Concrete Pavements. HRB, 1967:1-18.
