Experimental Investigation on Four Types of Steel Plate Shear Walls

Abstract:

The overall seismic performance of steel plate shear walls, including unstiffened SPSW, cross-stiffened SPSW, and SPSW with opening, SPSW with slits and holes, under low cyclic loading were tested. Contrastive analyze their hysteretic curve, loading capacity, lateral stiffness, ductility and energy dissipation coefficient. Results indicate that the unstiffened SPSW seem to be with high resistance lateral stiffness and carrying capacity; however its hysteretic curve show pinch effect obviously. When cross-stiffener was set on unstiffened SPSW, the resistance lateral stiffness and loading capacity can be significantly improved. However, the pinch effect of hysteretic curve does not distinctly change. The resistance lateral stiffness and loading capacity of SPSW with holes and slits is lower, however hysteretic curve is full. In addition, the energy dissipation capacity and the phenomenon which the thin steel plate shear wall shows the zero stiffness even negative stiffness at the point of zero displacement under cyclic loading are dramatically improved.

You might also be interested in these eBooks

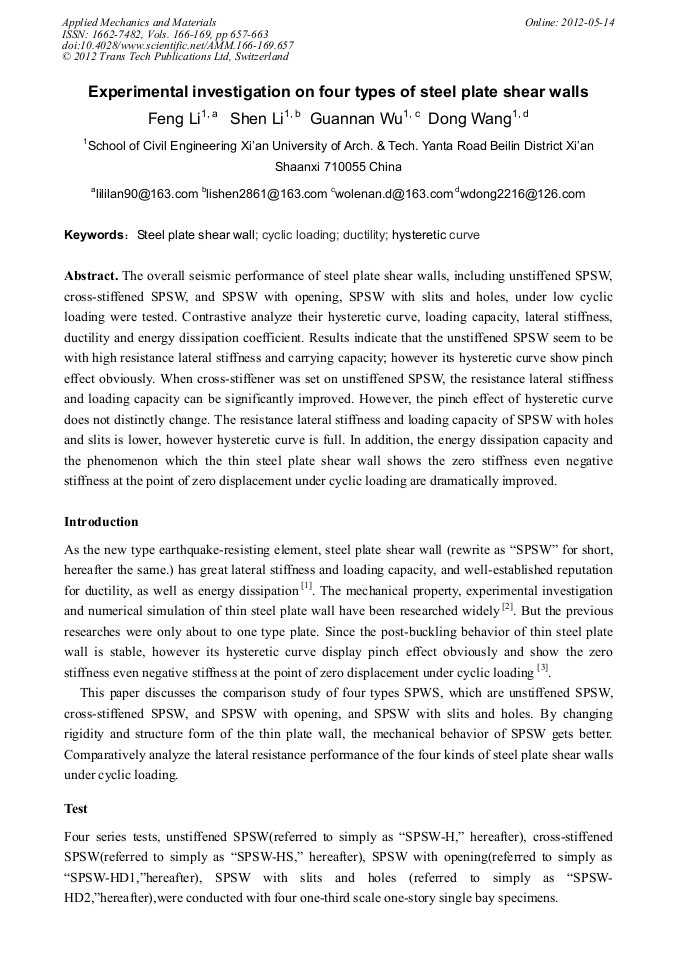

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 166-169)

Pages:

657-663

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.166-169.657

Citation:

Cite this paper

Online since:

May 2012

Authors:

Feng Li, Shen Li, Guan Nan Wu, Dong Wang

Keywords:

Cyclic Loading, Ductility, Hysteretic Curve, Steel Plate Shear Wall

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] E.W. Tromposch, G.L. Kulak, Cyclic and static behavior of thin panel steel plate shear walls, Structural Engineering Report, No.145, Dept of Civil Engineering University of Alberta, Edmonton, Alta, Canada(1987).

Google Scholar

[2] Caccesw V，Elgaaly M，Chen R, Experimental study of thin steel-plate shear walls under cyclic load, Structure Engineering, ASCE, 119(2), (1993)573-587.

DOI: 10.1061/(asce)0733-9445(1993)119:2(573)

Google Scholar

[3] Wagner H, Flat sheet metal girder with very thin metal web, Tech Memo No 604，National Advisory Committee for Aeronautics(1931).

Google Scholar

[4] Metallic materials tensile testing (GB/T228-2002).

Google Scholar

[5] Rules for sampling in mechanical and technological testing of steel products (GB/T2975-1998).

Google Scholar

[6] Specification of Testing Methods for Earthquake Resistant Building (JTG101-96).

Google Scholar
