Effect of Trace Boron on Low Temperature Impact Toughness of Hot-Rolled Nb-Added HSLA H-Beams

Guo Tao Cui; Zuo Cheng Wang; Tao Sun; Wei Min Guo; Jun Qing Gao

doi:10.4028/www.scientific.net/AMM.174-177.1030

Paper Titles

Investigate on Pore Structure Characteristics of Reactive Powder Concrete after High Temperatures
p.1010

Preparation and Photoluminescence of Nano-Sized Green Phosphors by Solution Combustion Synthesis
p.1015

Properties of Epoxy Modified Mortar Used in Caulking
p.1019

Magnesium Oxychloride Cement Modified by Aluminum-Leached Coal Fly Ash
p.1026

Effect of Trace Boron on Low Temperature Impact Toughness of Hot-Rolled Nb-Added HSLA H-Beams
p.1030

Hydrothermal Synthesis of Magnesium Hydroxide Sulfate Hydrate Whisker Flame Retardant
p.1034

The Effect of Corn Stalk Microcrystalline Cellulose on Thermal and Mechanical Properties of Chitosan Composites
p.1038

Experimental Study on the Bending Capability of Polyurethane Composite Panel
p.1042

Improved Bending Strength and early Crack-Resistance Performance of Engineered Cementitious Composites Reinforced by Hybrid-Fiber
p.1047

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 174-177Effect of Trace Boron on Low Temperature Impact...

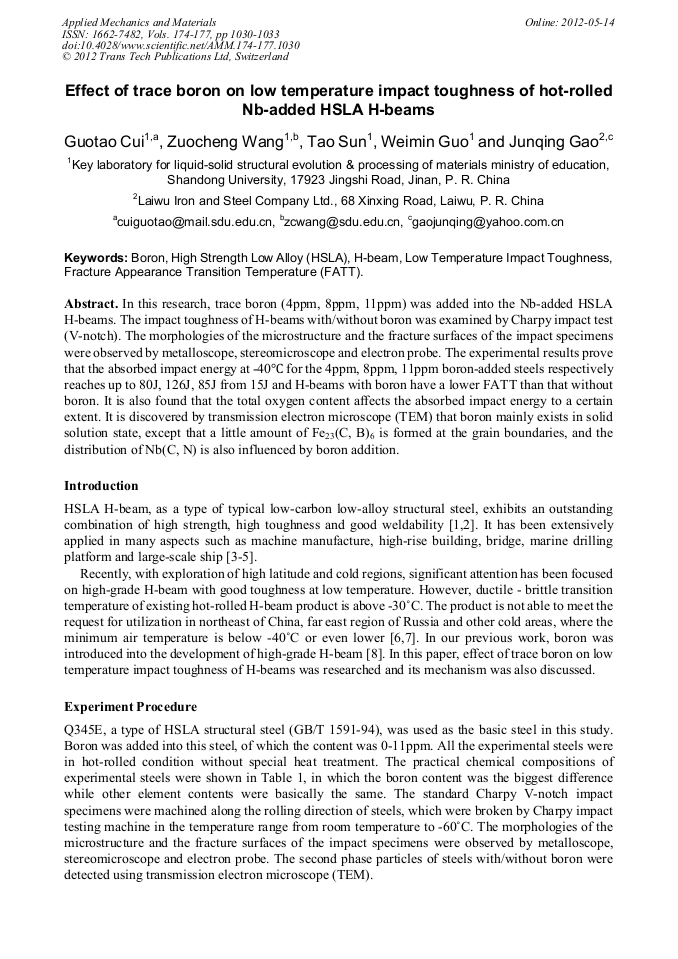

Effect of Trace Boron on Low Temperature Impact Toughness of Hot-Rolled Nb-Added HSLA H-Beams

Abstract:

In this research, trace boron (4ppm, 8ppm, 11ppm) was added into the Nb-added HSLA H-beams. The impact toughness of H-beams with/without boron was examined by Charpy impact test (V-notch). The morphologies of the microstructure and the fracture surfaces of the impact specimens were observed by metalloscope, stereomicroscope and electron probe. The experimental results prove that the absorbed impact energy at -40°C for the 4ppm, 8ppm, 11ppm boron-added steels respectively reaches up to 80J, 126J, 85J from 15J and H-beams with boron have a lower FATT than that without boron. It is also found that the total oxygen content affects the absorbed impact energy to a certain extent. It is discovered by transmission electron microscope (TEM) that boron mainly exists in solid solution state, except that a little amount of Fe₂₃(C, B)₆ is formed at the grain boundaries, and the distribution of Nb(C, N) is also influenced by boron addition.
