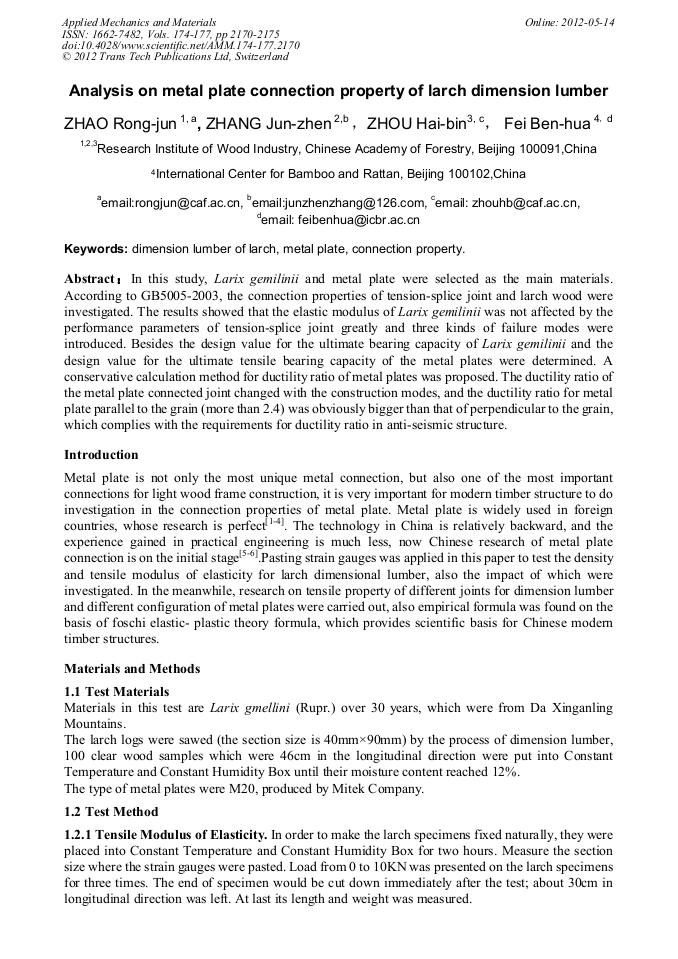

Analysis on Metal Plate Connection Property of Larch Dimension Lumber

Abstract:

In this study, Larix gemilinii and metal plate were selected as the main materials. According to GB5005-2003, the connection properties of tension-splice joint and larch wood were investigated. The results showed that the elastic modulus of Larix gemilinii was not affected by the performance parameters of tension-splice joint greatly and three kinds of failure modes were introduced. Besides the design value for the ultimate bearing capacity of Larix gemilinii and the design value for the ultimate tensile bearing capacity of the metal plates were determined. A conservative calculation method for ductility ratio of metal plates was proposed. The ductility ratio of the metal plate connected joint changed with the construction modes, and the ductility ratio for metal plate parallel to the grain (more than 2.4) was obviously bigger than that of perpendicular to the grain, which complies with the requirements for ductility ratio in anti-seismic structure.

• Periodical: Applied Mechanics and Materials (Volumes 174-177)
• Pages: 2170-2175
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.174-177.2170
• Online since: May 2012
• Authors: Rong Jun Zhao, Jun Zhen Zhang, Hai Bin Zhou, Ben Hua Fei
• Keywords: Connection Property, Dimension Lumber of Larch, Metal Plate

References

[1] Khalil Maraghechi and Rafik Y.Itani. Influence of metal plate connectors on the analysis of light frame structures[J]. Wood And Fiber Science,1984,16(3):306-322.

[2] Scott M.Kent, R.Gupta and Thomas H.Miller. Dynamic behavior of metal-plate-connected wood truss joints[J]. Journal of Structural Engineering,1997,123(8):1037-1045.

DOI: 10.1061/(asce)0733-9445(1997)123:8(1037)

[3] Tomoyuki Hayashi,Masahiko Karube and Masaki Harada. Strength properties of Sugi timber-joints with metal plate connectors [J]. Journal, Society of Materials Science, Japan,2001,50(4):421-426.

DOI: 10.2472/jsms.50.421

[4] R.Gupta, Thomas H.Miller and Mark J.Redlinger. Behavior of metal-plate-connected wood truss joints under wind and impact loads[J]. Forest Products Journal,2004,54(3):76-84.

[5] Yan Ming. Research of Metal Plate Connected Light Wood Constructions[D].Nanjing: Nanjing forestry university,2006.

[6] Xi Jia. Research on the Tension Performance of Dahurian Larch Joints Connected by Metal plates[D].

[7] Guo Zhen hai, Shi Xu dong. Theory and Analysis of Reinforced Concrete[M]. Beijing: Tsinghua University Press,2003, 334-342
