For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Study the Ferro-Hydrodynamic Characteristic on FHD Bernoulli Model
p.23
Cast - In Situ Concrete Hollow Plates, the Application of the Teaching Building
p.28
Preparation and Characterization of Unsaturated Polyester/Graphite Nanosheets Composites under Electric Field
p.33
Polyurethane-Acrylate Composite Emulsion Applying to the Pre-Coated Adhesive Film
p.37
Improving Compression after Impact of T800H/5228A Composite Laminates through Interlaminate Toughening
p.41
Preparation and Properties of Zinc Diacrylate-Modified Montmorillonite/Rubber Nanocomposite
p.47
Synthesis of Pure Bi12SiO20 Powder by Molten Salt Method
p.52
Damage Behavior of Foam Core Sandwich Composites Subjected to Quasi-Static Indentation Testing
p.57
Study on the Impact Damage Characteristic of the Ex-Situ Toughened Composite Laminates
p.65

Improving Compression after Impact of T800H/5228A Composite Laminates through Interlaminate Toughening

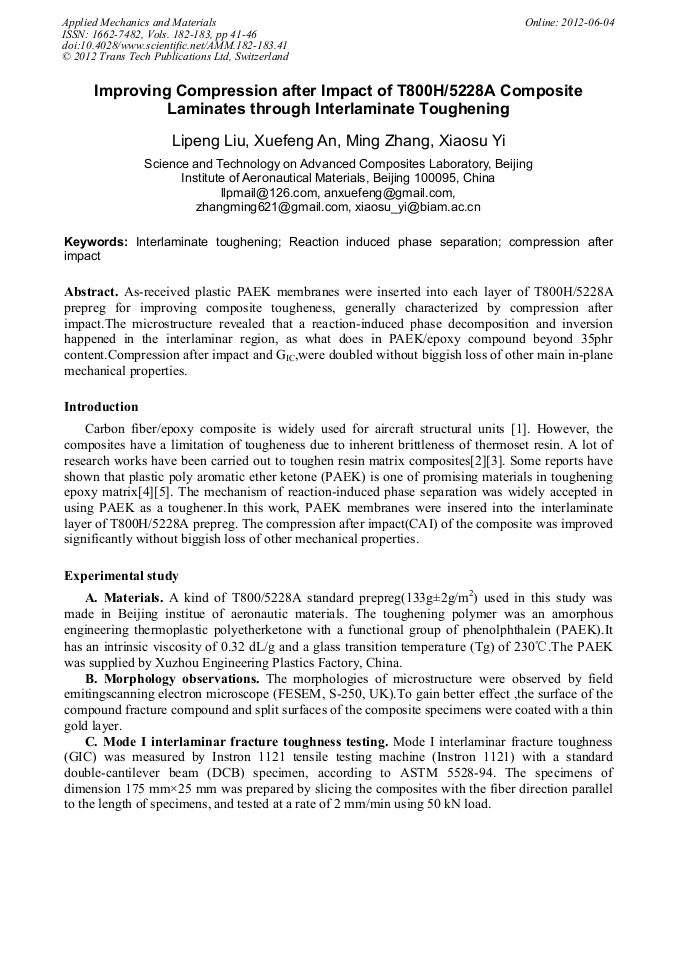

Article Preview

Abstract:

As-received plastic PAEK membranes were inserted into each layer of T800H/5228A prepreg for improving composite tougheness, generally characterized by compression after impact.The microstructure revealed that a reaction-induced phase decomposition and inversion happened in the interlaminar region, as what does in PAEK/epoxy compound beyond 35phr content.Compression after impact and GIC,were doubled without biggish loss of other main in-plane mechanical properties.

You might also be interested in these eBooks
Applied Mechanics and Mechatronics Automation View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 182-183)

Pages:

41-46

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.182-183.41

Citation:

Cite this paper

Online since:

June 2012

Authors:

Li Peng Liu, Xue Feng An, Ming Zhang, Xiao Su Yi

Keywords:

Compression after Impact, Interlaminate Toughening, Reaction Induced Phase Separation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Dutra RCL, Soare BG, Campo EA, Silva JLG. Polymer 2000, 41(10): 3841-3849.

Google Scholar

[2] Mcgrail PT, Jenkins SD. Polymer 1993; 34(4): 677-83.

Google Scholar

[3] Fernandez B, Arbelaiz A, Diaa E, et al. Polym Compos 2004, 25(5): 480-8.

Google Scholar

[4] M Zhang, X F An, B M Tang, et al. Acta Materiae compositae sinica in chinese, 2007, 24(1): 13-17.

Google Scholar

[5] M Zhang, X F An, B M Tang, et al. Chinese Journal of Aeronautics 2009, 22 449-452.

Google Scholar

[6] Oyanguren PA, Galante MJ, Andromaquel K, et al. Polymer, 1999, 40(19): 5249-5255.

Google Scholar

[7] Cho JB, Hwang JW, Cho K, et al. Polymer, 1993, 34(23): 4832-4836.

Google Scholar

[8] Kinloch AJ, Yuen ML. Journal of applied polymer science, 1994, 29: 3781-3790.

Google Scholar

[9] Taesung Yoon, Bong Sup Kim, Doo Sung Lee. Journal of Applied Polymer Science, 1997, Vol. 66, 2233-2242.

Google Scholar

[10] X Q Cheng. Degree Thesis of Beijing Univ. of Aero. and Astro In chinese, (1998).

Google Scholar

[11] Sela, N.; Ishai, O. Composites 1989, 20, 423.

Google Scholar

[12] Q F Cheng, Z P Fang, X S Yi, et al. Journal of Applied Polymer Science, 2008, Vol. 108, 2211-2217.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
