Research on Damage and Bending Properties of AZ31 Magnesium Alloy

Xi An Xie; Gao Feng Quan

doi:10.4028/www.scientific.net/AMM.184-185.1163

Paper Titles

Process Parameters Optimization of Direct Synthesis Nano Magnesium Fluoride Powders
p.1146

Reason Research of the Low Impact Value of 2Cr11Mo1VNbN Ring Forging
p.1150

Reconstruction of Composite Surface Based on CMM Point Data
p.1155

Research on Aircraft Aluminum Alloy Structure Corrosion Fatigue Life Based on Artificial Neural Net Theory
p.1159

Research on Damage and Bending Properties of AZ31 Magnesium Alloy
p.1163

Research on Damping Properties of TiN Coating Prepared with Arc Ion Plating
p.1167

Research on Phases and Morphology of Fe-Se Powders Synthesized by Hydrothermal Method
p.1171

Research on Properties of Amorphous Cr-C Alloy Coating in Crystallization Evolution
p.1175

Research on Self-Cleaning Organic Ti-Si Compound Material
p.1181

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 184-185Research on Damage and Bending Properties of AZ31...

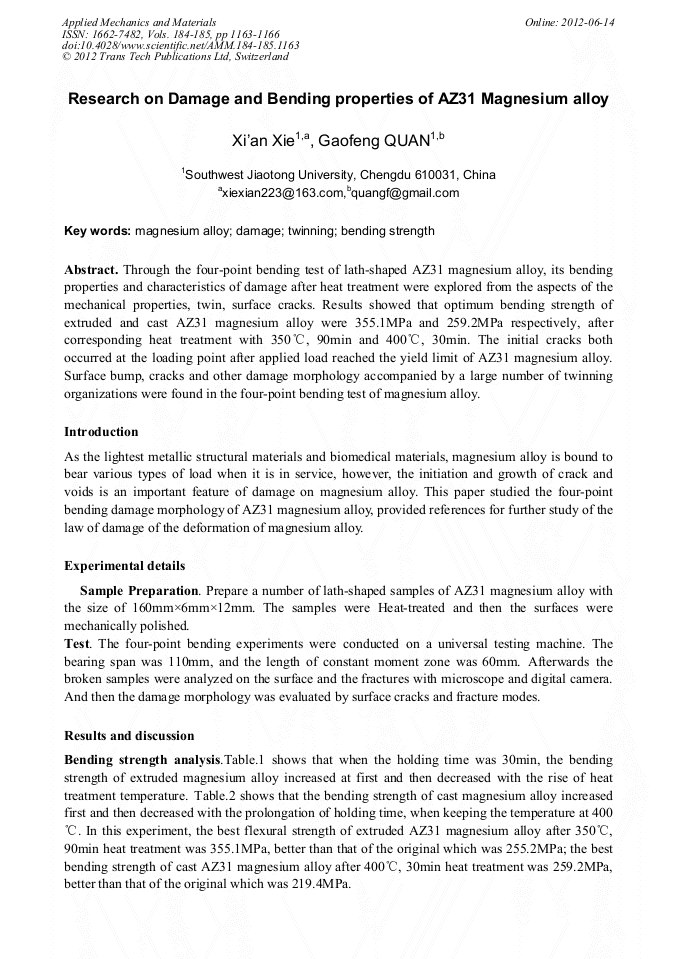

Research on Damage and Bending Properties of AZ31 Magnesium Alloy

Abstract:

Through the four-point bending test of lath-shaped heat treated AZ31 magnesium alloy, the bending properties and damage characteristics were explored. The results show that the optimal bending strength of the magnesium alloy were 355.1MPa and 259.2MPa for extruded and cast samples, respectively, after corresponding heat treatment with 350°C, 90min and 400°C, 30min. The initial cracks both occurred at the loading point after applied load exceeded the yield limit of AZ31 magnesium alloy. Surface bump, cracks and other damage morphology accompanied by a large number of twinning organizations were found on the surface of the samples.
