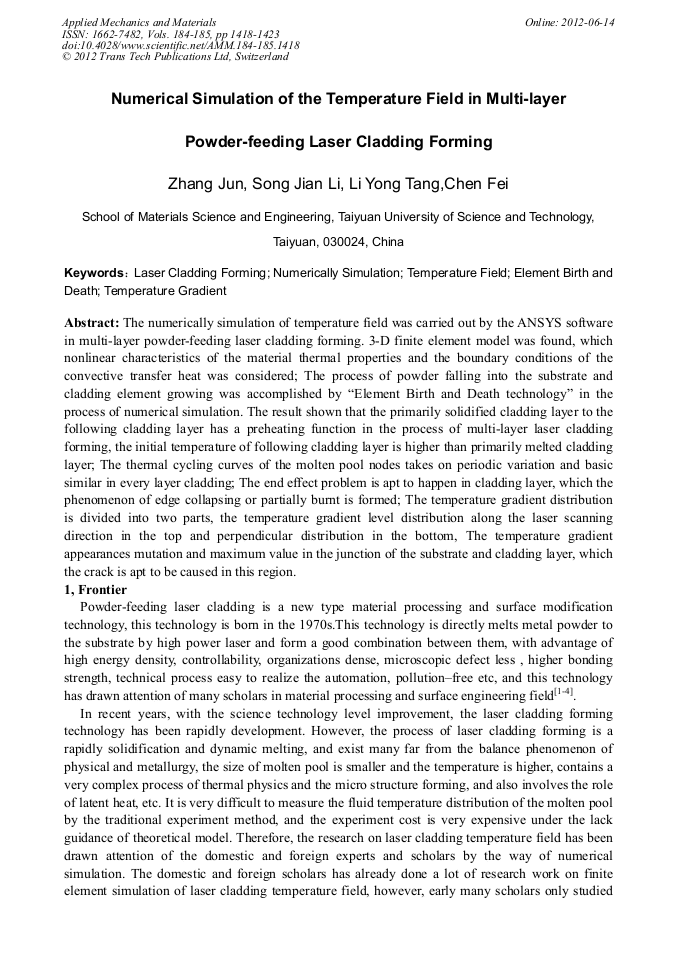

Numerical Simulation of the Temperature Field in Multi-Layer Powder-Feeding Laser Cladding Forming

Abstract:

The numerically simulation of temperature field was carried out by the ANSYS software in multi-layer powder-feeding laser cladding forming.3-D finite element model was found, which nonlinear characteristics of the material thermal properties and the boundary conditions of the convective transfer heat was considered; The process of powder falling into the substrate and cladding element growing was accomplished by “Element Birth and Death technology” in the process of numerical simulation. The result shown that the primarily solidified cladding layer to the following cladding layer has a preheating function in the process of multi-layer laser cladding forming, the initial temperature of following cladding layer is higher than primarily melted cladding layer; The thermal cycling curves of the molten pool nodes takes on periodic variation and basic similar in every layer cladding; The end effect problem is apt to happen in cladding layer, which the phenomenon of edge collapsing or partially burnt is formed; The temperature gradient distribution is divided into two parts, the temperature gradient level distribution along the laser scanning direction in the top and perpendicular distribution in the bottom, The temperature gradient appearances mutation and maximum value in the junction of the substrate and cladding layer, which the crack is apt to be caused in this region.

• Periodical: Applied Mechanics and Materials (Volumes 184-185)
• Pages: 1418-1423
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.184-185.1418
• Online since: June 2012
• Authors: Jun Zhang, Jian Li Song, Yong Tang Li, Fei Chen
• Keywords: Element Birth, Element Death, Laser Cladding Forming, Numerically Simulation, Temperature Field, Temperature Gradient

References

[1] Yang Sen, Zhong Min lin. Metal parts of the laser direct and rapid manufacturing [J]. Powder Metallurgical technology. 2002,8(4):234-238.

[2] Xu Qin, ZhangJian. Research Situation and Development of Laser Rapid Prototyping Technology[J].Chinese Journal of Jiu jiang University. 2005, (1).

[3] Gao Aibing, HuXiaxia, Luo Fang. Finite-element Analysis of the Temperature in  Multi-layer  Powder-Feeding Laser Cladding. Chinese Journal of Zhejiang University of Technology 2011,(1).

[4] Song Jianli，Zheng Qilin，Hu Dejin, etal. Microstructure and properties of laser cladding forming 316Lstainless steel [J] .Chinese Journal of lasers,2005,32(10):1 141-1144．

DOI: 10.1049/cp:20060997

[5] A.F.A.HOADLEY, A Thermal Model of Laser Cladding by Powder Injection,VOLUME 23B,OCTOBER 1992,6.

[6] Ma Lin, Yuan Jin ,Zhang Ping, ZhaoJunjun. Numerical Simulation of the Temperature Field in Multi-layer Laser Cladding[J]. Chinese Journal of the weld..2007,(7).
