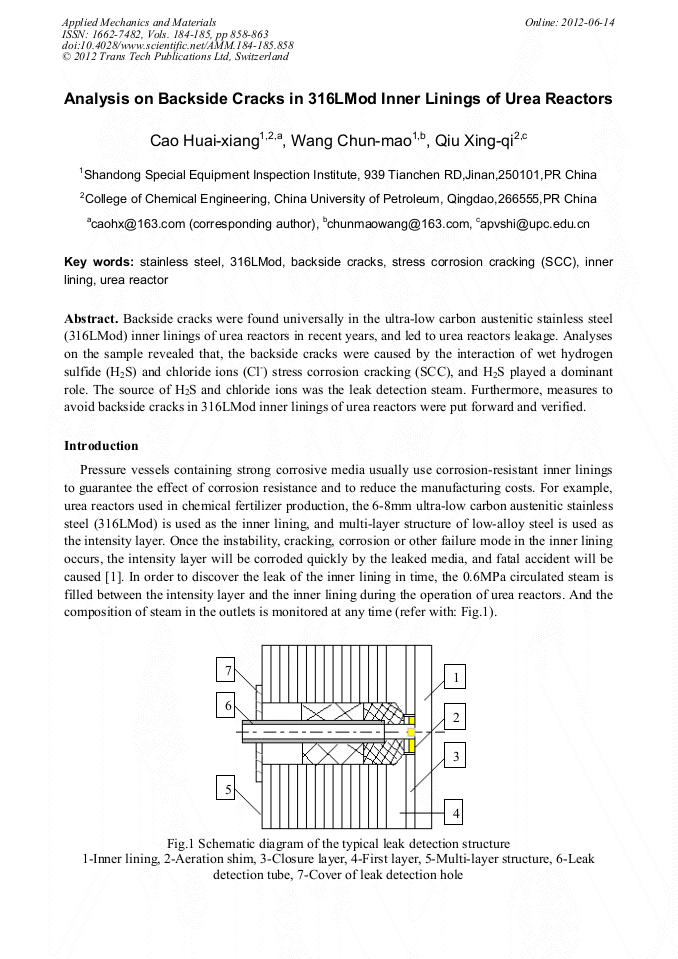

Analysis on Backside Cracks in 316LMod Inner Linings of Urea Reactors

Abstract:

Backside cracks were found universally in the ultra-low carbon austenitic stainless steel (316LMod) inner linings of urea reactors in recent years, and led to urea reactors leakage. Analyses on the sample revealed that, the backside cracks were caused by the interaction of wet hydrogen sulfide (H₂S) and chloride ions (Cl^-) stress corrosion cracking (SCC), and H₂S played a dominant role. The source of H₂S and chloride ions was the leak detection steam. Furthermore, measures to avoid backside cracks in 316LMod inner linings of urea reactors were put forward and verified.

• Periodical: Applied Mechanics and Materials (Volumes 184-185)
• Pages: 858-863
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.184-185.858
• Online since: June 2012
• Authors: Huai Xiang Cao, Chun Mao Wang, Xing Qi Qiu
• Keywords: 316LMod, Backside Cracks, Inner Lining, Stainless Steel (SS), Stress Corrosion Cracking (SCC), Urea Reactor

References

[1] Su Yan-xia, Corrosion and Protection of urea reactor lining, J. China Boiler and Pressure Vessel Safety. 2000, 16(6): 15-16.

[2] Gang Yi-min, The analysis of corrosion cracking in the large urine tower linings, J. Chemical machinery. 1991, 18(2): 101-103.

[3] Lv Zi-xin, Leakage and repair of urine reactor lining, J. Large Scale Nitrogenous Fertilizer Industry. 1990(2): 93-95.

[4] Wang Yu-li, Detection and repair of urine reactor lining, J. Nondestructive Testing. 2005, 27(12): 663-664.

[5] He Jiang, Leakage of urine tower penetrating titanium lining and countermeasures, J. Petroleum Chemical Equipment Technology. 1990, 11(4): 53-57.

[6] Gao Xiao-shan, Cai Ke-xia, Bao Xiao-jun, Stress Corrosion Cracking and Protection of Stainless Steel, J. Chemical Equipment Technology. 2002, 23(1): 50-53.

[7] Wang zhi-wen, Guan Kai-shu, Several types of SCC on bellow expansion joints of 304 austenitic stainless steel, J. China Pressure Vessel Technology. 2004 (z1): 79-84.

[8] Zhang Zhen-jie, Study on Stress Corrosion Cracking of Austenitic Stainless Steel, J. Corrosion & Protection in Petrochemical Industry. 2006, 23(2): 48-50.

[9] Qi Dong-zi, Re-discussion on reasons for stress corrosion cracks in stainless steel water cooler, J. Industrial Water & Wastewater. 2006, 37(3)1-6.

[10] Zhu Xiao-dong, Ai Zhi-bin, Li Rong-rong, Failure Analysis of 1Cr18Ni9Ti Stainless Steel Vessel Head, J. China Pressure Vessel Technology. 2004, 21(6): 38-42.

[11] Huang Zhi-rong, MA Liu-bao, WANG Bao-gong, Effect of Chloride Ion on Stress Corrosion Cracking of Type 316 Austenitic Stainless Steel in Polythionic Acid Solution, J. Corrosion & Protection. 2005, 26(4): 147-149.

DOI: 10.1016/0010-938x(93)90023-a

[12] W. He et al, Corrosion of stainless steel 316L in simulated formation water environment with CO2-H2S-Cl- ,J. Corrosion Science. 51 (2009) 2811-2819.

DOI: 10.1016/j.corsci.2009.08.010

[13] T.M. Ahmed, A. Alfantazi, J. Budac, G. Freeman, Failure analysis of 316L stainless steel tubing of the high-pressure still condenser, J. Engineering Failure Analysis. 16 (2009) 1432-1441.

DOI: 10.1016/j.engfailanal.2008.09.015

[14] Zhong Zhen-qian et al, Failure analysis of 316L heat-exchanger steel tube and crystallography analysis on the stress corrosion cracking, J. Metallurgical Analysis. 30(2010)1132-1138.
