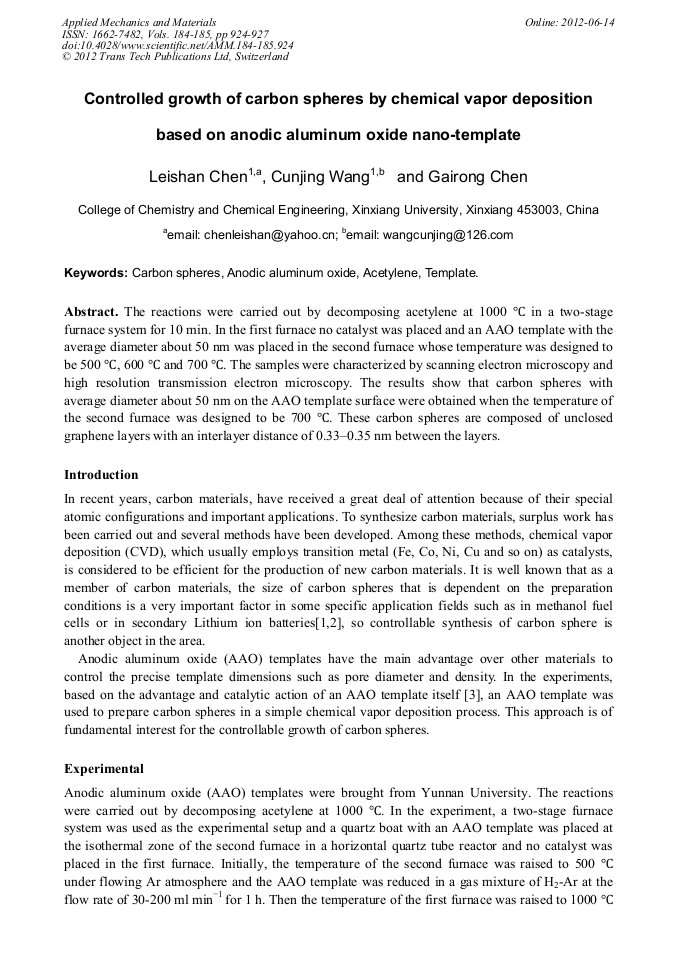

Controlled Growth of Carbon Spheres by Chemical Vapor Deposition Based on Anodic Aluminum Oxide Nano-Template

Abstract:

The reactions were carried out by decomposing acetylene at 1000 °C in a two-stage furnace system for 10 min. In the first furnace no catalyst was placed and an AAO template with the average diameter about 50 nm was placed in the second furnace whose temperature was designed to be 500 °C, 600 °C and 700 °C. The samples were characterized by scanning electron microscopy and high resolution transmission electron microscopy. The results show that carbon spheres with average diameter about 50 nm on the AAO template surface were obtained when the temperature of the second furnace was designed to be 700 °C. These carbon spheres are composed of unclosed graphene layers with an interlayer distance of 0.33–0.35 nm between the layers.

• Periodical: Applied Mechanics and Materials (Volumes 184-185)
• Pages: 924-927
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.184-185.924
• Online since: June 2012
• Authors: Lei Shan Chen, Cun Jing Wang, Gai Rong Chen
• Keywords: Acetylene, Anodic Aluminum Oxide (AAO), Carbon Spheres, Template

References

[1] Y.C. Liu, X.P. Qiu, Huang Y-Q et al. Carbon. 40 (2002)2375－2380.

[2] M, Umeda, K, Dokko, Y, Fujita et al. Electrochim. Acta. 47(2002) 885—890.

[3] S.H. Jeong, H.Y. Hwang, S.K. Hwang et al. Carbon. 42(2003) 2073－(2080).

[4] M. Sharon, K. Mukhopadhyay, K. Yase et al. Carbon. 36 (2003) 41－47.

[5] V.G. Pol, Pol S V, Jose M et al. Carbon. 44 (2006) 3285－3292.

[6] H S Qian, F M Han, B Zhang et al. Carbon. 42(2006) 761－766.
