Effect of Annealing Temperature on Corrosion Resistance of Cold-Rolled Strip of Complex Brass

Abstract:

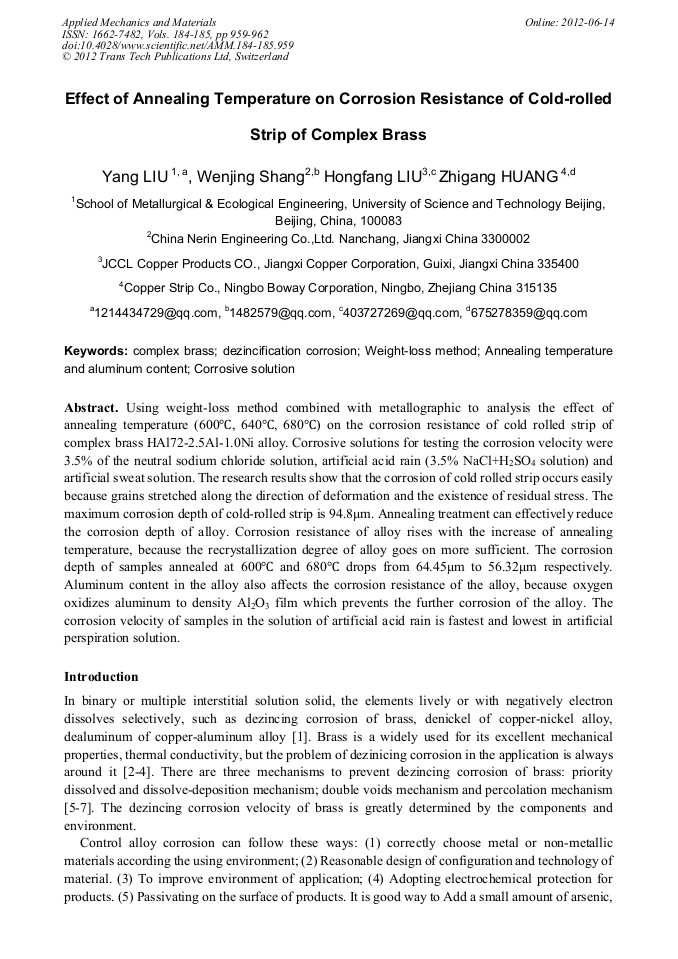

Using weight-loss method combined with metallographic to analysis the effect of annealing temperature (600°C, 640°C, 680°C) on the corrosion resistance of cold rolled strip of complex brass HAl72-2.5Al-1.0Ni alloy. Corrosive solutions for testing the corrosion velocity were 3.5% of the neutral sodium chloride solution, artificial acid rain (3.5% NaCl+H₂SO₄ solution) and artificial sweat solution. The research results show that the corrosion of cold rolled strip occurs easily because grains stretched along the direction of deformation and the existence of residual stress. The maximum corrosion depth of cold-rolled strip is 94.8μm. Annealing treatment can effectively reduce the corrosion depth of alloy. Corrosion resistance of alloy rises with the increase of annealing temperature, because the recrystallization degree of alloy goes on more sufficient. The corrosion depth of samples annealed at 600°C and 680°C drops from 64.45μm to 56.32μm respectively. Aluminum content in the alloy also affects the corrosion resistance of the alloy, because oxygen oxidizes aluminum to density Al₂O₃ film which prevents the further corrosion of the alloy. The corrosion velocity of samples in the solution of artificial acid rain is fastest and lowest in artificial perspiration solution.

• Periodical: Applied Mechanics and Materials (Volumes 184-185)
• Pages: 959-962
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.184-185.959
• Online since: June 2012
• Authors: Yang Liu, Wen Jing Shang, Hong Fang Liu, Zhi Gang Huang
• Keywords: Aluminum Content, Annealing Temperature, Complex Brass, Corrosive Solution, Dezincification Corrosion, Weight-Loss Method

References

[1] Qiuxia SUN. Corrosion and Protection of Metals, first ed., Metallurgical Industry Press, Beijing, 2001.3

[2] Heidersbach R. Clarification of the Mechanism of the Dealloying, J. Corrosion 24(1968)28-44.

[3] Heidersbach, Robert H. J. Dezincification of Alpha and Beta brasses, J. Corrosion 28 (1972)397 -418.

DOI: 10.5006/0010-9312-28.11.397

[4] Jihui WANG, Xiaoxia JIANG, Shizhuo LI. Advances of Research on the Dezincification Mechanism of Brass, J. Chinese Journal of Materials Research13(1) (1999)1-8.

[5] Shengli YANG, Yu WU. Advances of Research on the Dezincification Mechanism of Brass, J. World Nonferrous Metals 4(2011)50-55.

[6] Yong LI, Yinglu ZHU. Advances in Researches of Dezincification Mechanism of Brass, J. Corrosion & Protection 27(5) (2006)222-225.

[7] Xianzhong GUO, Kewei GAO, Lijie QIAO, Wuyang CHU. SCC Susceptibilty and Its Correspondence to Dezincification Layer-Induced Stress for Brass, J. Acta Metallugica Sinca 36 (7)(2000)753-756.

[8] Kewei GAO, Wuyang CHU. Correspondence Between Hydrogen Enhancing Dezincification Layer-Induced Stress and Susceptibility to SCC of brass, J.Materials Science and Engineering 12 (2004)51-56.

DOI: 10.1016/s0921-5093(03)00322-8

[9] Picketing HW, Wagner C. Electrolytic Dissolution of Binary Alloys Containing a Nobel Metal, J. Electrochem SAC 114 (7) (1967)698-703.

DOI: 10.1149/1.2426709

[10] Mingjun JIANG, Xiaochuan GUO, Jun YANG. The Characteristics and Protective Methods of Brass Dezincification Corrosion, J. Journal of Logistical Engineering University 24(4) (2008) 35-39.
