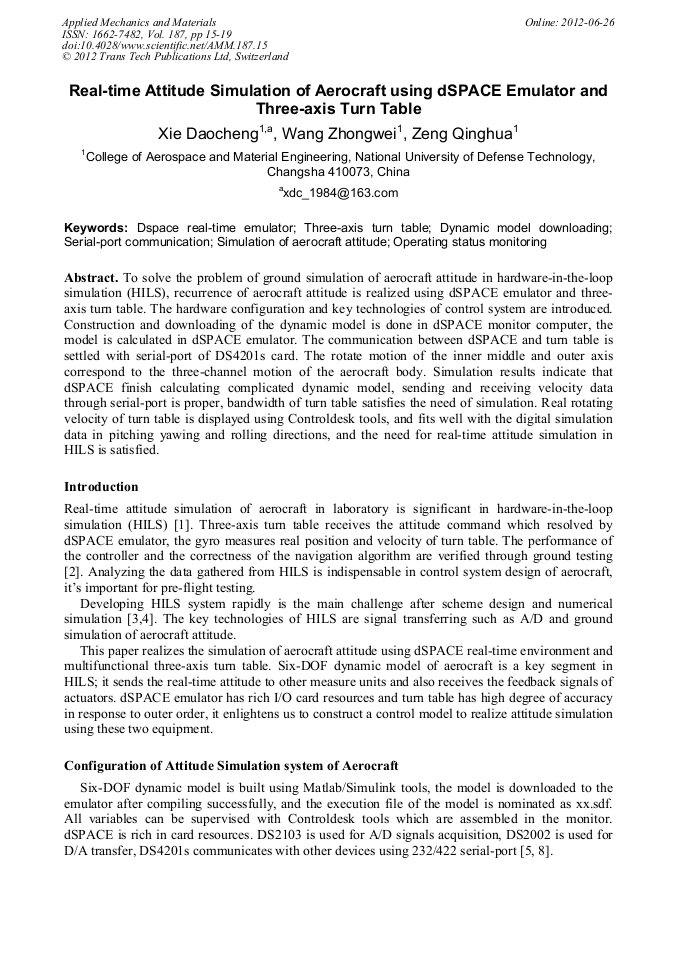

Real-Time Attitude Simulation of Aerocraft Using dSPACE Emulator and Three-Axis Turn Table

Abstract:

To solve the problem of ground simulation of aerocraft attitude in hardware-in-the-loop simulation (HILS), recurrence of aerocraft attitude is realized using dSPACE emulator and three-axis turn table. The hardware configuration and key technologies of control system are introduced. Construction and downloading of the dynamic model is done in dSPACE monitor computer, the model is calculated in dSPACE emulator. The communication between dSPACE and turn table is settled with serial-port of DS4201s card. The rotate motion of the inner middle and outer axis correspond to the three-channel motion of the aerocraft body. Simulation results indicate that dSPACE finish calculating complicated dynamic model, sending and receiving velocity data through serial-port is proper, bandwidth of turn table satisfies the need of simulation. Real rotating velocity of turn table is displayed using Controldesk tools, and fits well with the digital simulation data in pitching yawing and rolling directions, and the need for real-time attitude simulation in HILS is satisfied.

• Periodical: Applied Mechanics and Materials (Volume 187)
• Pages: 15-19
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.187.15
• Online since: June 2012
• Authors: Dao Cheng Xie, Zhong Wei Wang, Qing Hua Zeng
• Keywords: dSPACE Real-Time Emulator, Dynamic Model Downloading, Operating Status Monitoring, Serial-Port Communication, Simulation of Aerocraft Attitude, Three-Axis Turn Table

References

[1] Marko Bacic, Monte MacDiarmid. Hardware in-the-loop simulation of aerodynamic objects[C]. AIAA2007-6465, AIAA modeling and simulation technologies conference and exhibt, South Carolina, USA, August 20-23, (2007).

DOI: 10.2514/6.2007-6465

[2] Modeling and Simulation Technologies: Reconfigurable Flight Simulators in Modeling and Simulation[C]. AIAA2004-5459, AIAA modeling and simulation technologies conference and exhibt, Rhode Island, USA, August 16-19, (2004).

DOI: 10.2514/6.2004-5459

[3] Zhai Kun, Yang Di, Zhu Chen-yuan. Real Tilne Simulation System for Attitude and Orbit ControlSystem of Flexible Satellite Based on dSPACE Multiprocessor Systems[J]. Aerospace Control, 2004, 22(1): 17-25.

[4] Wang Ji-he, Wang Feng, Shi Li. dSPACE-based micro core simulation system [J]. System Engineering and Electronics, 2007, 29(12): 2149-2153.

[5] Zhu Chen-yuan, Yang Di, Yang Xu. dSPACE-based micro core simulation system [J]. System Engineering and Electronics, 2007, 29(12): 2149-2153.

[6] Farhan A. Faruqi, Thanh Lan Vu. Mathematical Models for a Missile Autopilot Design[R]. Weapons Systems Division Systems Sciences Laboratory, Australia, August (2002).

[7] dSPACE RealTime Interface(RTI and RTI- MP)Implementation Guide[M]. dSPACE GmbH. (2001).

[8] Hardware Installation and Configuration Reference, Germany[M]. dSPACE GmbH. (2004).
