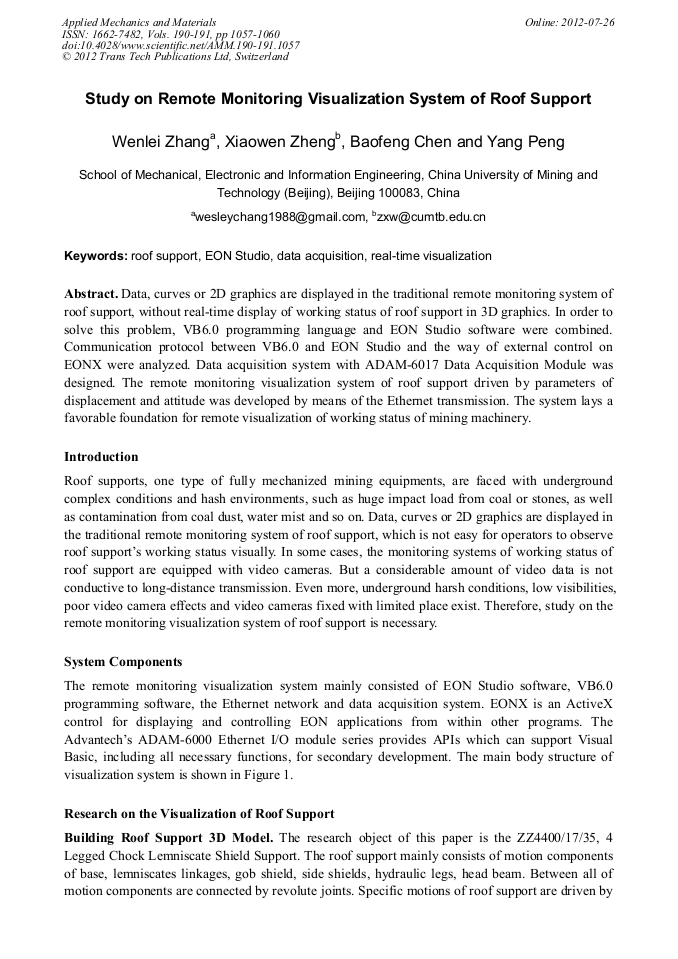

Study on Remote Monitoring Visualization System of Roof Support

Abstract:

Data, curves or 2D graphics are displayed in the traditional remote monitoring system of roof support, without real-time display of working status of roof support in 3D graphics. In order to solve this problem, VB6.0 programming language and EON Studio software were combined. Communication protocol between VB6.0 and EON Studio and the way of external control on EONX were analyzed. Data acquisition system with ADAM-6017 Data Acquisition Module was designed. The remote monitoring visualization system of roof support driven by parameters of displacement and attitude was developed by means of the Ethernet transmission. The system lays a favorable foundation for remote visualization of working status of mining machinery.

• Periodical: Applied Mechanics and Materials (Volumes 190-191)
• Pages: 1057-1060
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.190-191.1057
• Online since: July 2012
• Authors: Wen Lei Zhang, Xiao Wen Zheng, Bao Feng Chen, Yang Peng
• Keywords: Data Acquisition, EON Studio, Real-Time Visualization, Roof Support
