Simulation Analysis of Five-Roll Covering Rollers System for Binding Machine of Section Steel Bars

Abstract:

Binding machine of section steel bars is full automatic packaging equipment that structure is very complex and it sets hydraulic-numerical control integration in order to perform continuous production of modern production line and meet the need of many binding types of section steel bars. Five-roll covering rollers system referring to two parts was mainly studied in this paper. SolidWorks software was used to analyze the movement and force; ANSYS/LS-DYNA was used to do optimization analysis for the positions of the covering rollers mechanism when the wire rope was in the different angles of section steel bars binding and the different forces. Compared with single-roll covering rollers system, five-roll covering rollers system was more suitable for the requirement of various kinds of section steel bars binding packed. The results show that five-roll covering rollers system can increase the extending degree of the steel wire and make the steel wire much close to the steel ladle.

You might also be interested in these eBooks

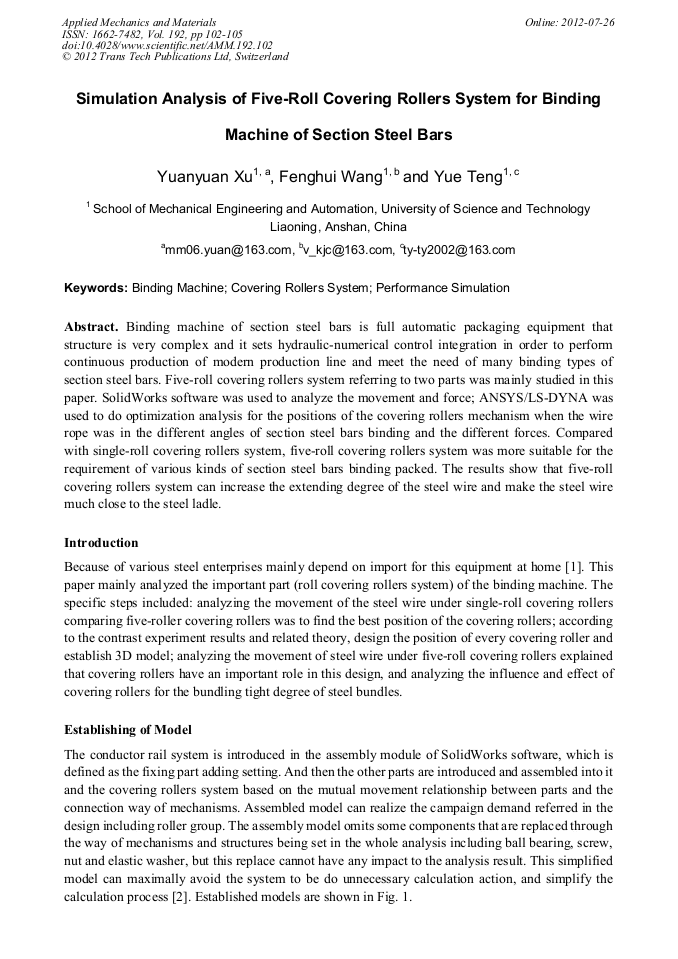

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 192)

Pages:

102-105

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.192.102

Citation:

Cite this paper

Online since:

July 2012

Authors:

Yuan Yuan Xu, Feng Hui Wang, Yue Teng

Keywords:

Binding Machine, Covering Rollers System, Performance Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Zhang Landi, Wang Jianjun, Liang Jianming and Ma Yiqun: Research on Binding Machine for Packing Steels. Journal of Hebei Construction Engineering College, 2008, 9, 26(3): 74 ~ 75.

Google Scholar

[2] Zhang Xu, Mao Enrong: Study and Development of Mechanical System Virtual Prototyping. Journal of China Agricultural University, 1994 (2): 94 ~ 98.

Google Scholar

[3] Ma Beiyi: Journal of University of Science and Technology Liaoning journal, 2008, Z1 period.

Google Scholar

[4] Zhang Hao, Feng Changjian: The technologies and applications of virtual prototype based on Solidworks software platform. Coal Mining Machinery, 2004(9): 67-69.

Google Scholar

[5] Shi Dangyong, Li Yuchun, Zhang Shengmin: Displayed Dynamic Analysis based on ANSYS/LS-DYNA8. 1. Beijing: Tsinghua University press.

Google Scholar
