The Design, Numerical Simulation and Experimental Research on Low Resistance Diffluence T-Junction

Abstract:

A new type of diffluence T-junction with low-resistance was designed to reduce the flow resistance coefficient. After the numerical simulation on internal flow field for both the traditional and newly-invent T-junction, an analysis was made on their flow pattern, and their fluid resistance coefficient was computed. At last, the actual fluid resistance was measured respectively. It shows that: the results from numerical simulation agree well to those got in experimental testing. Furthermore, the flow resistance coefficient of T-junction is decreased from 1.13 to 0.61 after redesign, which indicates high effectiveness of this process. The mechanism is that smoothness for branch can inhibit the vortex generation efficiently and greatly reduce its flow resistance coefficient, which consequently reduces the gross flow resistance

You might also be interested in these eBooks

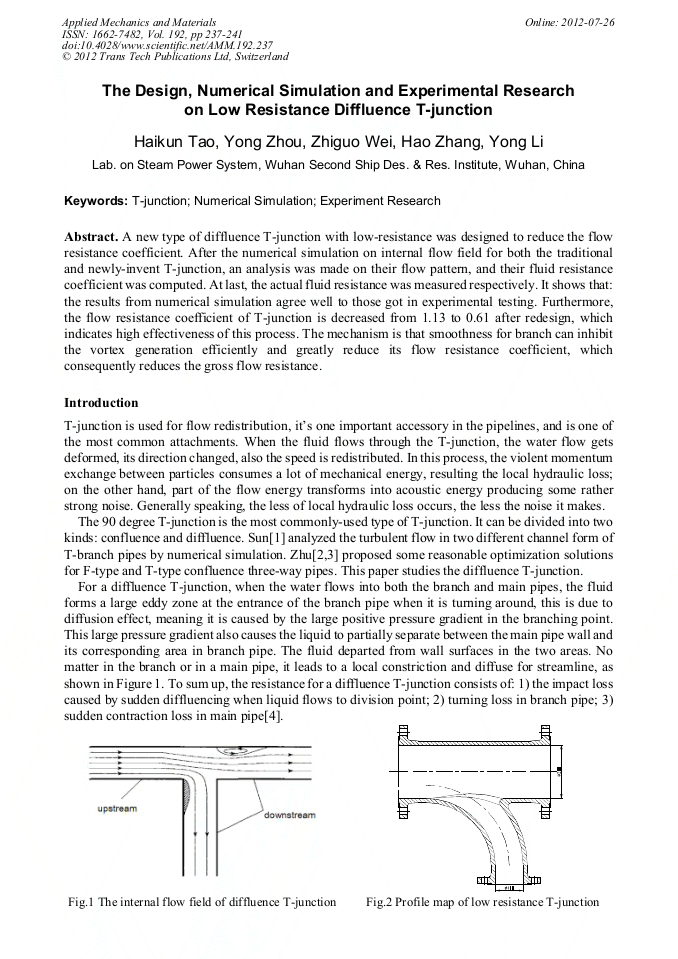

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 192)

Pages:

237-241

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.192.237

Citation:

Cite this paper

Online since:

July 2012

Authors:

Hai Kun Tao, Yong Zhou, Zhi Guo Wei, Hao Zhang, Yong Li

Keywords:

Experiment Research, Numerical Simulation, T-Junction

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Xin Sun, Shifeng Fan, Xiuyun Qiu, et al. Three-Dimensional Numerical Simulation of T-branch Pipelines, Which are Two Kinds of Different Flow Channel Forms. China Rural Water and Hydropower, Vol. 3 (2009), pp.59-62.

Google Scholar

[2] Zhenglin Zhu, Zhigao Xu, Hongxiang Xin. The performance optimization of the F-type three-way pipe. Electric Power, Vol. 39 (2006), pp.89-91.

Google Scholar

[3] Zhenglin Zhu, Zhigao Xu, Hongxiang Xin. The Performance Optimization of the T-type Three- way pipe. Journal of Nanjing Institute Of Technology(Natural Science Edition), Vol. 5 (2007), pp.60-63.

Google Scholar

[4] Shaozeng Hua, Xuening Yang, et al. translate and edit. Handbook of applied Hydraulic Resistances. National Defence Industry Press, (1985).

Google Scholar

[5] Xiuyun Qiu. Hydraulics [M]. Urumchi: Sinkiang Electronic Press, (2004).

Google Scholar

[6] Xiaoquan Zhou, Shuyou Cao, Lunfu Qu, et al. A new method to treat the periodic boundary condition in 3-D turbulent flow simulation of rotary machinery. Journal of Hydroelectric Engineering, Vol. 77 (2002), pp.78-84.

Google Scholar
