Microcrystal Growth in Heat-Treating Process for Europium Ions Doped Aluminosilicate Glasses

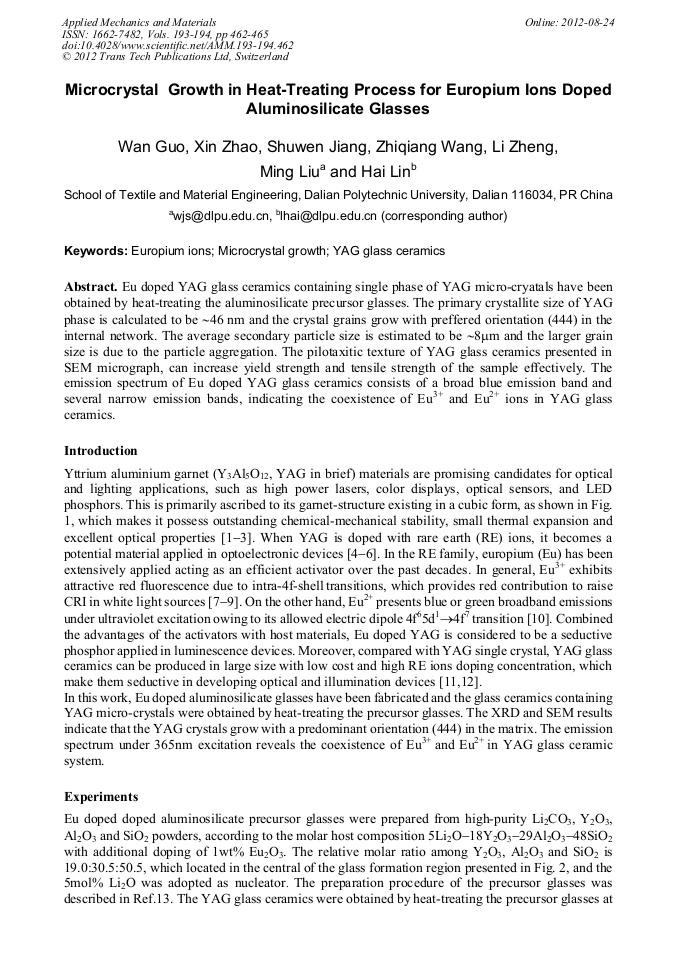

Abstract:

Eu doped YAG glass ceramics containing single phase of YAG micro-cryatals have been obtained by heat-treating the aluminosilicate precursor glasses. The primary crystallite size of YAG phase is calculated to be ~46 nm and the crystal grains grow with preffered orientation (444) in the internal network. The average secondary particle size is estimated to be ~8μm and the larger grain size is due to the particle aggregation. The pilotaxitic texture of YAG glass ceramics presented in SEM micrograph, can increase yield strength and tensile strength of the sample effectively. The emission spectrum of Eu doped YAG glass ceramics consists of a broad blue emission band and several narrow emission bands, indicating the coexistence of Eu³⁺ and Eu²⁺ ions in YAG glass ceramics.

• Periodical: Applied Mechanics and Materials (Volumes 193-194)
• Pages: 462-465
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.193-194.462
• Online since: August 2012
• Authors: Wan Guo, Xin Zhao, Shu Wen Jiang, Zhi Qiang Wang, Li Zheng, Ming Liu, Hai Lin
• Keywords: Europium Ions, Microcrystal Growth, YAG Glass Ceramics

References

[1] C.N. Xie, Z.M. Yang. Systhesis and characterization of mono-dispersed Y3Al5O12: Er3+-cocated nanoparticles by co-precipitation process. J. Nanopart. Res. 13 (2011) 347-354.

DOI: 10.1007/s11051-010-0036-x

[2] C.T. Wu, Y.L. Ju, Q. Wang, Z.G. Wang, B.Q. Yao, Y.Z. Wang. Injection-seeded Tm: YAG laser at room temperature. Opt. Commun. 284 (2011) 994-998.

DOI: 10.1016/j.optcom.2010.10.019

[3] W. Zhao, S. Anghel, C. Mancini, D. Amans, G. Boulon, T. Epicier, Y. Shi, X.Q. Feng, Y.B. Pan,V. Chani, A. Yoshikawa. Ce3+ doped segregation in Y3Al5O12 optical ceramics. Opt. Mater. 33 (2011) 684-687.

DOI: 10.1016/j.optmat.2010.10.007

[4] X.P. Qin, G.H. Zhou, H. Yang, J.I. Wong, J. Zhang, D.W. Luo, S.W. Wang, D.Y. Tang. Fabrication and plasma resistance properties of transparent YAG ceramics. Ceram. Int. 38 (2012) 2529-2535.

DOI: 10.1016/j.ceramint.2011.11.023

[5] W. Zhang, T.C. Lu, N. Wei, Y.Z. Wang, B.Y. Ma, F. Li, Z.W. Lu. Assessment of light scattering by pores in Nd: YAG transparent ceramics. J. Alloy. Compd. 520 (2012) 36-41.

DOI: 10.1016/j.jallcom.2011.12.012

[6] J.X. Meng, M.F. Zhang, Y.L. Liu, S.Q. Man. Hydrothermal preparation and luminescence of LaF3: Eu3+ nanooparticles. Spectrochim. Acta A 66 (2007) 81-85.

[7] S.K. Shi, J.Y. Wang. Combustion synthesis of Eu3+ activated Y3Al5O12 phosphor nanoparticles. J. Alloy. Compd. 327 (2001) 82-86.

[8] Y. Tian, B.J. Chen, R.N. Hua, J.S. Sun, L.H. Cheng, H.Y. Zhong, X.P. Li, J.S. Zhang, Y.F. Zheng, T.T. Yu, L.B. Huang, H.Q. Yu. Optical transition, electron-phonon coupling and fluorescent quenching of La2(MoO4)3: Eu3+ phosphor. J. Appl. Phys. 109 (2011).

DOI: 10.1063/1.3551584

[9] D.Q. Chen, Y.L. Yu, P. Huang, F.Y. Weng, H. Lin, Y.S. Wang. Optical spectroscopy of Eu3+ and Tb3+ doped glass ceramics containing LiYbF4 nanocrystals. Appl. Phys. Lett. 94 (2009) 0419091-0419093.

DOI: 10.1063/1.3076111

[10] J.L. Zhang, X.G. Zhang, M.L. Gong, J.X. Shi, L.P. Yu, C.Y. Rong, S.X. Lian. LiSrO3: Eu2+: A novel broadband phosphor under excitation of a blue light. Mater. Lett. 79 (2012) 100-102.

DOI: 10.1016/j.matlet.2012.04.011

[11] Y. Zhou, J. Lin, M. Yu, S. Wang. Comparative study on the luminescence properties of Y3Al5O12: RE3+ (RE: Eu, Dy) phosphors synthesized by three methods. J. Alloy. Compd. 375 (2004) 93-97.

DOI: 10.1016/j.jallcom.2003.10.057

[12] G.H. Liu, J.T. Li, S.B. Guo, X.S. Ning, Y.X. Chen. Melt-casting of Y3Al5O12 (YAG) ceramics by combustion synthesis under high gravity with the addition of glass. J. Alloy. Compd. 45 (2010) 1157-1161.

DOI: 10.1016/j.jallcom.2011.03.145

[13] L.F. Shen, X. Liu, B.J. Chen, E.Y.B. Pun, H. Lin. Dynamic colour and utilizable white fluorescence from Eu/Tb ions codoped lithium-yttrium-aluminium-silicate glasses. J. Phys. D: Appl. Phys. 45 (2012) 115301-115307.

DOI: 10.1088/0022-3727/45/11/115301
